RAM Double Ball Mount with 100x100mm VE
RAM Double Ball Mount with 100x100mm VE
Regular price
$163.99 USD
Regular price
Sale price
$163.99 USD
We have new inventory arriving weekly, If you see low or no inventory it may change tomorrow. Please call us at 1.800.789.0087 or email us at sales@custommounts.com for current inventory status.
Ball Size:
D size 2.25"
UPC:
793442916342
Mfg Part #:
RAM-D-101-NEC2U
Availability:
Out Of Stock
Part Number:
RAM-D-101-NEC2U
Quantity
Couldn't load pickup availability
Share
- Description
- Additional Info
- Components

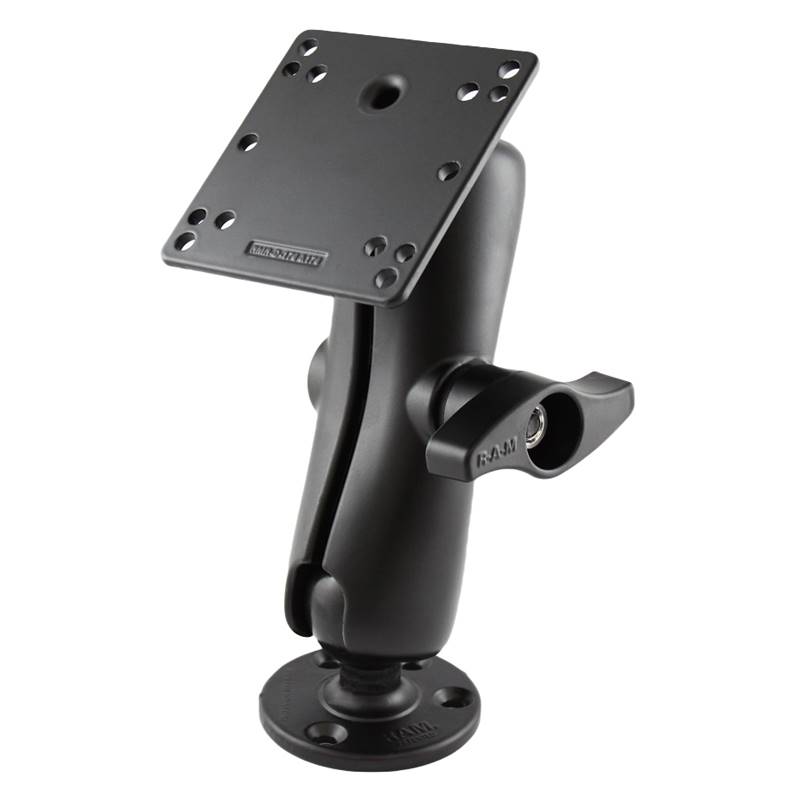

The RAM-D-101-NEC2U consists of a 3.68" diameter round base, STANDARD length double socket arm with
large knob and 4.75" square plate. The 3.68" diameter round base has pre-drilled holes, including
two holes at 180 degrees and three holes at 120 degrees. The 4.75" square plate contains 4x100mm
holes and 4x75mm holes in each corner. Designed into the mount is a 2.25" diameter patented rubber
ball and socket system with adjustment points at both socket ends of the arm.
PRODUCT DIMENSIONS
Overall Height: 11.125"
SOCKET-TO-SOCKET LENGTH
6.88"
HOLE PATTERN
See Drawings
BALL/SOCKET SIZE
D Size (2.25")
WEIGHT CAPACITY
6 lbs
MATERIALS
Marine-grade aluminum
PACKAGING TYPE
Poly Bag
WEIGHT
3.62 lbs.
large knob and 4.75" square plate. The 3.68" diameter round base has pre-drilled holes, including
two holes at 180 degrees and three holes at 120 degrees. The 4.75" square plate contains 4x100mm
holes and 4x75mm holes in each corner. Designed into the mount is a 2.25" diameter patented rubber
ball and socket system with adjustment points at both socket ends of the arm.
PRODUCT DIMENSIONS
Overall Height: 11.125"
SOCKET-TO-SOCKET LENGTH
6.88"
HOLE PATTERN
See Drawings
BALL/SOCKET SIZE
D Size (2.25")
WEIGHT CAPACITY
6 lbs
MATERIALS
Marine-grade aluminum
PACKAGING TYPE
Poly Bag
WEIGHT
3.62 lbs.
- Material:Powder Coated Marine Grade Aluminum
- Ball Size:D Size 2.25" Rubber Ball
- Weight Capacity:Up to 6 lbs
- Note:The "U" in the part number reflects product packaged in poly bag.
- Weight:3.62 lbs.
