RAM-D-101U-E_RAM Double Ball Mount with Two Large Round
RAM-D-101U-E_RAM Double Ball Mount with Two Large Round
Regular price
$177.49 USD
Regular price
Sale price
$177.49 USD
We have new inventory arriving weekly, If you see low or no inventory it may change tomorrow. Please call us at 1.800.789.0087 or email us at sales@custommounts.com for current inventory status.
Ball Size:
D size 2.25"
UPC:
793442310157
Mfg Part #:
RAM-D-101U-E
Availability:
In Stock
Part Number:
RAM-D-101U-E
Quantity
Couldn't load pickup availability
Share
- Description
- Additional Info
- Components

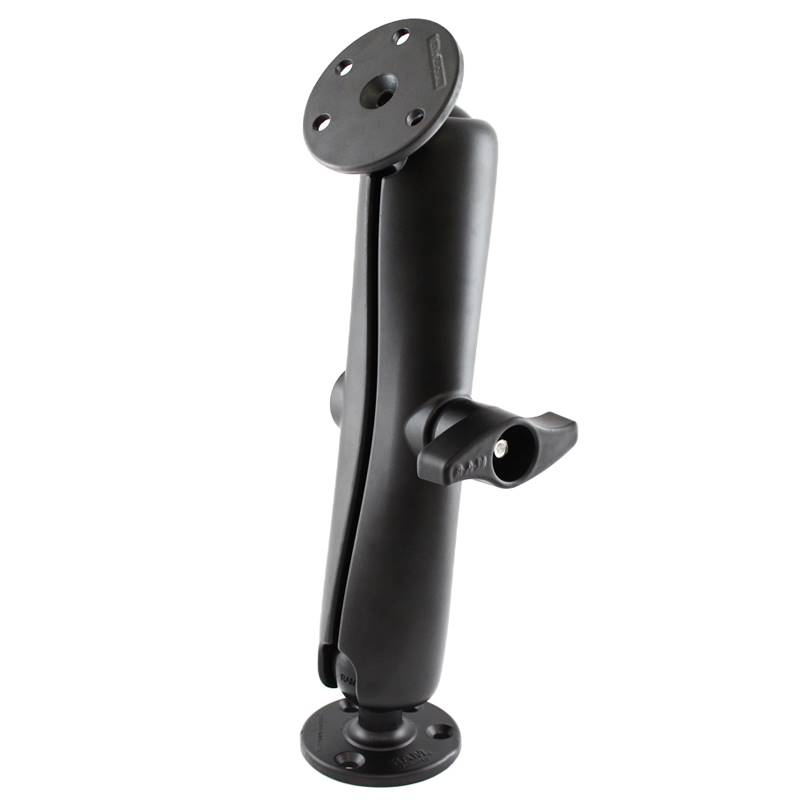

The RAM-D-101U consists of (2 qty) 3.68" diameter round bases and LONG length double socket arm. The
3.68" diameter round bases have pre-drilled holes, including two holes at 180 degrees and three
holes at 120 degrees. Designed into the mount is a 2.25" diameter patented rubber ball and socket
system with adjustment points at both socket ends of the arm.
PRODUCT DIMENSIONS
Overall Height: 15.5"
SOCKET-TO-SOCKET LENGTH
11.41"
HOLE PATTERN
See Drawing
BALL/SOCKET SIZE
D Size (2.25")
WEIGHT CAPACITY
6 lbs
MATERIALS
Marine-grade aluminum
PACKAGING TYPE
Poly Bag
WEIGHT
5.2 lbs.
3.68" diameter round bases have pre-drilled holes, including two holes at 180 degrees and three
holes at 120 degrees. Designed into the mount is a 2.25" diameter patented rubber ball and socket
system with adjustment points at both socket ends of the arm.
PRODUCT DIMENSIONS
Overall Height: 15.5"
SOCKET-TO-SOCKET LENGTH
11.41"
HOLE PATTERN
See Drawing
BALL/SOCKET SIZE
D Size (2.25")
WEIGHT CAPACITY
6 lbs
MATERIALS
Marine-grade aluminum
PACKAGING TYPE
Poly Bag
WEIGHT
5.2 lbs.
- Material:Powder Coated Marine Grade Aluminum
- Ball Size:D Size 2.25" Rubber Ball
- Weight Capacity:Up to 6 lbs
- Note:The "U" in the part number reflects product packaged in poly bag.
- Weight:5.2 lbs.
