RAM-D-111-KNOB9HU_RAM Large Marine Electronics Mount wi

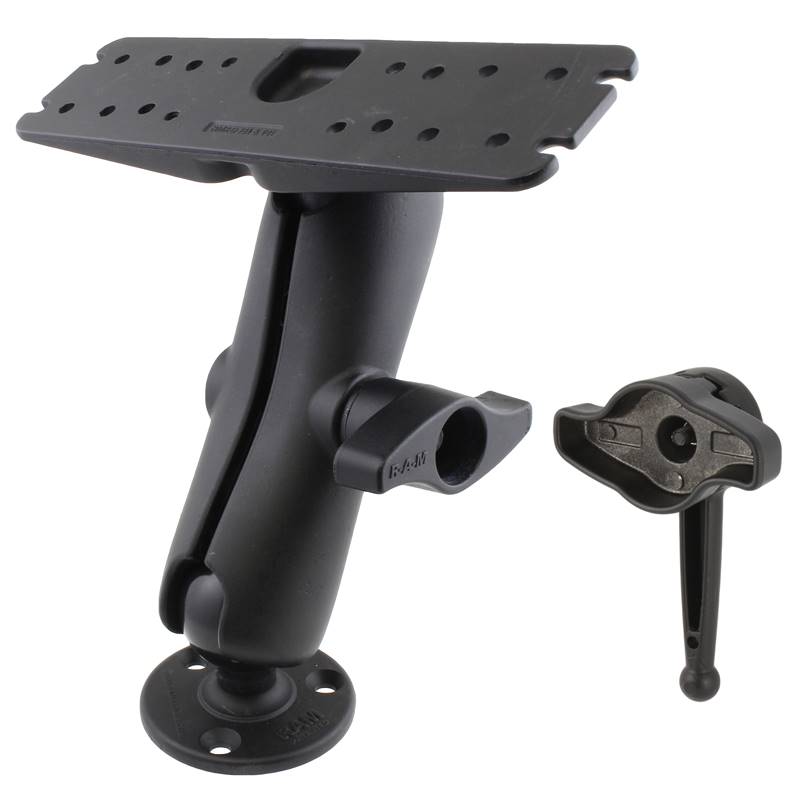

The RAM-D-111-KNOB9HU consists of a 3.68" diameter round base, STANDARD length double socket arm and
11" x 3" rectangular plate. The round base contains pre-drilled holes, including two holes at 180
degrees and three holes at 120 degrees. The rectangle plate contains different combinations of pre-
drilled holes which will match up to many electronic devices and mounts, including Marine GPS, CB
Radios, Ham Radios, Gimbal Brackets and more. Included with this mount is the RAM Hi-Torq Wrench;
designed to be used with the knob found on "D" size ball arms and mounts. The wrench matches the
shape of the knob and lets you give the arm an extra tight grip. This wrench was originally made for
the military when using the RAM mounts in cold weather, and the knob could not be tightened by hand.

HARDWARE INCLUDED
(4) .312" x .187" Shoulder Washers

PRODUCT DIMENSIONS
Overall Height: 11.5"

SOCKET-TO-SOCKET LENGTH
6.88"

HOLE PATTERN
See Drawings

PLATE SIZE
Top Plate: 3" x 11"
Bottom Plate: 3.68" Diameter

BALL/SOCKET SIZE
D Size (2.25")

WEIGHT CAPACITY
6 lbs

MATERIALS
Marine-grade aluminum

PACKAGING TYPE
Poly Bag

ADDITIONAL INFORMATION
The 11" x 3" rectangle base is a universal mounting bracket with a selection of mounting hole
locations. In certain applications additional holes may need to be drilled for proper fit with your
electronic device.

WEIGHT
5.05 lbs.
