RAM Large Marine Electronics Mount with J
RAM Large Marine Electronics Mount with J
Regular price
$181.99 USD
Regular price
Sale price
$181.99 USD
We have new inventory arriving weekly, If you see low or no inventory it may change tomorrow. Please call us at 1.800.789.0087 or email us at sales@custommounts.com for current inventory status.
Ball Size:
D size 2.25"
UPC:
793442903861
Mfg Part #:
RAM-D-111-MIU
Availability:
Out Of Stock
Part Number:
RAM-D-111-MIU
Quantity
Couldn't load pickup availability
Share
- Description
- Additional Info
- Components

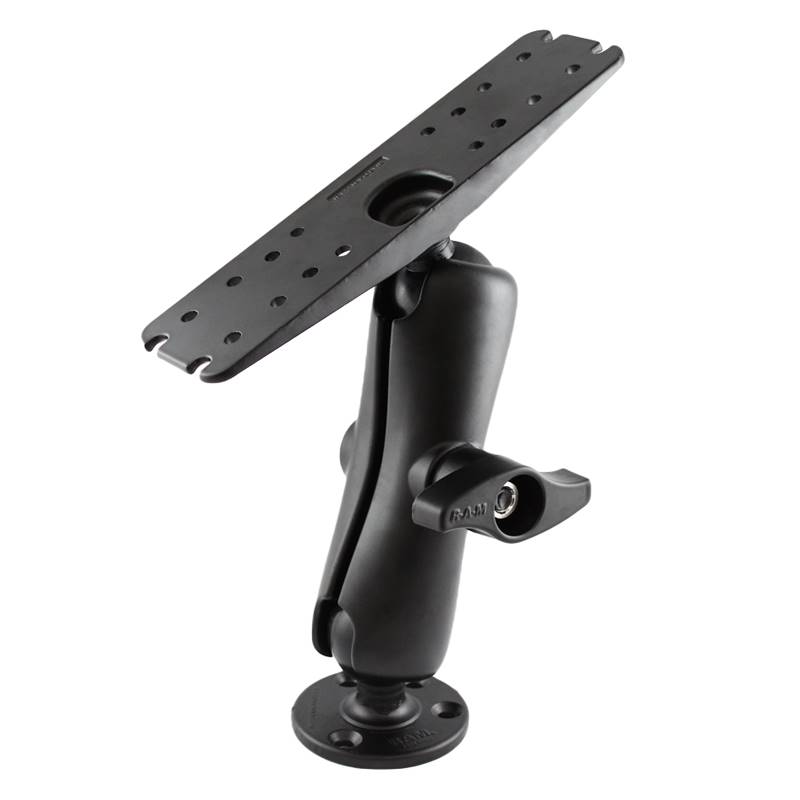

The RAM-D-111-MIU consists of a 3.68" diameter round base, STANDARD LENGTH double socket arm, jam
nut and 11" x 3" rectangular base. The round base contains pre-drilled holes, including two holes at
180 degrees and three holes at 120 degrees. The rectangle base contains different combinations of
pre-drilled holes which will match up to many electronic devices and mounts, including Marine GPS,
CB Radios, Ham Radios, Gimbal Brackets and more.
PRODUCT DIMENSIONS
Overall Height: 11.5"
SOCKET-TO-SOCKET LENGTH
6.88"
HOLE PATTERN
See Drawings
PLATE SIZE
Top Plate: 3" x 11"
Bottom Plate: 3.68" Diameter
BALL/SOCKET SIZE
D Size (2.25")
WEIGHT CAPACITY
6 lbs
MATERIALS
Marine-grade aluminum
PACKAGING TYPE
Poly Bag
ADDITIONAL INFORMATION
The 11" x 3" rectangle base is a universal mounting bracket with a selection of mounting hole
locations. In certain applications additional holes may need to be drilled for proper fit with your
electronic device.
WEIGHT
4.29 lbs.
nut and 11" x 3" rectangular base. The round base contains pre-drilled holes, including two holes at
180 degrees and three holes at 120 degrees. The rectangle base contains different combinations of
pre-drilled holes which will match up to many electronic devices and mounts, including Marine GPS,
CB Radios, Ham Radios, Gimbal Brackets and more.
PRODUCT DIMENSIONS
Overall Height: 11.5"
SOCKET-TO-SOCKET LENGTH
6.88"
HOLE PATTERN
See Drawings
PLATE SIZE
Top Plate: 3" x 11"
Bottom Plate: 3.68" Diameter
BALL/SOCKET SIZE
D Size (2.25")
WEIGHT CAPACITY
6 lbs
MATERIALS
Marine-grade aluminum
PACKAGING TYPE
Poly Bag
ADDITIONAL INFORMATION
The 11" x 3" rectangle base is a universal mounting bracket with a selection of mounting hole
locations. In certain applications additional holes may need to be drilled for proper fit with your
electronic device.
WEIGHT
4.29 lbs.
Dimensions:
- Overall Length: 11.5"
- Material:Powder Coated Marine Grade Aluminum
- Ball Size:D Size 2.25" Rubber Ball
- Weight Capacity:Up to 6 pounds
- Note:The "U" in the part number reflects product packaged in poly bag. Drilling may be required to mount to the various gimble brackets. The included plate is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.
- Weight:4.29 lbs.
