RAM-D-111BU_RAM Large Marine Electronics Ball Adapter -
RAM-D-111BU_RAM Large Marine Electronics Ball Adapter -
Regular price
$56.49 USD
Regular price
Sale price
$56.49 USD
We have new inventory arriving weekly, If you see low or no inventory it may change tomorrow. Please call us at 1.800.789.0087 or email us at sales@custommounts.com for current inventory status.
Ball Size:
D size 2.25"
UPC:
793442211119
Mfg Part #:
RAM-D-111BU
Availability:
Out Of Stock
Part Number:
RAM-D-111BU
Quantity
Couldn't load pickup availability
Share
- Description
- Additional Info
- Components

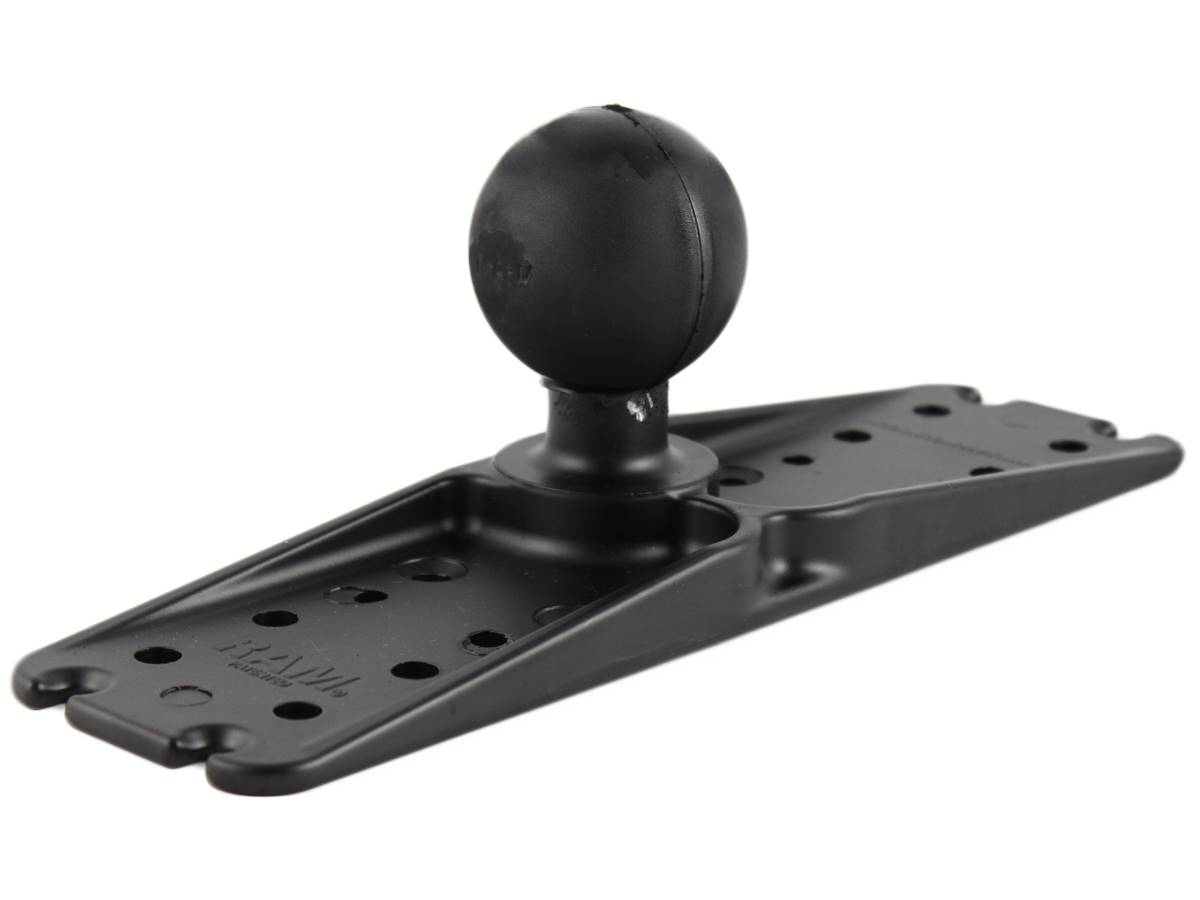

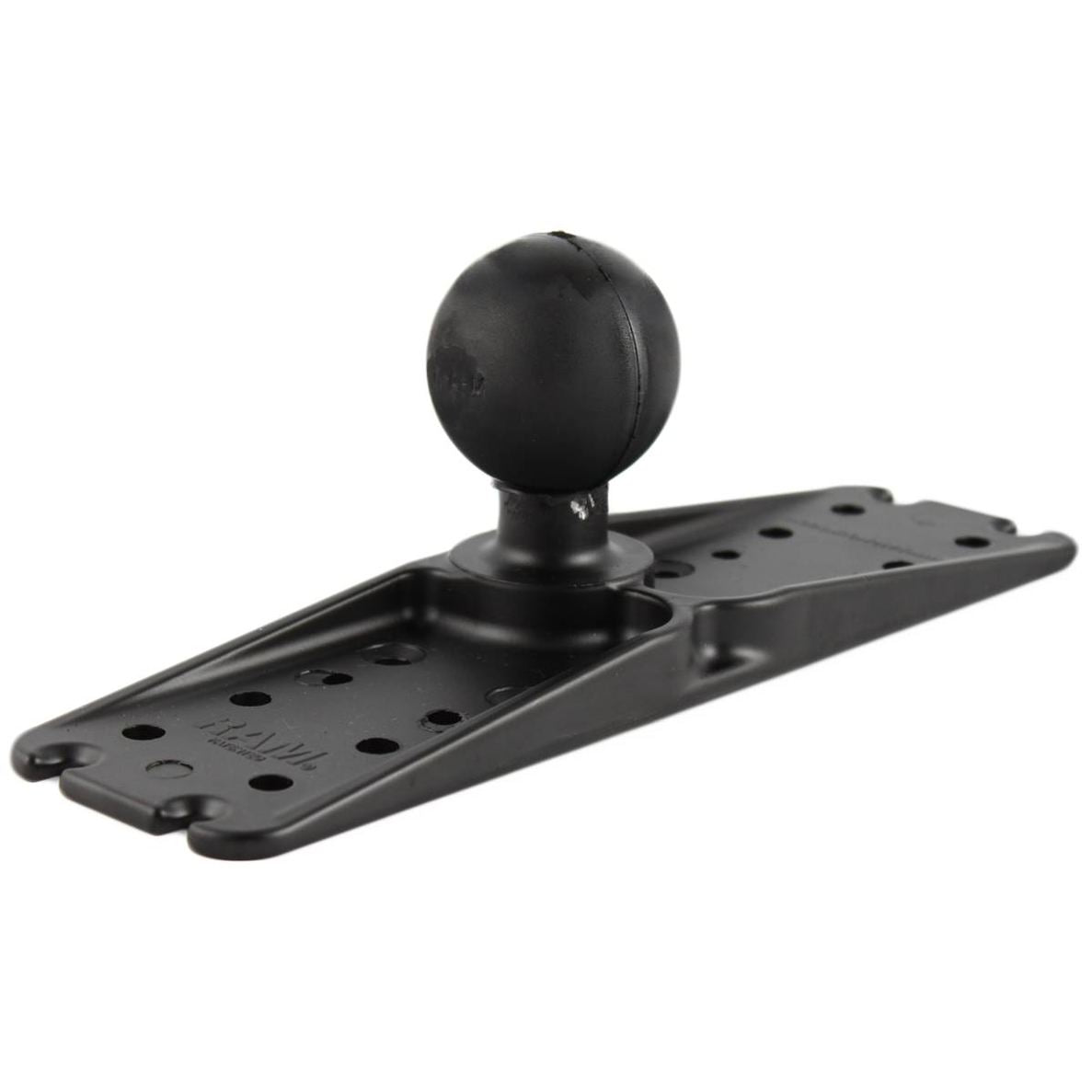

The RAM-D-111BU, universal mounting plate, consists of a 2.25" diameter rubber ball, connected at
right angles to a flat 11 x 3" rectangular plate. The plate contains different combinations of pre-
drilled holes which will match up to many electronic devices.
HARDWARE INCLUDED
(4) .312" x .187" Shoulder Washers
HOLE PATTERN
See Drawing
PLATE SIZE
3" x 11"
BALL/SOCKET SIZE
D Size (2.25")
WEIGHT CAPACITY
6 lbs
MATERIALS
Marine-grade aluminum
PACKAGING TYPE
Poly Bag
ADDITIONAL INFORMATION
The 11" x 3" rectangle base is a universal mounting bracket with a selection of mounting hole
locations. In certain applications additional holes may need to be drilled for proper fit with your
electronic device.
WEIGHT
1.3 lbs.
right angles to a flat 11 x 3" rectangular plate. The plate contains different combinations of pre-
drilled holes which will match up to many electronic devices.
HARDWARE INCLUDED
(4) .312" x .187" Shoulder Washers
HOLE PATTERN
See Drawing
PLATE SIZE
3" x 11"
BALL/SOCKET SIZE
D Size (2.25")
WEIGHT CAPACITY
6 lbs
MATERIALS
Marine-grade aluminum
PACKAGING TYPE
Poly Bag
ADDITIONAL INFORMATION
The 11" x 3" rectangle base is a universal mounting bracket with a selection of mounting hole
locations. In certain applications additional holes may need to be drilled for proper fit with your
electronic device.
WEIGHT
1.3 lbs.
Dimensions:
- Overall Length: 11.5"
- Material:Powder Coated Marine Grade Aluminum
- Ball Size:D Size 2.25" Rubber Ball
- Weight Capacity:Up to 6 pounds
- Note:The "U" in the part number reflects product packaged in poly bag. This plate is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.
- Weight:1.3 lbs.
RAP-WASHS2-4U
