RAM Large Marine Electronics Mount wit
RAM Large Marine Electronics Mount wit
Regular price
$150.99 USD
Regular price
Sale price
$150.99 USD
We have new inventory arriving weekly, If you see low or no inventory it may change tomorrow. Please call us at 1.800.789.0087 or email us at sales@custommounts.com for current inventory status.
Ball Size:
D size 2.25"
UPC:
793442921742
Mfg Part #:
RAM-D-111U-C-MI1
Availability:
Out Of Stock
Part Number:
RAM-D-111U-C-MI1
Quantity
Couldn't load pickup availability
Share
- Description
- Additional Info
- Components

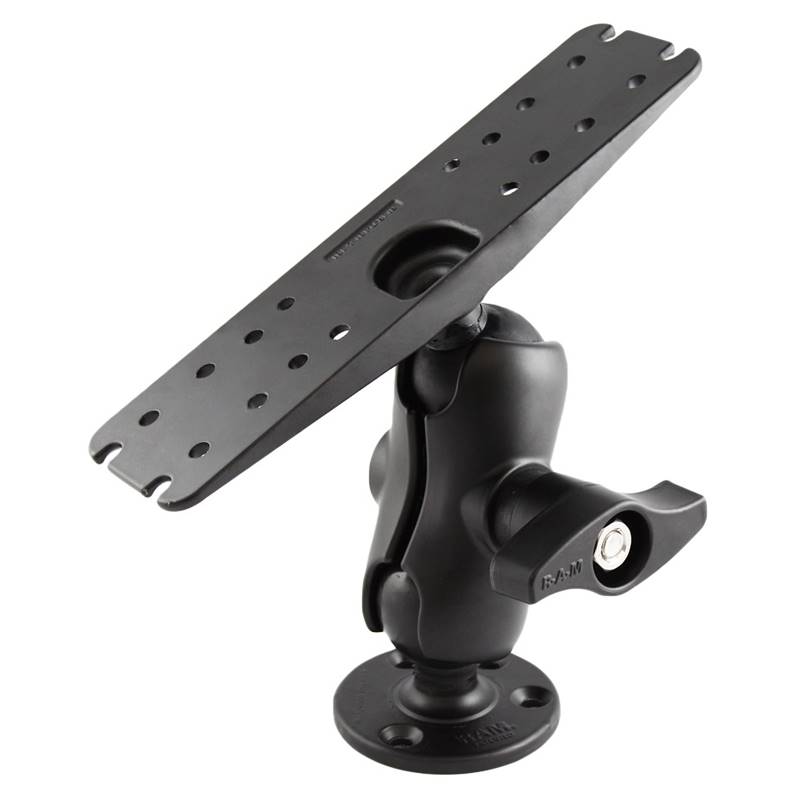

The RAM-D-111U-C-MI1 consists of a 3.68" diameter round base, SHORT double socket arm with jam nut 2
way lock and 11" x 3" rectangular base. The round base contains pre-drilled holes, including two
holes at 180 degrees and three holes at 120 degrees. The rectangle base contains different
combinations of pre-drilled holes which will match up to many electronic devices and mounts,
including Marine GPS, CB Radios, Ham Radios, Gimbal Brackets and more.
PRODUCT DIMENSIONS
Overall Length: 8.125"
SOCKET-TO-SOCKET LENGTH
3.6"
HOLE PATTERN
See Drawings
PLATE SIZE
Top Plate: 3" x 11"
Bottom Plate: 3.68" Diameter
BALL/SOCKET SIZE
D Size (2.25")
WEIGHT CAPACITY
6 lbs
MATERIALS
Marine-grade aluminum
PACKAGING TYPE
Poly Bag
ADDITIONAL INFORMATION
The 11" x 3" rectangle base is a universal mounting bracket with a selection of mounting hole
locations. In certain applications additional holes may need to be drilled for proper fit with your
electronic device.
WEIGHT
3.6 lbs.
way lock and 11" x 3" rectangular base. The round base contains pre-drilled holes, including two
holes at 180 degrees and three holes at 120 degrees. The rectangle base contains different
combinations of pre-drilled holes which will match up to many electronic devices and mounts,
including Marine GPS, CB Radios, Ham Radios, Gimbal Brackets and more.
PRODUCT DIMENSIONS
Overall Length: 8.125"
SOCKET-TO-SOCKET LENGTH
3.6"
HOLE PATTERN
See Drawings
PLATE SIZE
Top Plate: 3" x 11"
Bottom Plate: 3.68" Diameter
BALL/SOCKET SIZE
D Size (2.25")
WEIGHT CAPACITY
6 lbs
MATERIALS
Marine-grade aluminum
PACKAGING TYPE
Poly Bag
ADDITIONAL INFORMATION
The 11" x 3" rectangle base is a universal mounting bracket with a selection of mounting hole
locations. In certain applications additional holes may need to be drilled for proper fit with your
electronic device.
WEIGHT
3.6 lbs.
Dimensions:
- Overall Length: 11.5"
- Material:Powder Coated Marine Grade Aluminum
- Ball Size:D Size 2.25" Rubber Ball
- Weight Capacity:Up to 6 lbs
- Note:The "U" in the part number reflects product packaged in poly bag. The 11" x 3" rectangle base is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device. For an extra tight grip, RAM recommends the RAM-KNOB9HU handle wrench. The RAM handle wrench is designed to be used with the knob found on "D" size ball arms and mounts. The wrench matches the shape of the knob found on the side of "D" arms, and lets you give the arm an extra tight grip. This wrench was originally made for the military when using the RAM mounts in cold weather, and the knob could not be tightened by hand.
- Weight:3.6 lbs.
