RAM Large Marine Electronics Mount - D Size

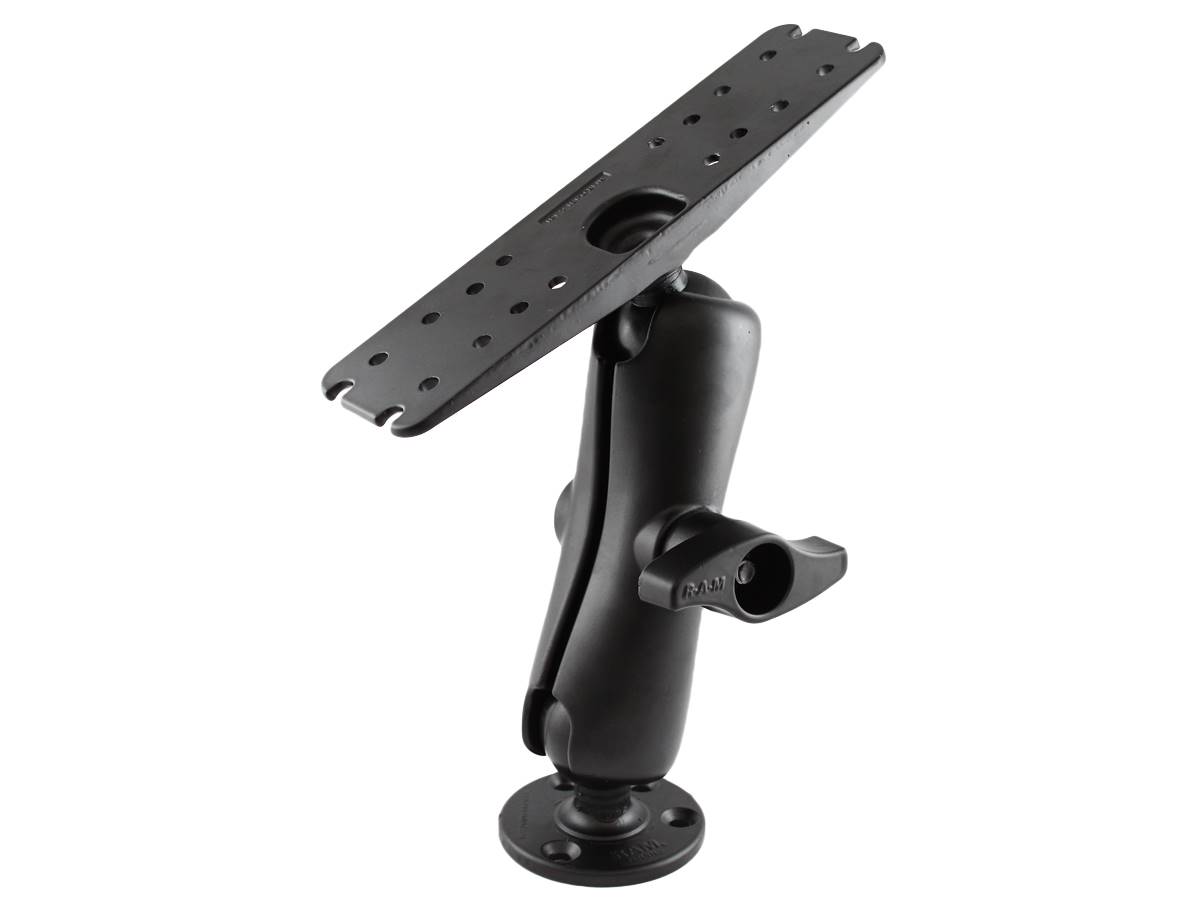

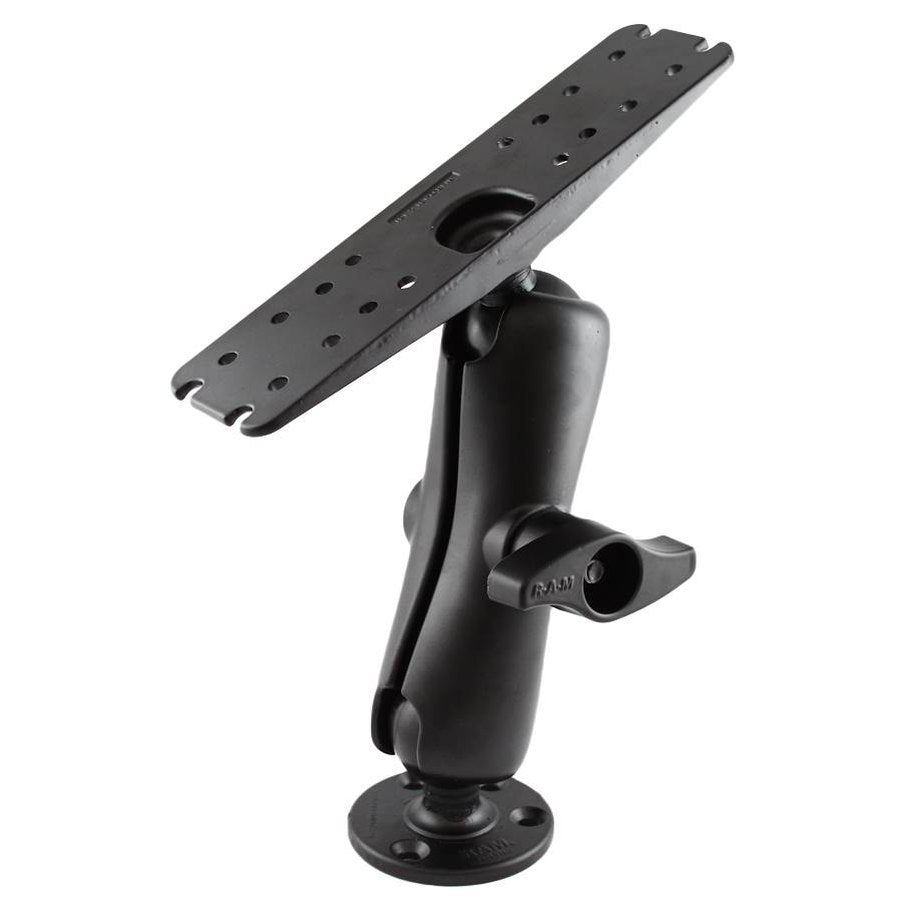

The RAM-D-111U consists of a medium double socket arm, 3.68" diameter round base, and 11" x 3"
rectangle base. The round base includes a 2.25" D size rubber ball and contains pre-drilled holes,
including the universal AMPS hole pattern. The rectangle base also includes a 2.25" D size rubber
ball and contains a variety of pre-drilled holes that are compatible with several large marine
electronic devices, including fishfinders and chartplotters.

HARDWARE INCLUDED
(4) .312" x .187" Shoulder Washers

PRODUCT DIMENSIONS
Overall Height: 11.5"

SOCKET-TO-SOCKET LENGTH
6.88"

HOLE PATTERN
See Drawings

PLATE SIZE
Top Plate: 3" x 11"
Bottom Plate: 3.68" Diameter

BALL/SOCKET SIZE
D Size (2.25")

WEIGHT CAPACITY
6 lbs

MATERIALS
Marine-grade aluminum

PACKAGING TYPE
Poly Bag

ADDITIONAL INFORMATION
The 11" x 3" rectangle base is a universal mounting bracket with a selection of mounting hole
locations. In certain applications additional holes may need to be drilled for proper fit with your
electronic device.

FEATURES:
Complete flat surface, drill-down mounting solution for large marine electronics with an overall
height of 11.5"

RAM Mounts ball and socket technology allows for near-infinite adjustability

Made of power-coated, marine-grade aluminum for durability and reliability in the most demanding
marine environments

Backed by a lifetime warranty


WEIGHT
4.47 lbs.
