RAM Marine Electronics Mount with RA

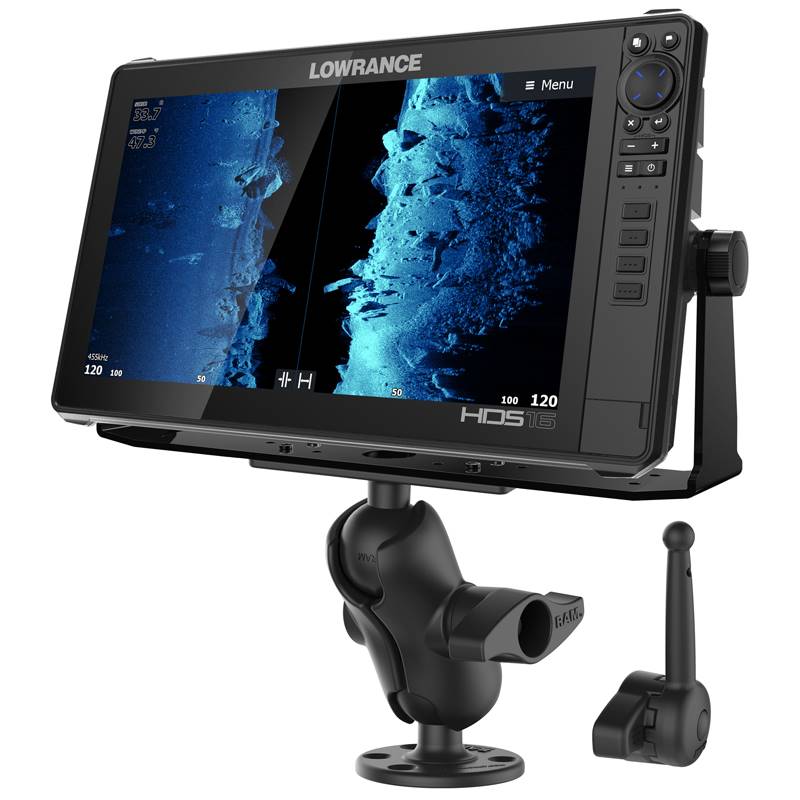

The RAM-D-115-C-KNOB9H consists of a base with a 2.25” diameter D size ball, a short arm, a Hi-Torq
wrench and a 6.25” x 2” marine electronic plate with a D size ball for supporting larger devices.
This marine electronic plate contains different combinations of pre-drilled holes and is a direct
fit for 9”-12” fishfinder gimbal brackets. For cold weather environments, the included Hi-Torq
wrench helps to tighten the knob on the arm for a secure hold. Supports devices such as the Lowrance
HDS-9 Gen2 Touch, Garmin GPSMAP 7407 and more.

PRODUCT DIMENSIONS
Overall Height: 7.325"

SOCKET-TO-SOCKET LENGTH
3.6"

HOLE PATTERN
See Drawings

PLATE SIZE
Top Plate: 6.25" x 2"
Bottom Plate: 3.68" Diameter

BALL/SOCKET SIZE
D Size (2.25")

WEIGHT CAPACITY
6 lbs

MATERIALS
Marine-grade aluminum

PACKAGING TYPE
Retail bag

ADDITIONAL INFORMATION
The 6.25" x 2" rectangle base is a universal mounting bracket with a selection of mounting hole
locations. In certain applications additional holes may need to be drilled for proper fit with your
electronic device.

WEIGHT
2.88 lbs.
