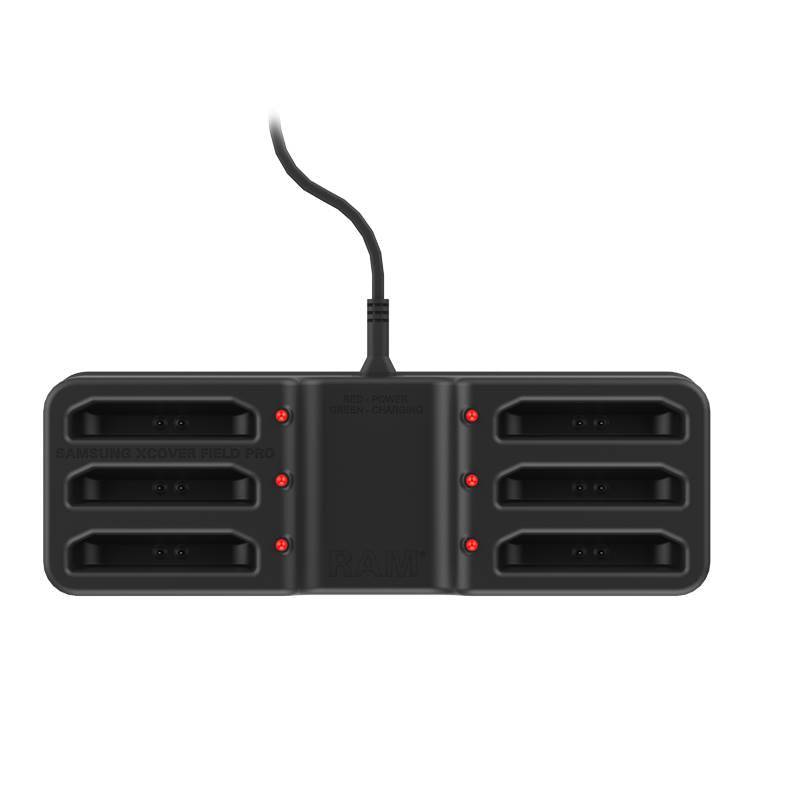

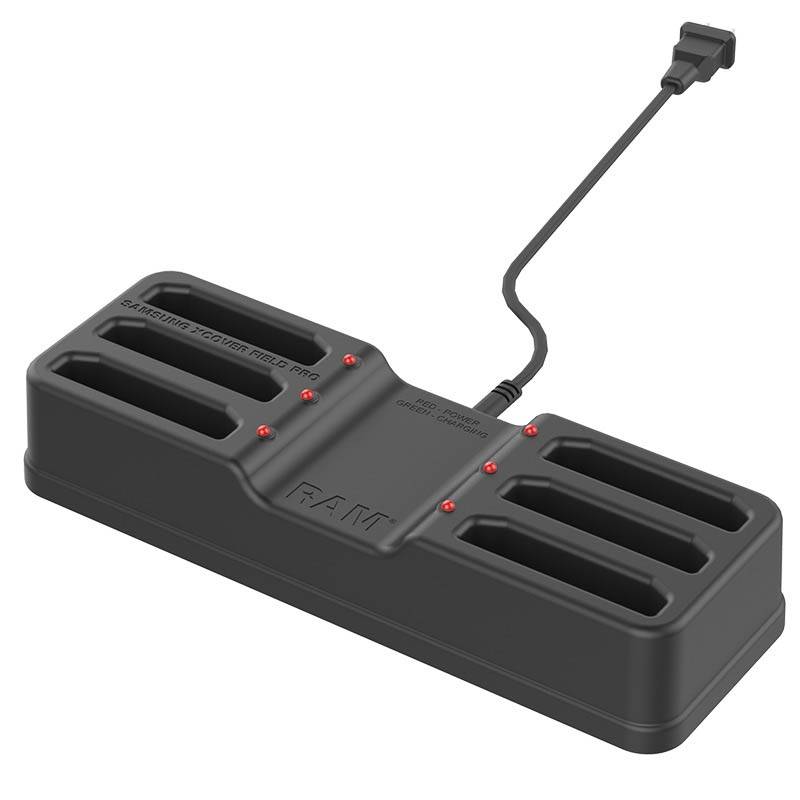

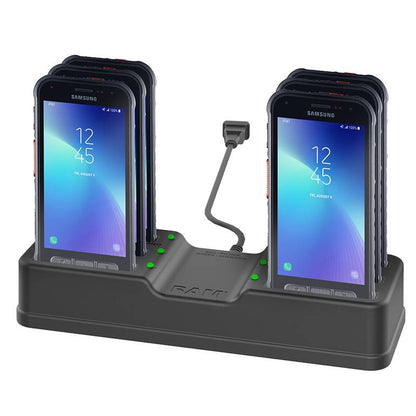

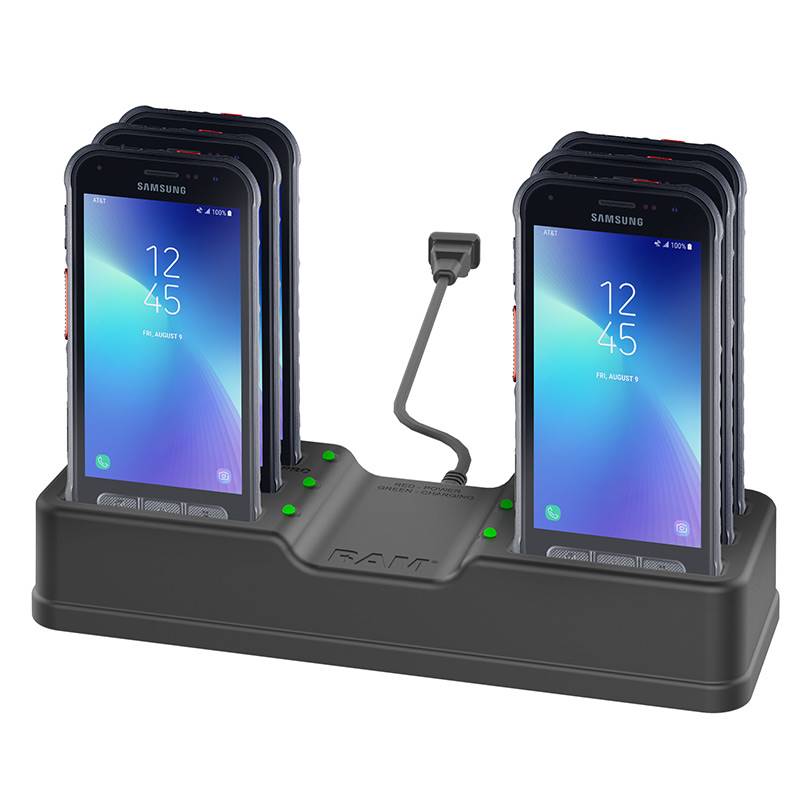

RAM 6-Port Charging Dock for Samsun

Ideal for transportation and large fleet vehicles, this bundle is all
you need to pair with your new Samsung Galaxy Tab A 8.0 (2019). This bundle includes non-locking
GDS Tough-Dock , IntelliSkin Next Gen for Samsung Galaxy Tab A 8.0
(2019), hardwire charger with USB Type A connector, C Size double ball mount with short arm, mUSB
extension cord, backing plate adapter and cable clamp. This bundle is also ELD compliant providing a
turnkey solution for your fleet.

FEATURES

Bundle includes non-locking GDS Tough-Dock , IntelliSkin Next Gen for Samsung Galaxy Tab A 8.0 (2019), hardwire charger with USB Type A connector, low-profile double ball mount with C size (1.5 INCHES) ball, mUSB extension cable, backing plate adapter and cable clamp

Dock features GDS Technology for charging capabilities; uses 1.2 meter cable and mUSB port to connect to power

RAM Mounts Compatible and compatible with the GDS Hand-Stand Hand Strap and Kick Stand attachment

Backed by a 3-year warranty

Hardware Included
Assembly Hardware (1) 3 INCHES x 3 INCHES Steel Backing Plate (4) #10-24 x 1 INCHES Thread
Locking Screws (4) #10-24 Nylock Nuts (1) mUSB Cable Clamp (1) USB Type-A Cable Clamp
(1) 1.2 Meter mUSB Cable (1) Vehicle Hardwire Charger

Socket-to-Socket Length
2.5 INCHES

Hole Pattern
4-Hole AMPS: 1.181 INCHES x 1.496 INCHES 3-Hole 120-Degree: 1.812 INCHES Diameter

Ball/Socket Size
C Size (1.5 INCHES)

Materials
Steel Marine-grade aluminum High strength composite

Packaging Type
Poly Bag

Output Voltage
5V - 12V @ 2A

Input Connector
mUSB 2.0 Female

Compliance
Over Voltage Protection Short Circuit Protection Reverse Polarity Protection
RoHS Compliance WEEE Compliance SAE J-1113-5 Load Dump (Transient Voltage) Moisture
Resistant

Certifications
CE Certification e-Mark Certification RCM Certification FCC Certification

Warranty Status
3 year warranty

Additional Information
mUSB products supporting USB 2.0/3.0 will have a max current of 1.67A
