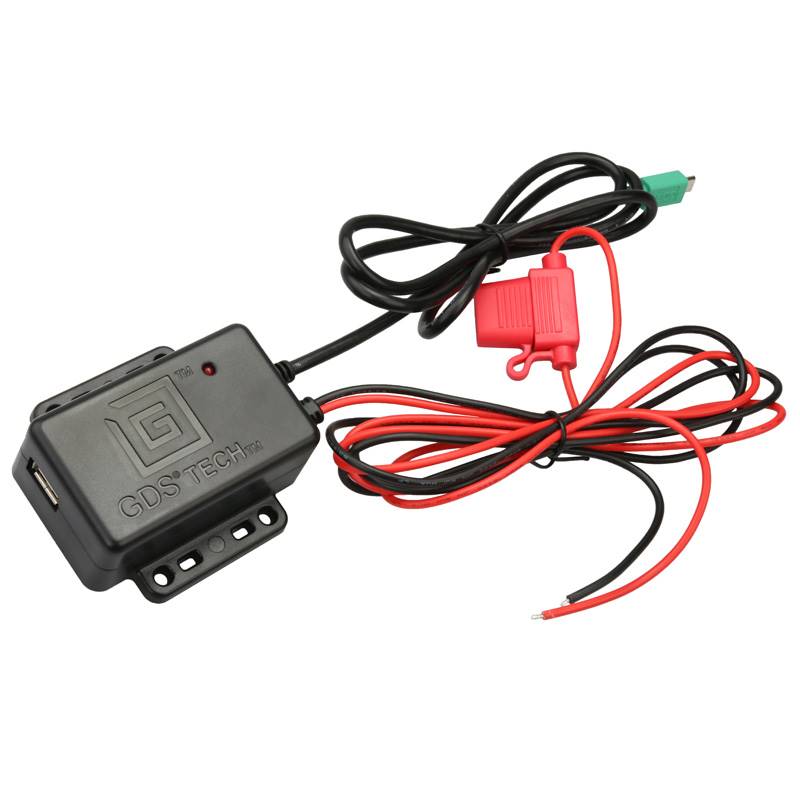

GDS Hardwire Charger with mUSB Plu

Leveraging the USB 2.0 OTG mode, the RAM-GDS-CHARGE-OTGAU adapter enables phones and tablets to
charge and utilize the OTG accessory mode at the same time. This allows for the use of accessories
such as keyboards, a mouse, USB 2.0 Flash drive, barcode scanners, printers, and other devices
supported in the USB-IF OTG specification. Eliminating the need for a separate charger, the adapter
allows the tablet to be in both host mode and accept a charge of up to 1.67A (at ~5V). The internal
charger supports USB 2.0 BC1.2 mode as a DCP mode charger to the host device. The adapter solves the
desire to support peripherals and charge through the single Micro-USB port on the host device.

PACKAGING TYPE
Poly Bag

INPUT RANGE
8V - 40V DC

OUTPUT VOLTAGE
5VDC

OUTPUT CURRENT
2.5A max

OUTPUT CONNECTOR TYPE
Male mUSB 2.0

TRANSFER SPEED
USB 2.0 480Mbps (peripheral port speed)

INPUT CABLE LENGTH
1.2 Meters

OUTPUT CABLE LENGTH
1 Meter

OPERATING TEMPERATURE
-30°C to +70°C

STORAGE TEMPERATURE
-40°C to +85°C

PORTS
USB 2.0 Type-A (on housing)

COMPLIANCE
Over Voltage Protection (OVP), Integrated Short Circuit Protection (SCP)

CERTIFICATIONS
FCC, Industry Canada, CS, RCM, WEEE, e-Mark, and RoHS Compliant
USB 2.0 BC 1.2 DCP Support

WARRANTY STATUS
3 year warranty

ADDITIONAL INFORMATION
Tablet Compatibility¹: Samsung Galaxy Tab A (8.0”, 9.7”, 10.1?) Samsung Galaxy Tab E (8.0”)²
Samsung Galaxy Tab E (9.6”) Samsung Galaxy Tab S2 (8.0?, 9.7?) Samsung Galaxy Tab 4 (8.0?, 10.1?)
Samsung Galaxy Tab S (8.4?, 10.5?) ¹This list is not complete, yet contains tablets that have been
tested. There might be changes or previous / subsequent modifications made by the OEM to the listed
product that might reduce or eliminate compatibility without notice. ²Supports up to the SM-T377W
