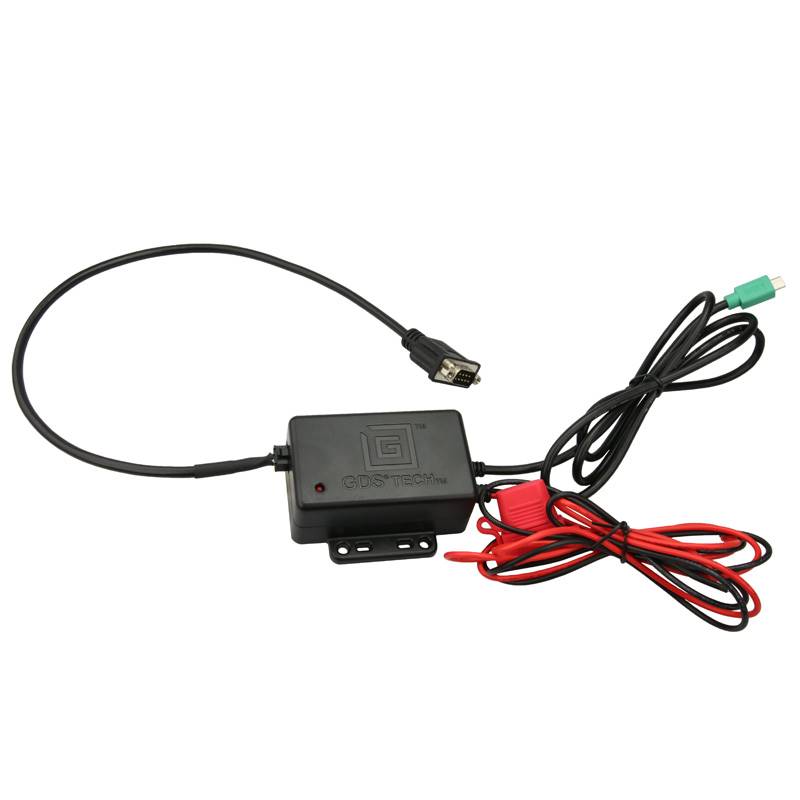

GDS Hardwire Charger with mUSB Pl

Leveraging the USB 2.0 OTG mode, the RAM-GDS-CHARGE-RS232U adapter combines two functions that are
critical to enabling ELD and telematics solutions with commercially available tablet form factors.
The ability to charge a host device ¬– that supports the OTG embedded (FTDI and Prolific) drivers
while communicating to RS232 devices – also allows a tablet or phone to become enabled for
applications that require charging and peripherals at the same time. This adapter allows the tablet
to be in both host mode and accept a charge of up to 1.67A (at ~5V), eliminating the need for a
separate charger. The internal charger supports USB 2.0 BC1.2 mode as a DCP mode charger to the host
device. The adapter supports attached RS232 (serial) devices to communicate information such as
engine data, streaming location data, driver ID information, and much more. This charger has a Molex
connector on it and includes a Molex to serial cable.

PACKAGING TYPE
Poly Bag

INPUT RANGE
8V - 40V DC

OUTPUT VOLTAGE
5VDC

OUTPUT CURRENT
2.5A max

OUTPUT CONNECTOR TYPE
Male mUSB 2.0
.5 Meter Molex Micro-Fit 3.0 Female to RS232 DB9 pin serial cable - VCC, GND, RTS, CTS, TXD, RXD Signals

TRANSFER SPEED
Up to 115200bps

INPUT CABLE LENGTH
1.2 Meters

OUTPUT CABLE LENGTH
1 Meter

OPERATING TEMPERATURE
-30°C to +70°C

STORAGE TEMPERATURE
-40°C to +85°C

PORTS
Molex MIcro-Fit 3.0 3x2 6 Position Male Connector (on housing)

COMPLIANCE
Over Voltage Protection (OVP), Integrated Short Circuit Proetection (SCP)

CERTIFICATIONS
FCC, Industry Canada, CE, RCM, WEEE, e-Mark, and RoHS Compliant
USB 2.0 BC 1.2 DCP Support
FTDI WHQL or Android Driver Compatible
FTDI USB to RS232 FT232RL Converter
ZT213LEEA Serial Driver

WARRANTY STATUS
3 year warranty

ADDITIONAL INFORMATION
Tablet Compatibility¹: Samsung Galaxy Tab A (8.0”, 9.7”, 10.1?) Samsung Galaxy Tab E (8.0”)²
Samsung Galaxy Tab E (9.6”) Samsung Galaxy Tab S2 (8.0?, 9.7?) Samsung Galaxy Tab 4 (8.0?, 10.1?)
Samsung Galaxy Tab S (8.4?, 10.5?) ¹This list is not complete, yet contains tablets that have been
tested. There might be changes or previous / subsequent modifications made by the OEM to the listed
product that might reduce or eliminate compatibility without notice. ²Supports up to the SM-T377W
