GDS Modular 30-64V Hardwire Ch

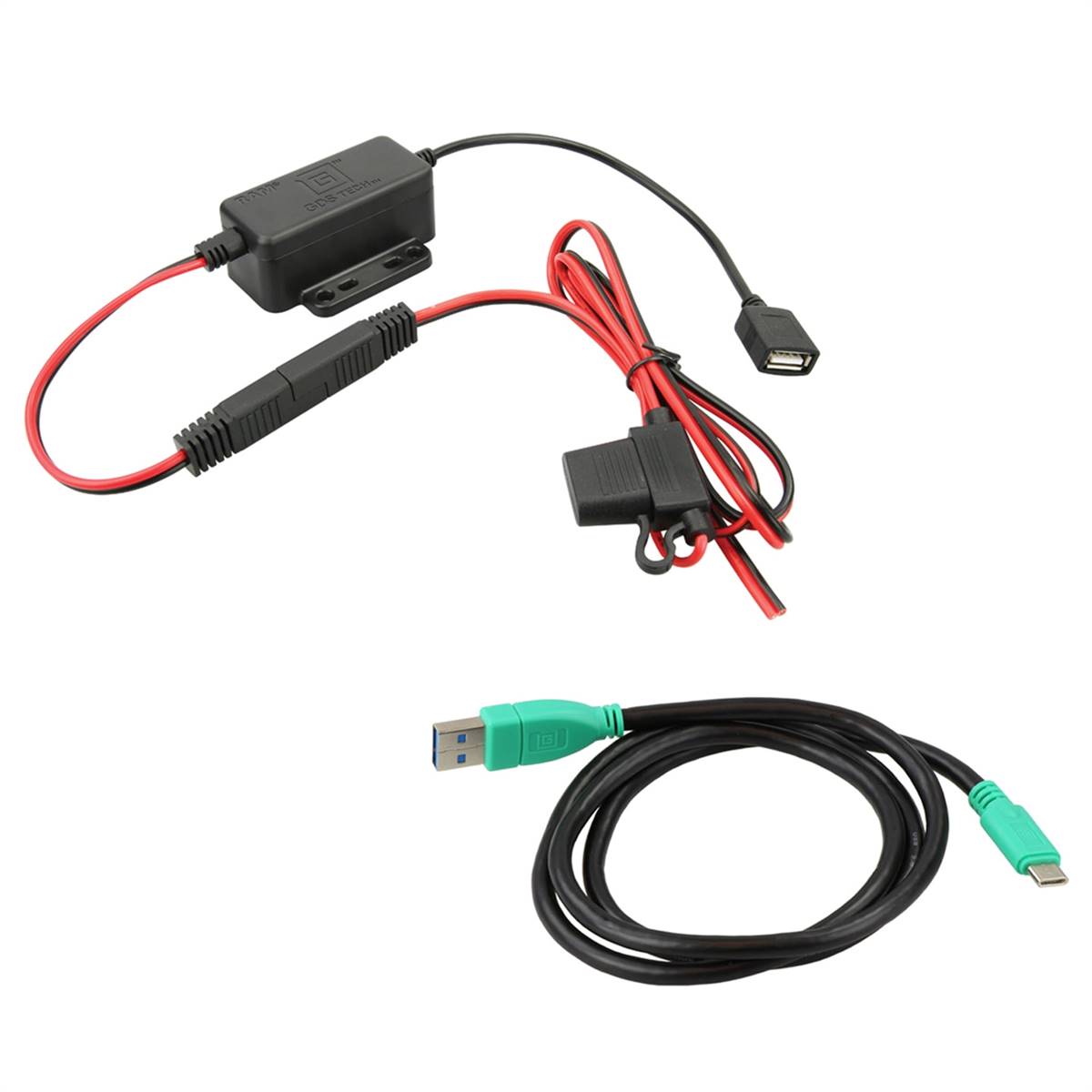

The GDS Modular Hardwire Charger with Female USB Type A Connector is the ideal solution for providing power to any GDS vehicle solution. With the quick disconnect feature you can avoid rewiring with it comes to to upgrade by simply unplugging the SAE connector and attaching the new charger components. Compatible with any 5V device with a 30V-64V input range. Includes 1 meter long USB Type C extension cord.

FEATURES

Hardwire charger includes USB Type-A female connector and 1m long USB Type C extension cord; 30V-64V input range, 5V output

When upgrading devices, avoid rewiring by unplugging power connector and attaching new charger components

Part of the GDS Ecosystem to keep devices protected, connected, and charged in nearly any application

Backed by a 3-year warranty

hardware included
(1) USB Type-C to Type-A Cable

packaging type
Poly Bag

input voltage
30V-64V DC

output voltage
5-9VDC*

output current
2.5A max

input connector
USB Type-C

input cable length
1.2 Meters including 2 Pole Flat Marine Connector

output cable length
.2 Meters

operating temperature
-10°C to +70°C

storage temperature
-40°C to +70°C

compliance
Over Voltage ProtectionShort Circuit ProtectionReverse Polarity ProtectionRoHS ComplianceWEEE ComplianceSAE J-1113-5 Load Dump (Transient Voltage)Moisture Resistant

certifications
CE Certificatione-Mark CertificationRCM CertificationFCC Certification

Warranty
3 year warranty

Weight
0.45 lb
