GDS 24-60VDC Input (19VDC Output) H

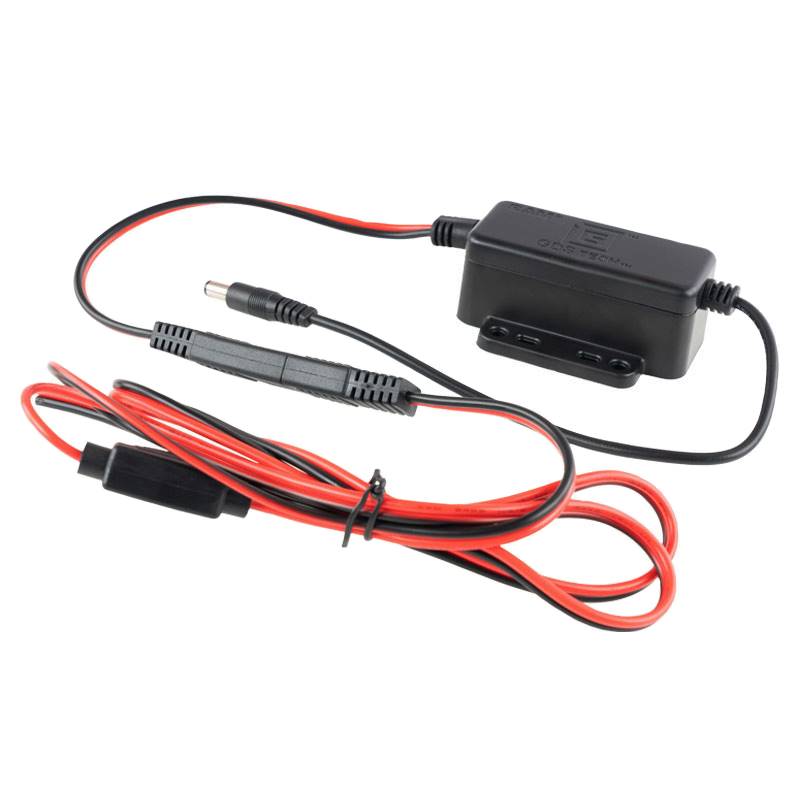

The GDS Modular Hardwire Charger with USB Type-C Male
Connector is the ideal solution for providing power to any Type-C GDS vehicle solution. By
connecting directly to the power source of your vehicle, the GDS Hub delivers
Type-C power to your device. Avoid rewiring when changing or upgrading devices by simply unplugging the
power connector and installing the new GDS Hub .

FEATURES

Hardwire charger includes USB Type-C male connection with input of 12-24VDC and output of 12VDC @ 2A max (supports USB PD3.0 and PPS)

When upgrading devices, avoid rewiring by unplugging power connector and attaching new charger components

Part of the GDS Ecosystem to keep devices protected, connected, and charged in nearly any application

Backed by a 3-year warranty

Packaging Type
Poly Bag

Input Voltage
12V - 24V

Output Voltage
12VDC @ 2A (supports USB PD3.0 and PPS)

Power Output
37.5W Total

Output Current
3A max

Input Connector
Male USB Type-C

Input Cable Length
1.2 Meters including 2 Pole Flat Marine Connector

Output Cable Length
1 Meter

Operating Temperature
-20°C to +70°C

Storage Temperature
-40°C to +85°C

Compliance
Meets SAE J-1113 5a, Integrated Short Circuit Protection (SCP), Integrated Over Voltage
Protection (OVP)

Certifications
FCC, IC, CE RCM, WEEE, RoHS Compliant USB Power Delivery 2.0 and 3.0 Support

Weight
0.45 lbs.

Warranty Status
3 year warranty
