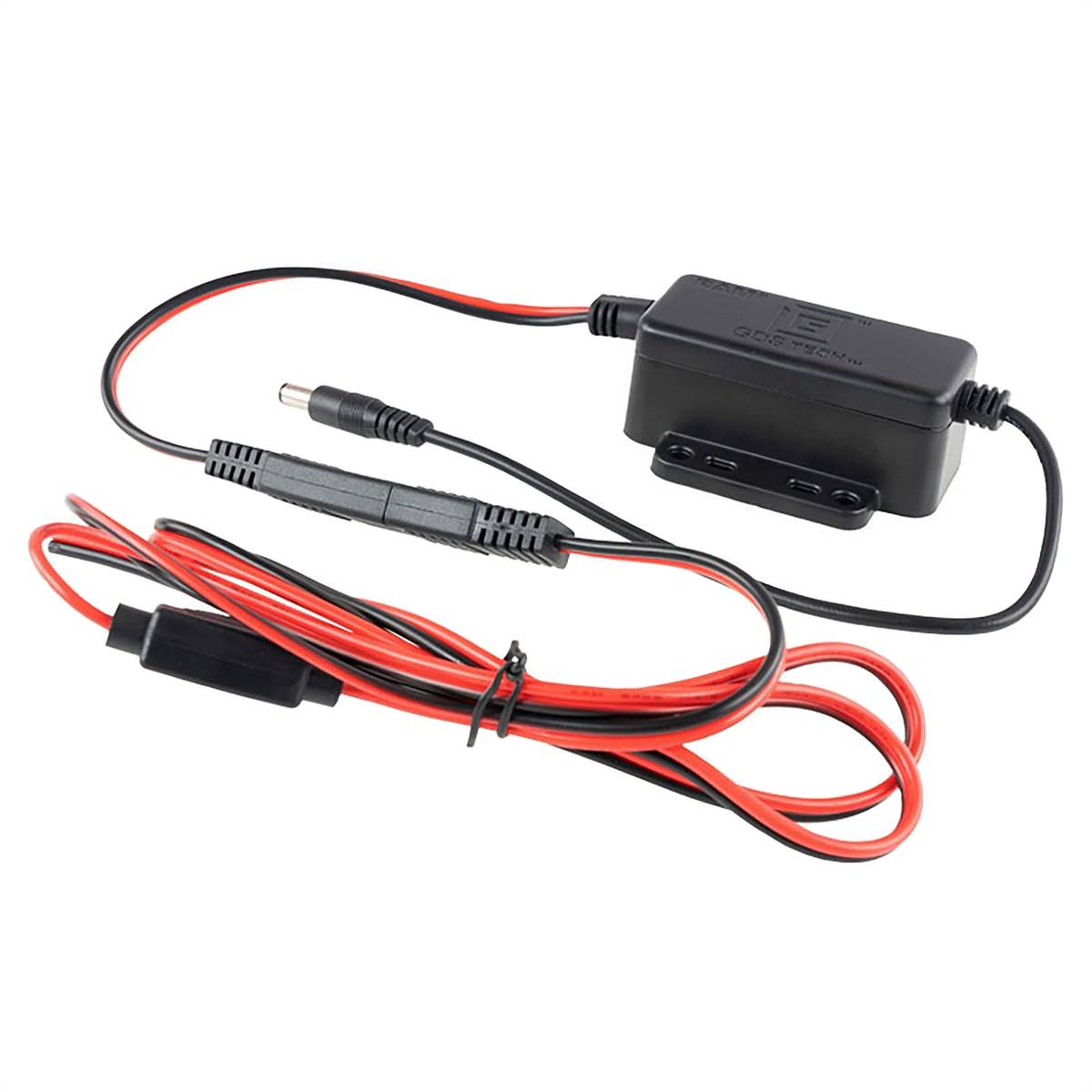

GDS 10-28VDC Input (16VDC Output) H

The GDS Modular Hardwire Charger with 5.5mm Male DC cable is the ideal solution for providing power to any RAM or GDS DC powered docking station. When it comes time to upgrade, avoid any rewiring by simply unplugging the power connector and attaching the new charger components. This hardwire charger has an input of 10-28VDC and the 16VDC makes it ideal for a variety of applications.

FEATURES

Hardwire charger includes male 5.5mm barrel connector; 10-28VDC input range, 16VDC output

When upgrading devices, avoid rewiring by unplugging power connector and attaching new charger components

Part of the GDS Ecosystem to keep devices protected, connected, and charged in nearly any application

Backed by a 3-year warranty

packaging type
Poly Bag

input voltage
10V-28V DC

output voltage
16VDC

output current
3.5A max

input connector
Male 5.5mm OD x 2.5mm ID Barrel Connector

input cable length
1.2 Meters including 2 Pole Flat Marine Connector

output cable length
.2 Meters

operating temperature
-10°C to +70°C

storage temperature
-40°C to +70°C

compliance
Over Voltage ProtectionShort Circuit ProtectionReverse Polarity ProtectionRoHS ComplianceWEEE ComplianceSAE J-1113-5 Load Dump (Transient Voltage)Moisture Resistant

certifications
CE Certificatione-Mark CertificationRCM CertificationFCC Certification

Warranty
3 year warranty

Weight
0.31 lb
