RAM-GDS-CHARGE-V3C-2U_GDS Modular 10-30V Power Delivery

RAM-GDS-CHARGE-V3C-2U_GDS Modular 10-30V Power Delivery

$99.00 USD
$99.00 USD
Sale Sold out
UPC:
793442015892
Mfg Part #:
RAM-GDS-CHARGE-V3C-2U
Availability:
Out Of Stock
Part Number:
RAM-GDS-CHARGE-V3C-2U
View full details
  • Description
DISCONTINUED

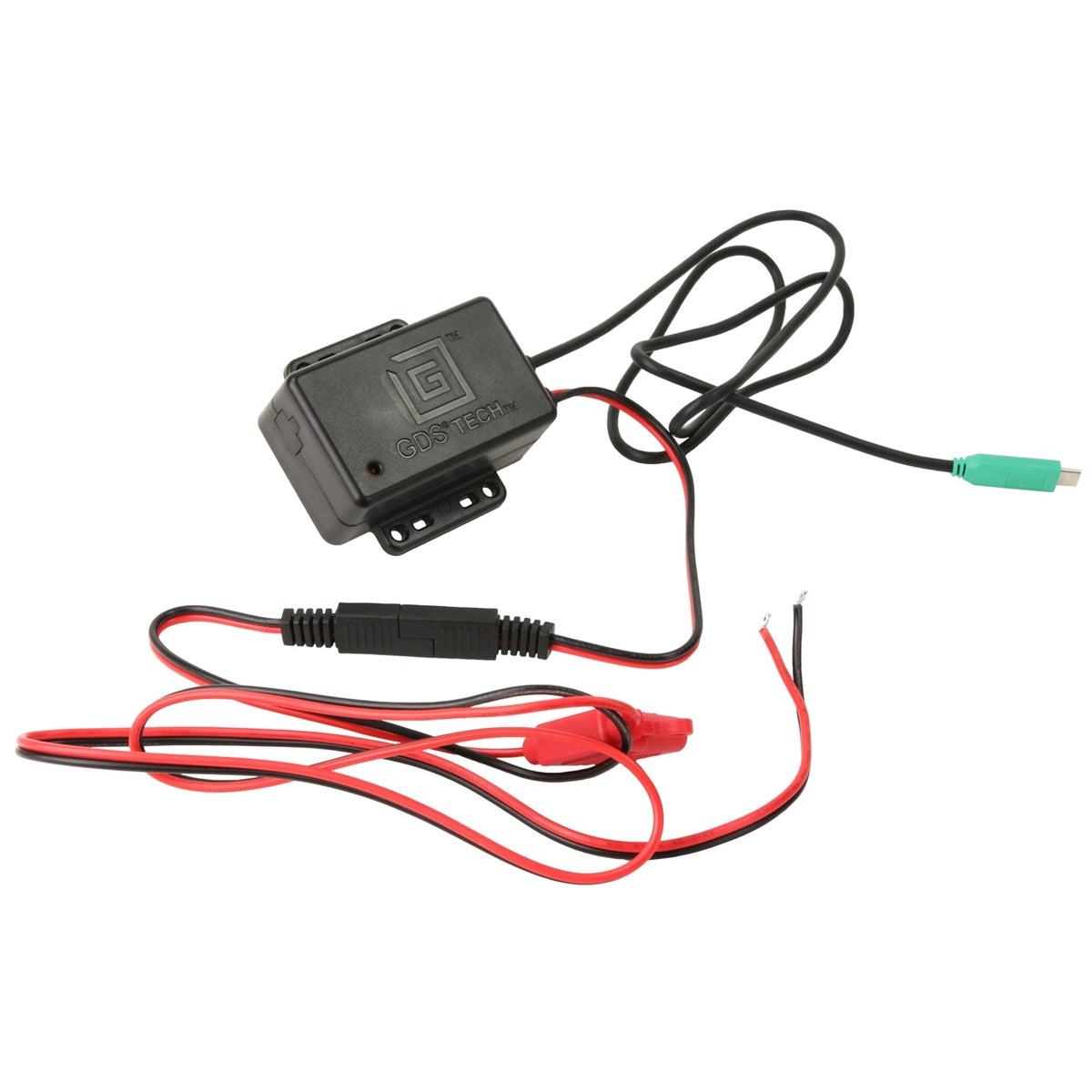

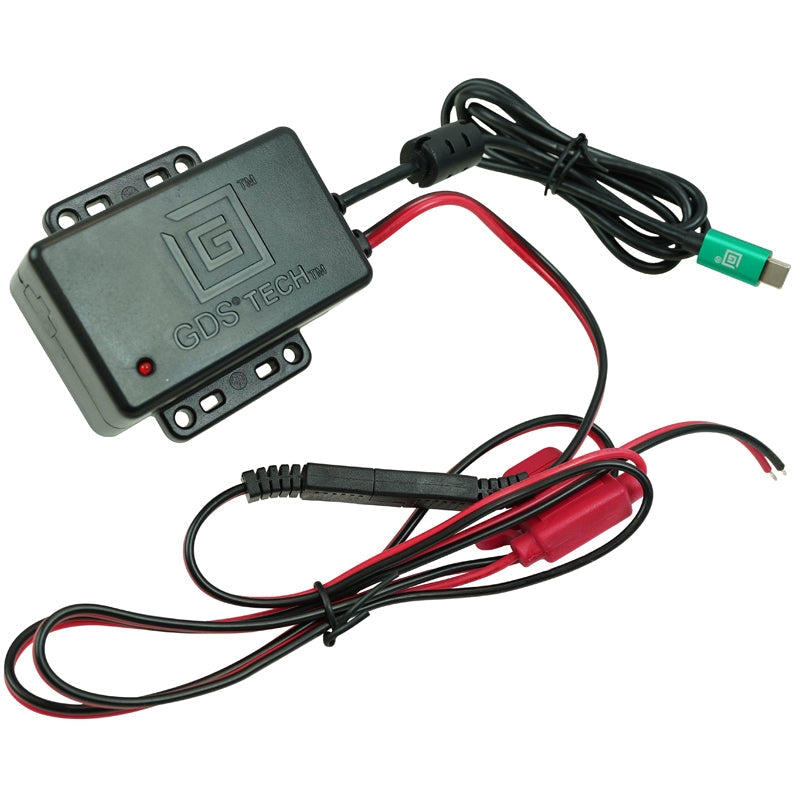

The GDS® Modular Hardwire Charger is the ideal solution for providing power to any USB Type-C GDS® vehicle solution. By connecting directly to the power source of your vehicle, the GDS® Charger delivers up to 15V of USB Type-C power to your device. When it comes time to upgrade, avoid any rewiring by simply unplugging the power connector and attaching the new charger components. This charger supports Power Delivery. Always Protected. Always Connected.®
packaging type
Poly Bag

input voltage
10-30VDC

output voltage
5-15VDC

output current
3A max

input connector
Bare Wire

input cable length
2.5 Meters

output connector
USB Type-C Male

output cable length
1 Meter

operating temperature
-20°C to +70°C

storage temperature
-40°C to +85°C

regulatory
Over Voltage Protection
Short Circuit Protection
Reverse Polarity Protection
RoHS Compliance
WEEE Compliance
SAE J-1113-5 Load Dump (Transient Voltage)
Moisture Resistant

certifications
CE Certification
RCM Certification
FCC Certification
UL 62368-1 Certificaton
