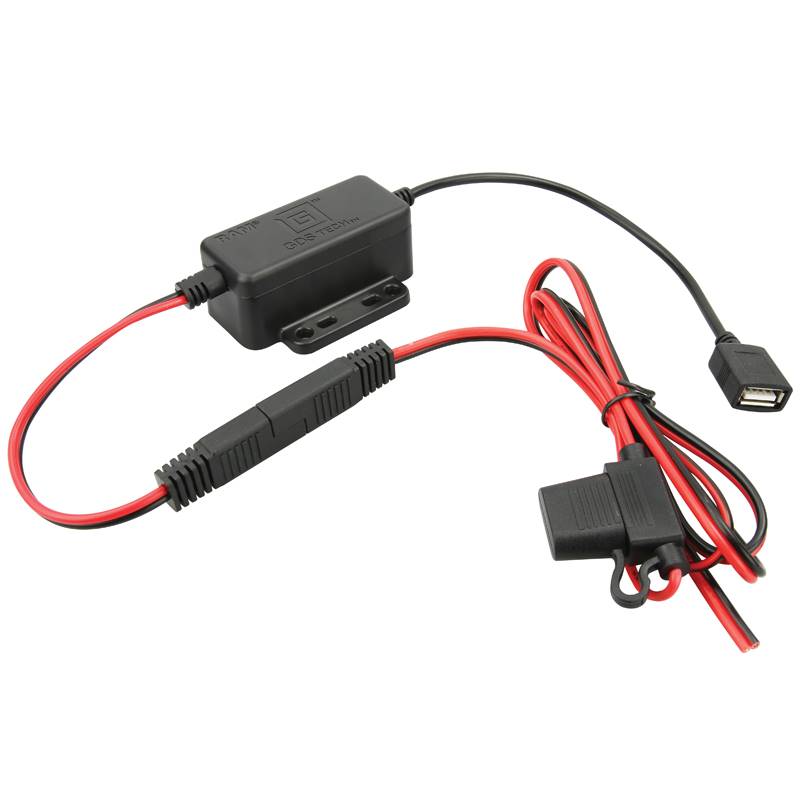

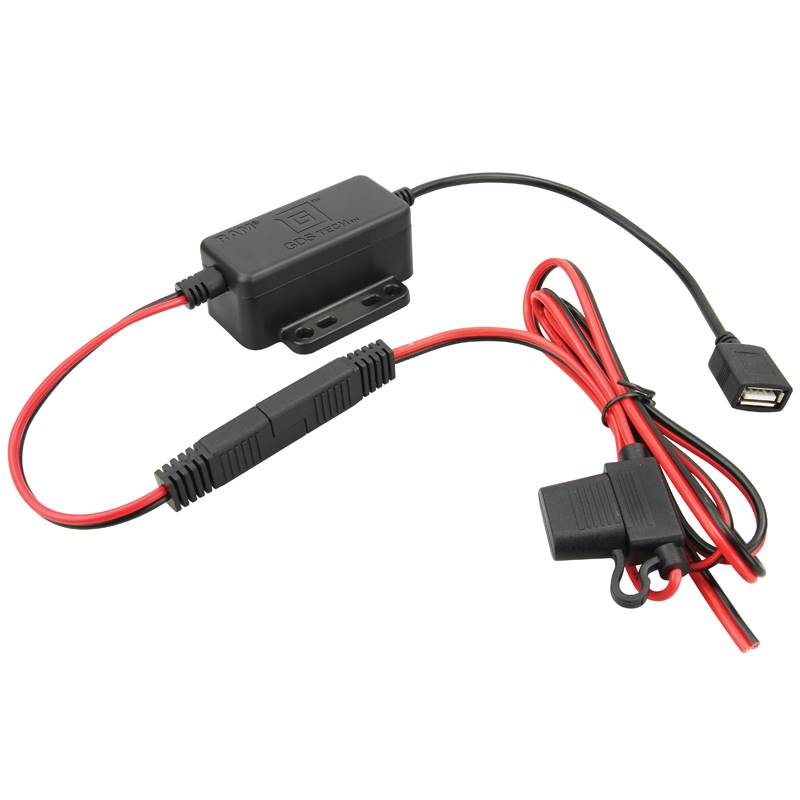

GDS Modular 30-64V Hardwire Charger

The GDS Modular Hardwire Charger with 5.5mm Male DC cable is
the ideal solution for providing power to any RAM or GDS DC powered docking
station. When it comes time to upgrade, avoid any rewiring by simply unplugging the power connector and
attaching the new charger components. This hardwire charger has an input of 20-60VDC input, making it
ideal for forklift mounts and material handling applications.

FEATURES

Hardwire charger includes male 5.5mm barrel connector; 20-60VDC input range, 12VDC output

When upgrading devices, avoid rewiring by unplugging power connector and attaching new charger components

Part of the GDS Ecosystem to keep devices protected, connected, and charged in nearly any application

Backed by a 3-year warranty

Packaging Type
Poly Bag

Input Voltage
20V-60V DC

Output Voltage
12VDC

Output Current
3.5A max

Input Connector
Male 5.5mm OD x 2.5mm ID Barrel Connector

Input Cable Length
1.2 Meters including 2 Pole Flat Marine Connector

Output Cable Length
.2 Meters

Operating Temperature
-10°C to +70°C

Storage Temperature
-40°C to +70°C

Compliance
Over Voltage Protection Short Circuit Protection Reverse Polarity Protection
RoHS Compliance WEEE Compliance SAE J-1113-5 Load Dump (Transient Voltage) Moisture
Resistant

Certifications
CE Certification e-Mark Certification RCM Certification FCC Certification

Weight
0.3 lbs.

Warranty Status
3 year warranty
