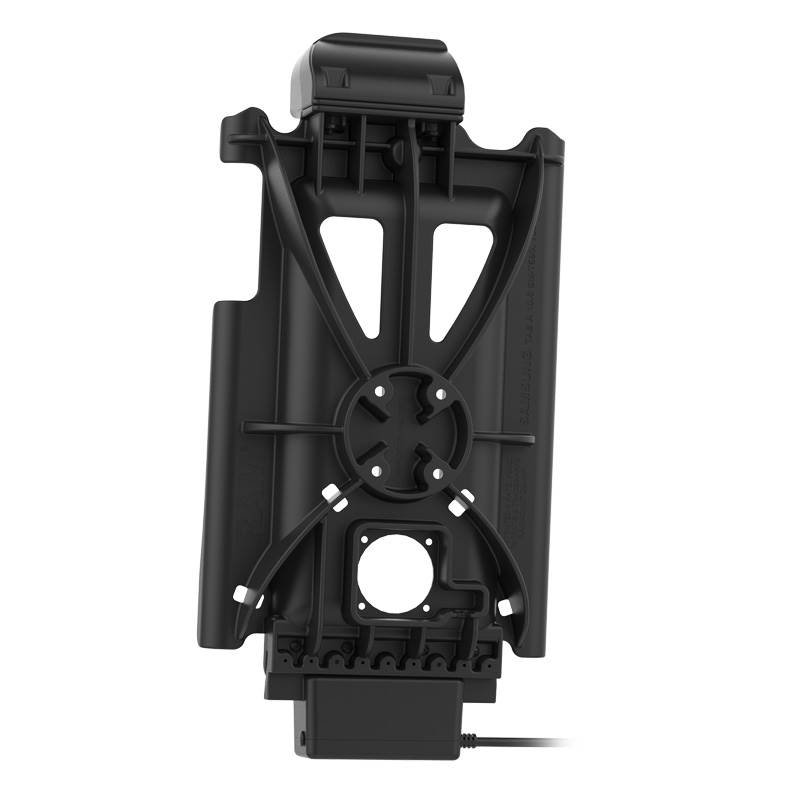

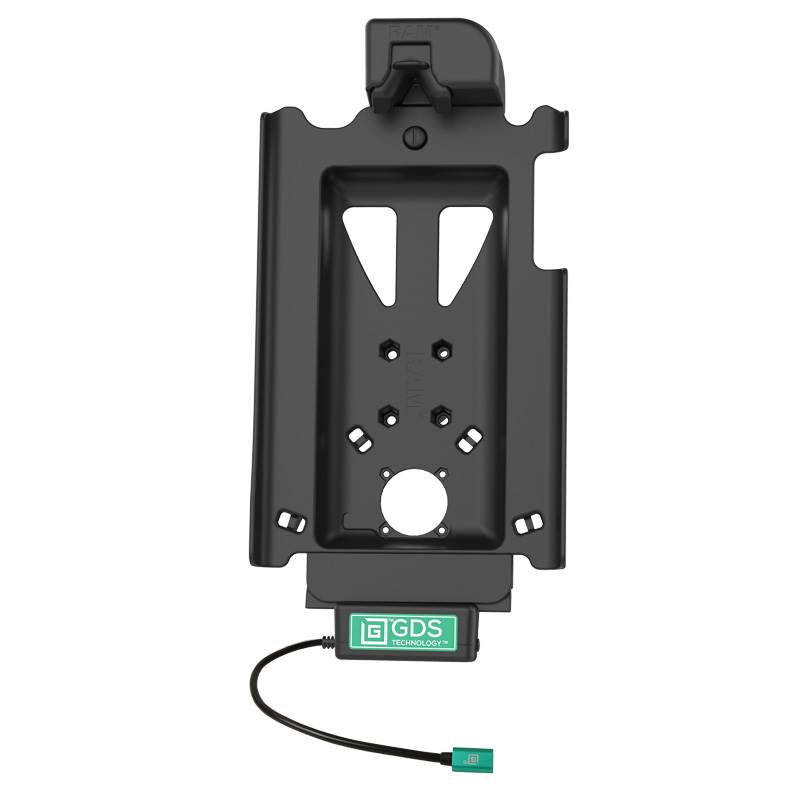

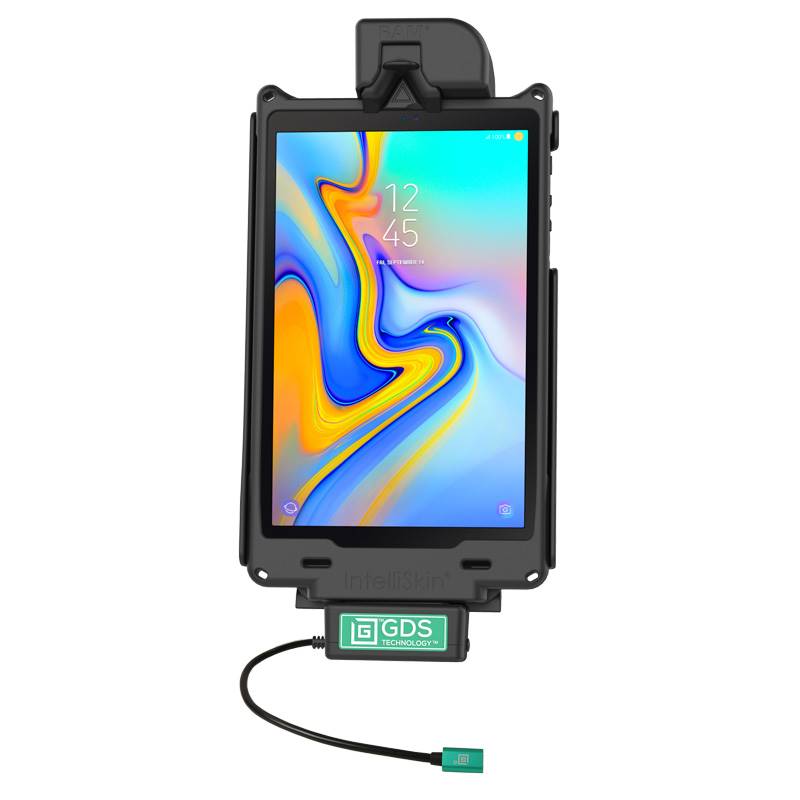

GDS Tough-Dock for Samsung Tab A

This GDS Tough-Dock vehicle dock is designed to
support the Samsung Galaxy Tab A 8.4 (2020) in an IntelliSkin Next Gen protective sleeve for
your fleet. While the dock uses a USB Type-C female power connector and integrated pogo pins to provide
power to the device while docked, the GDS Tough-Dock also includes a USB Type-A
connector to support a peripheral add-on such as a keyboard, printer, scanner and more. The
GDS Tough-Dock is compatible with RAM ball and socket systems using
the integrated 4-hole AMPS hole pattern. The GDS Tough-Dock is backed by a 3-year
warranty.

FEATURES

Spring-loaded vehicle dock featuring GDS Technology uses an integrated pogo pin connector to provide charging and connection to one additional USB peripheral

Designed specifically for the Samsung Galaxy Tab A 8.4 (2020) wrapped in an IntelliSkin Next Gen protective sleeve

Incorporated into the bottom docking cup is a USB Type-C Female connector for providing power to the dock and single USB Type-A for peripheral connection

RAM Mounts Compatible and compatible with the GDS Hand-Stand Hand Strap and Kick Stand attachment

Backed by a 3-year warranty

Hardware Included
(4) #8-32 x 5/8 INCHES Machine Screws (4) #8-32 Nylock Nuts

Hole Pattern
4-Hole AMPS: 1.181 INCHES x 1.496 INCHES

Materials
High strength composite

Packaging Type
Poly Bag

Output Voltage
5V - 12V @ 2A

Power Output
15W

Input Connector
USB Type-C Dual USB Type A for 1 Peripheral

Output Cable Length
.21 Meters

Weight
1.1 lbs.

Warranty Status
3 year warranty
