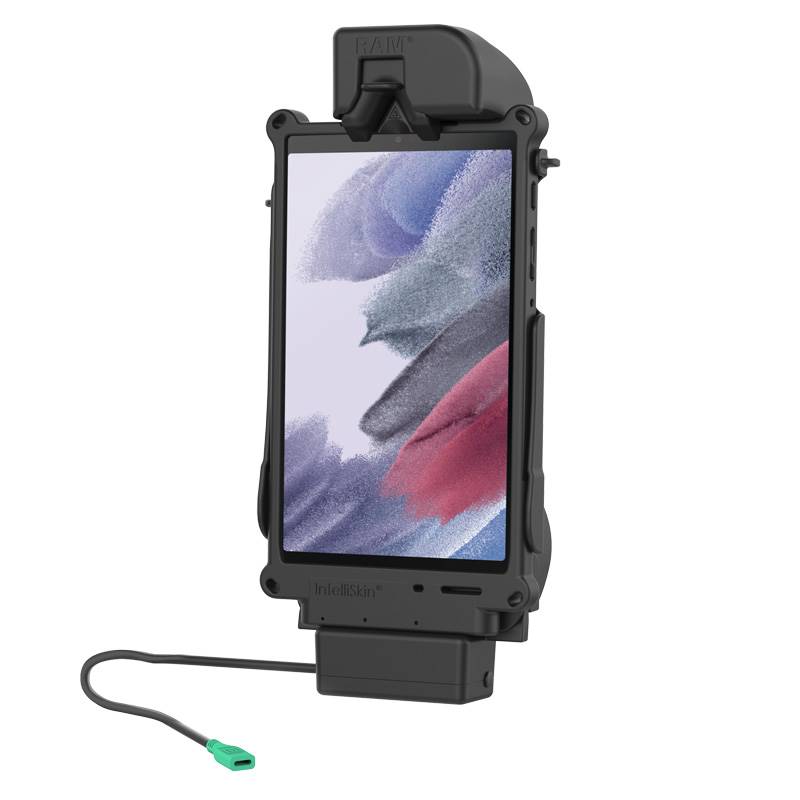

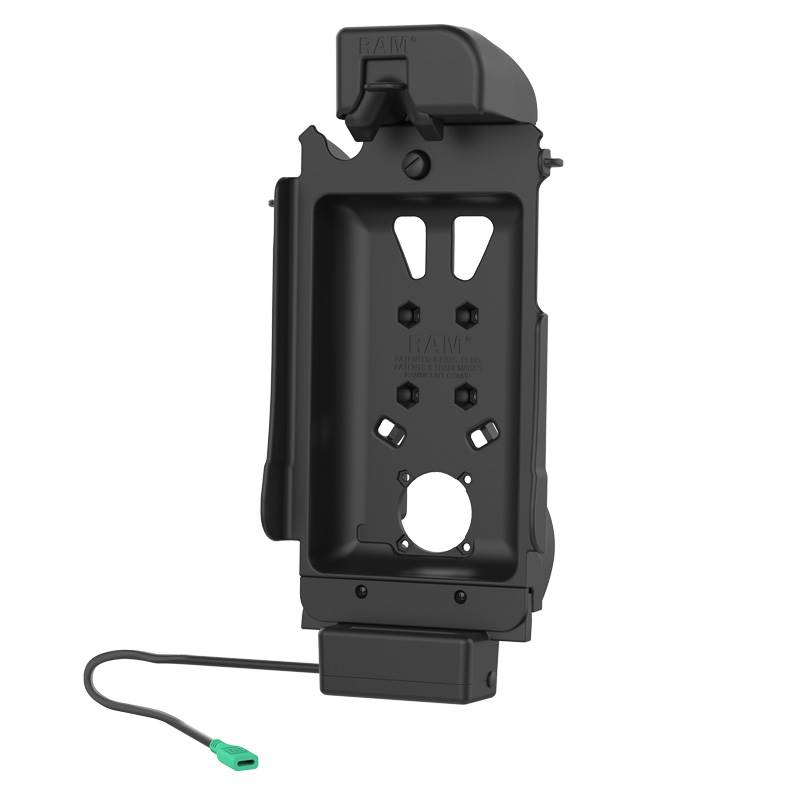

RAM-GDS-DOCK-SAM80CPU_GDS Tough-Dock for Samsung Tab A7

The GDS Tough-Dock is the newest vehicle dock in
the GDS Tech line of vehicle docks designed to support the Samsung Galaxy Tab A7
Lite 8.7 INCHES (SM-T220 & SM-T225) in an IntelliSkin Next Gen protective sleeve for your
fleet. Using a mUSB power connector and a cutout for an audio jack cable, the GDS
Tough-Dock supports charging capabilities and audio connection for the Samsung Galaxy Tab A7
Lite 8.7 INCHES (SM-T220 & SM-T225). The GDS Tough-Dock is compatible with
RAM ball and socket systems and requires a 4-hole AMPS pattern ball adapter. The
GDS Tough-Dock is backed by a 3-year warranty.

FEATURES

Spring-loaded vehicle dock featuring GDS Technology for charging capabilities; uses mUSB power cord to enable the GDS Tough-Dock

Designed specifically for the Samsung Galaxy Tab A7 Lite 8.7 INCHES (SM-T220 & SM-T225) in an IntelliSkin Next Gen protective sleeve

RAM Mounts Compatible and compatible with the GDS Hand-Stand Hand Strap and Kick Stand attachment

Backed by a 3-year warranty

Hardware Included
(4) #8-32 x 5/8 INCHES Machine Screws (4) #8-32 Nylock Nuts (1) 1.2 Meter mUSB Cable
(1) Cable Clamp

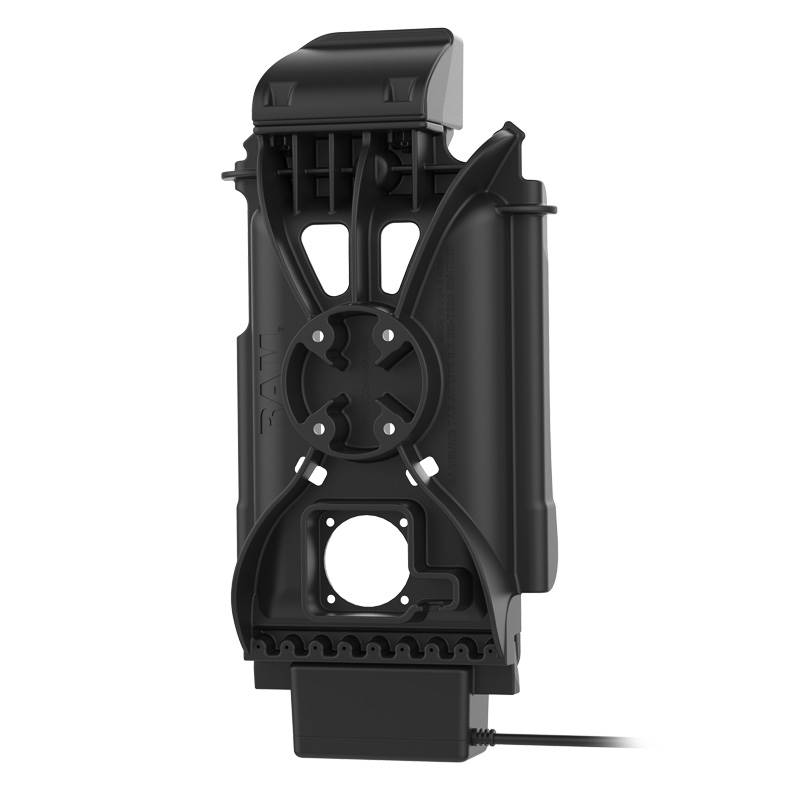

Hole Pattern
4-Hole AMPS: 1.181 INCHES x 1.496 INCHES

Materials
High strength composite

Packaging Type
Poly Bag

Output Voltage
5V - 12V @ 2A

Power Output
15W

Input Connector
mUSB 2.0 Female

Input Cable Length
.35 Meter

Warranty Status
3 year warranty

Additional Information
Note:mUSB products supporting USB 2.0/3.0 will have a max
current of 1.67A.
