RAM-GDS-DOCK-ZE21PD2U_GDS Power + Dual USB Dock for Zeb

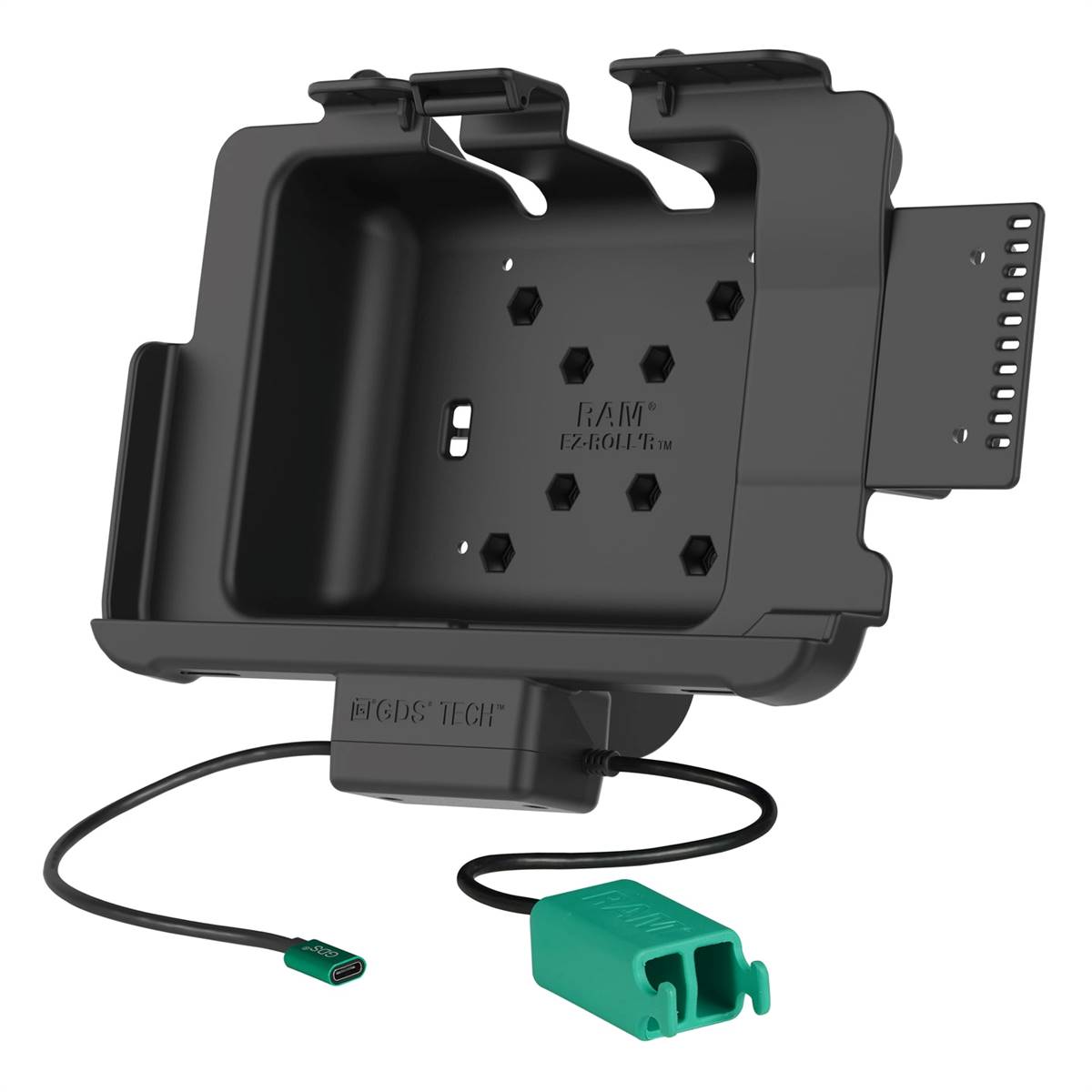

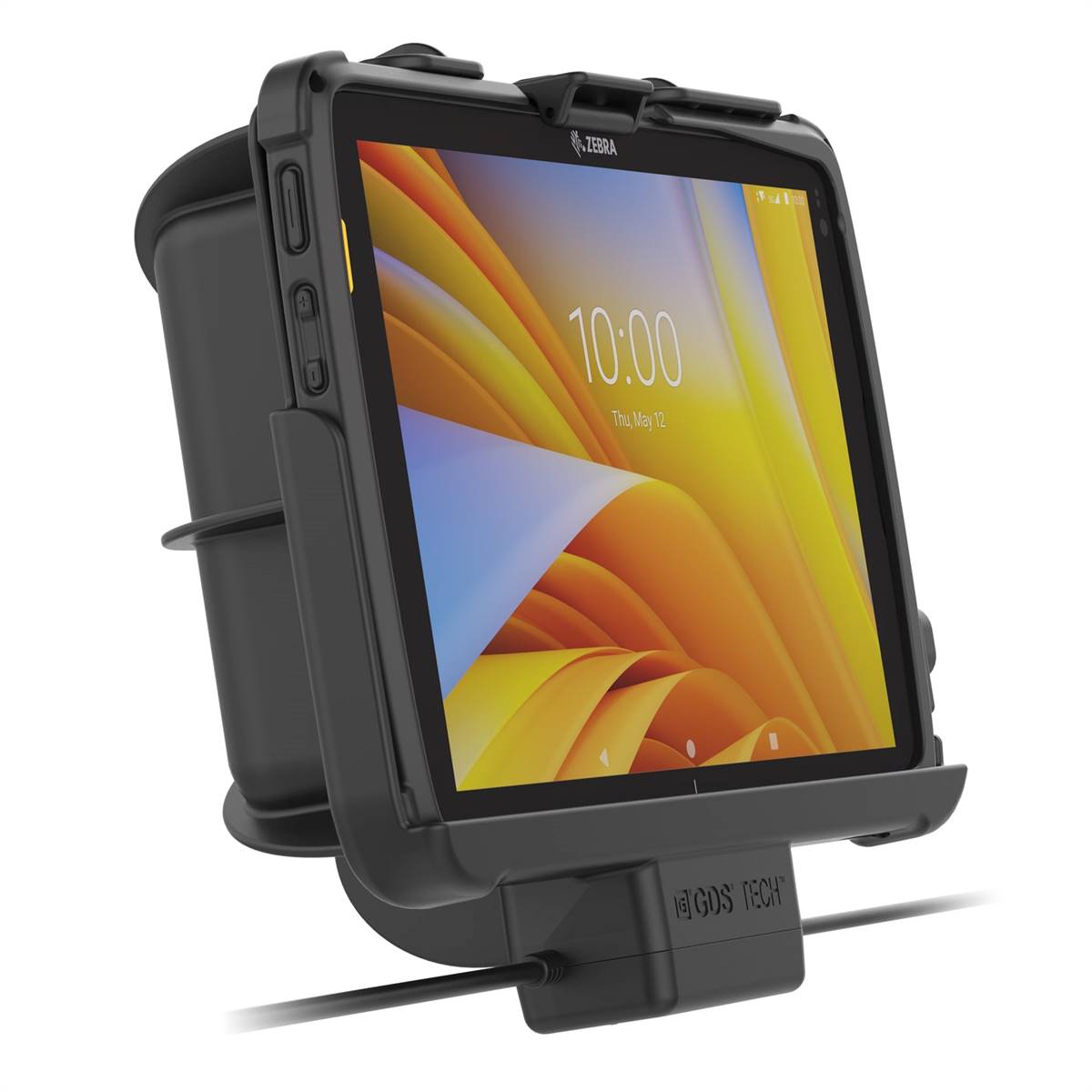

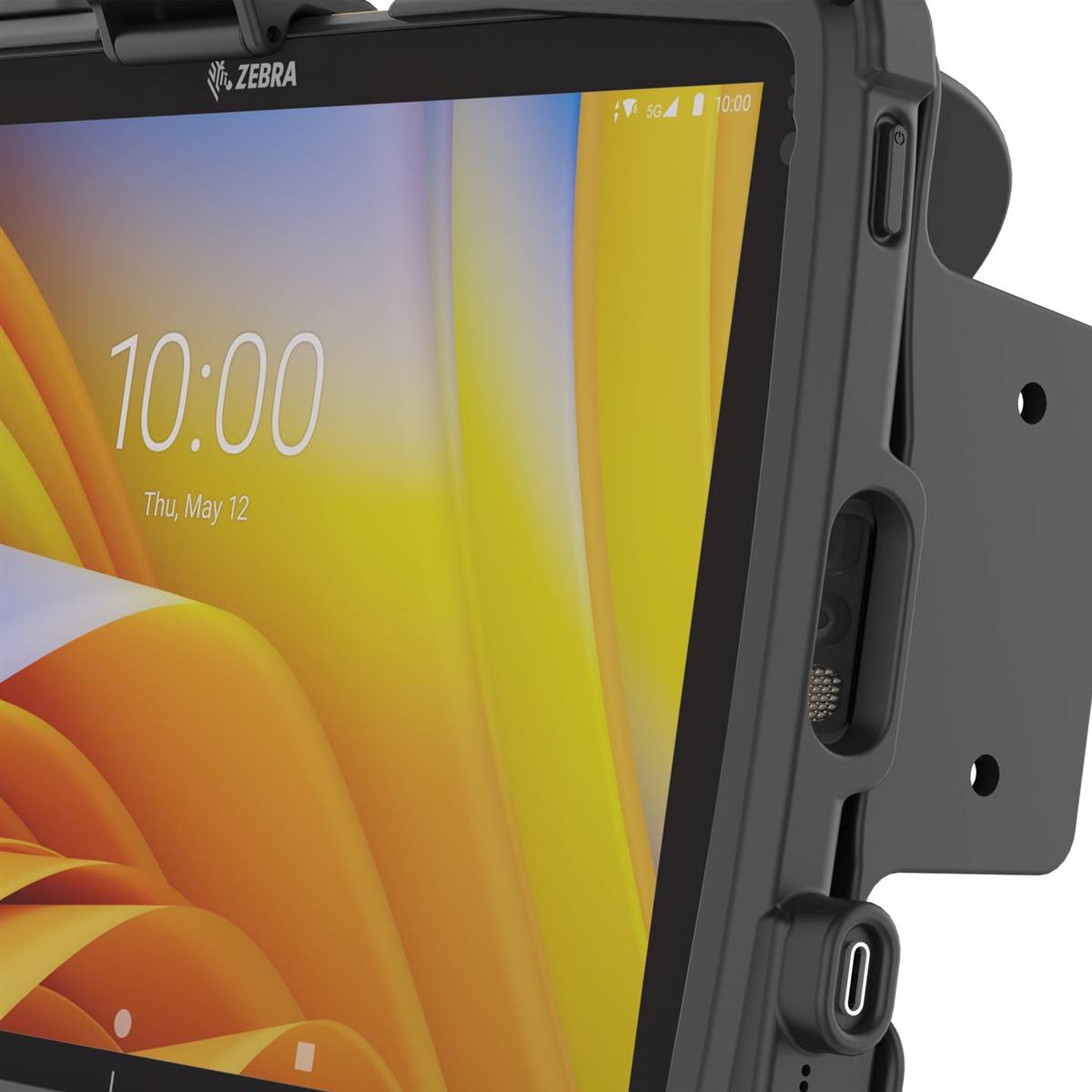

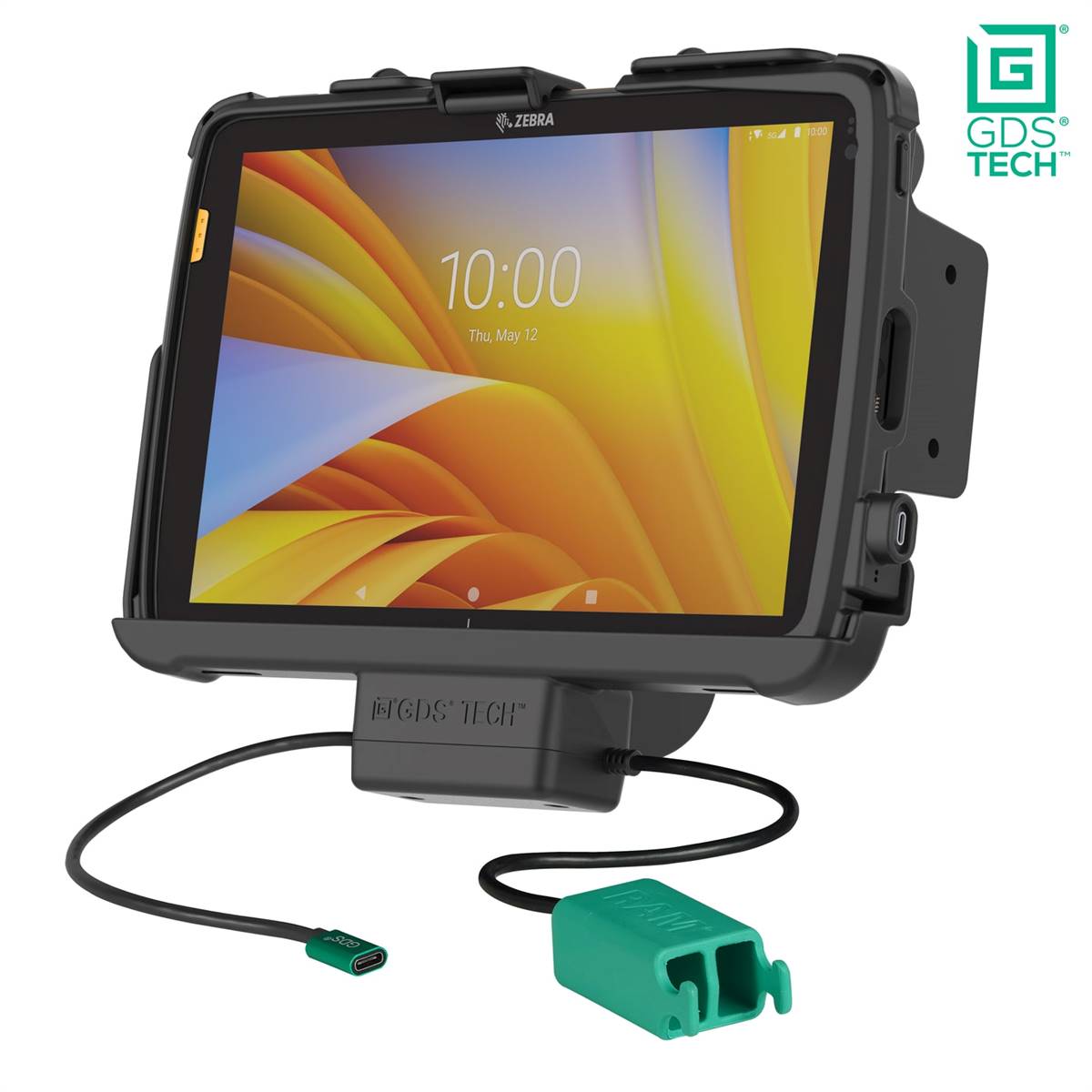

Featuring GDS Technology for data and charging capabilities, the GDS Vehicle Dock for Zebra ET40 & ET45 10" enterprise tablets with IntelliSkin Next Generation protective sleeve allows you to connect up to two desired peripherals while keeping the device charged through the pogo pin contacts when the device is docked. Power is provided by connecting to the dock's USB Type-C connector, while peripheral support is provided by the built-in dual USB Type A cable. The dock also allows the tablet's scanning function to work on the side, as well as tablet add-ons such as the Zebra Expansion Back and PowerPack Battery. This vehicle dock is compatible with C and D size RAM 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm in order to complete your mounting solution. Take the solution a step further by taking advantage of the built-in 2-hole mounting plate compatible with RAM 2-hole diamond base for additional device mounting such as a phone or other handheld device.

FEATURES

Powered dock featuring GDS Technology and RAM EZ-Roll'r with data and charging capabilities for the Zebra ET40 & ET45 10" enterprise tablets with IntelliSkin Next Generation protective sleeve via USB Type-C for power and dual USB Type A connector for adding up to 2 peripherals; MIL-STD 810G Shock and Vibration tested

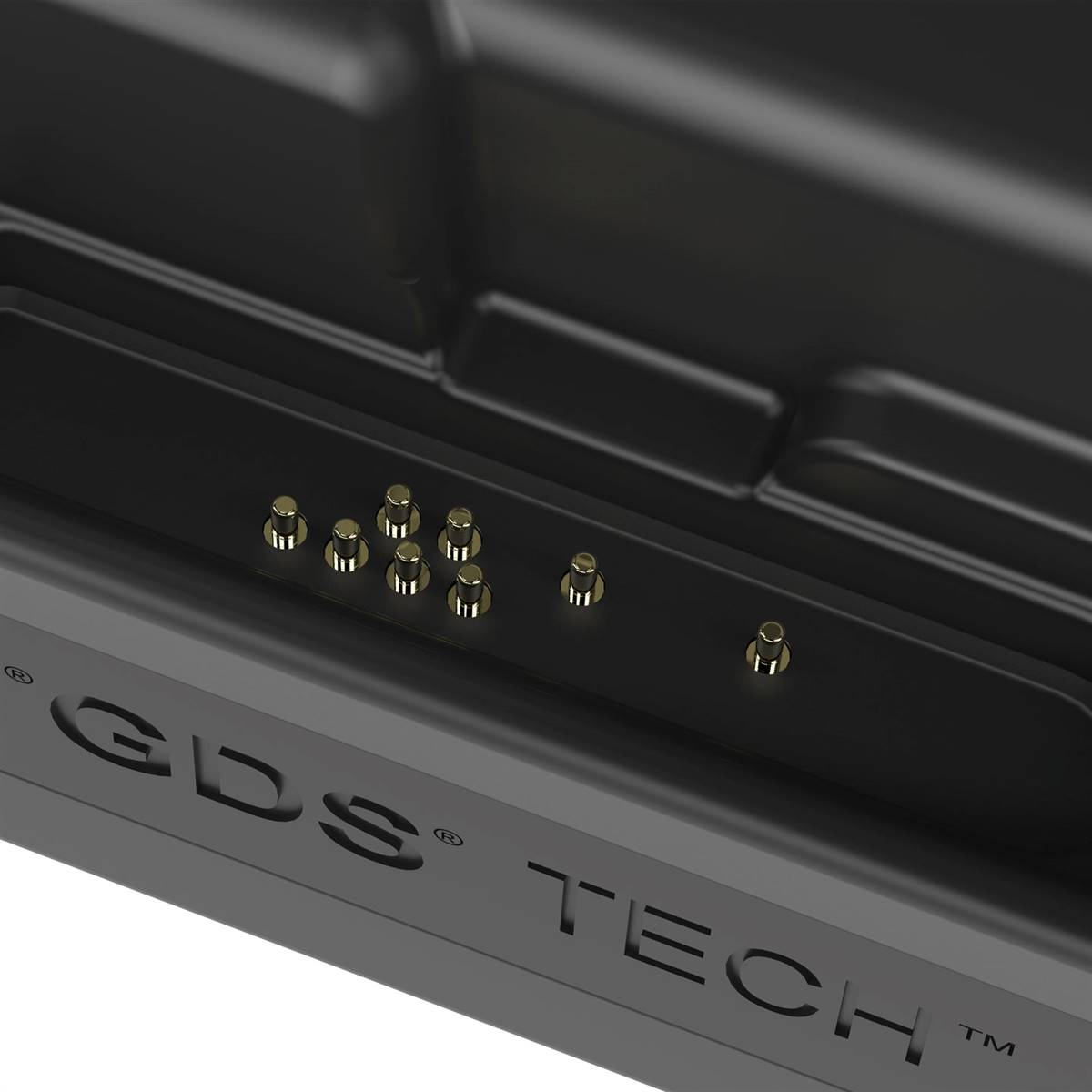

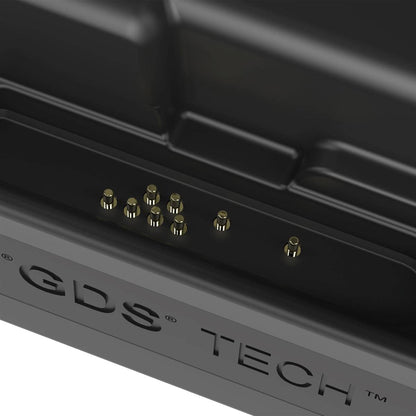

When connected to a power source, integrated pogo pins provide power to the device while docked; Dock accommodates tablet add-ons such as the Expansion Back and PowerPack Battery; tablet scanning works while tablet is docked

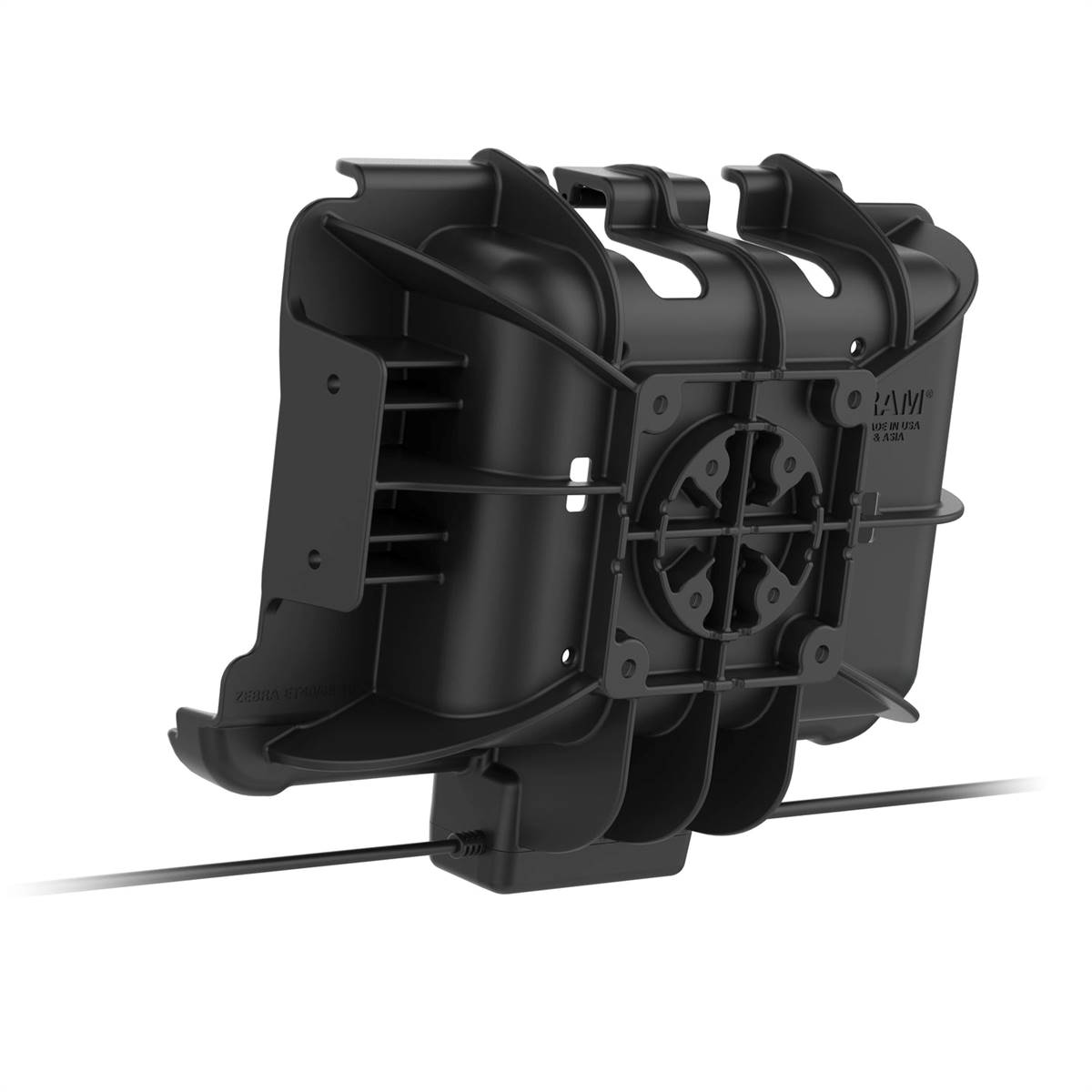

Compatible with C and D size RAM 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability

Built-in 2-hole mounting plate for additional device mounting such as a phone; compatible with RAM 2-hole diamond bases and accessory side bracket

Backed by a 3-year warranty

hardware included
(1) Side bracket for accessory mounting(4) #8-32 x 5/8” Machine Screws(2) #8-32 x 1/2” Machine Screws(6) #8-32 Nylock Nuts(4) #10-24 x 5/8” Machine Screws(2) #10-24 Nylock Nuts(2) Small Cable Ties

hole pattern
75 x 75mm VESA4-Hole AMPS: 1.181" x 1.496"

materials
High strength composite

packaging type
Poly Bag

output voltage
5V - 20V @ 3A

power output
60W

input connector
USB Type-C

input cable length
.21 Meter

output connector
(2) USB 2.0 Type A

output cable length
.24 Meter

transfer speed
12Mbps

certifications
CE Certificatione-Mark CertificationRCM CertificationFCC Certification

Warranty
3 year warranty

Weight
1.57 lb
