GDS Power + Data Dock for Zebra ET

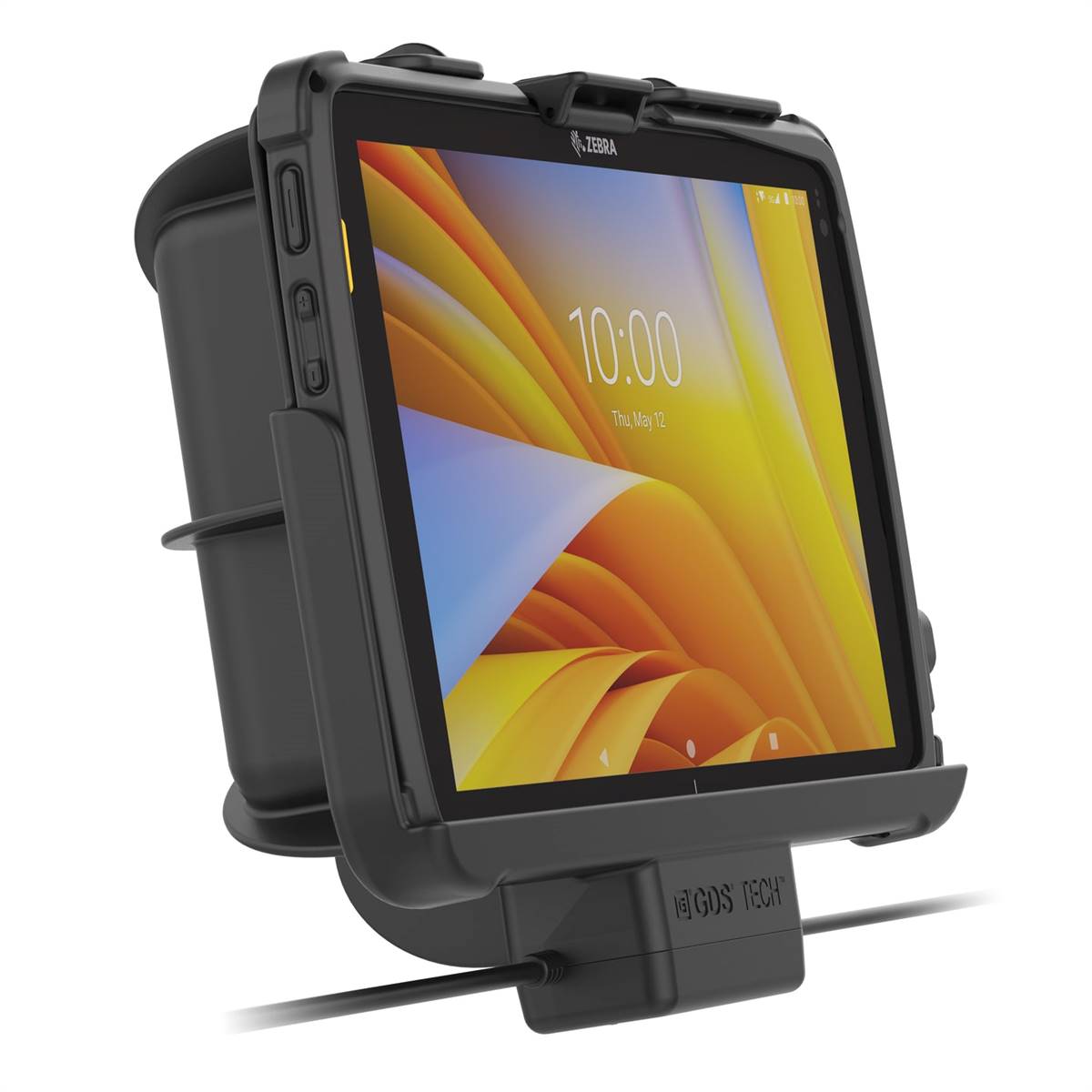

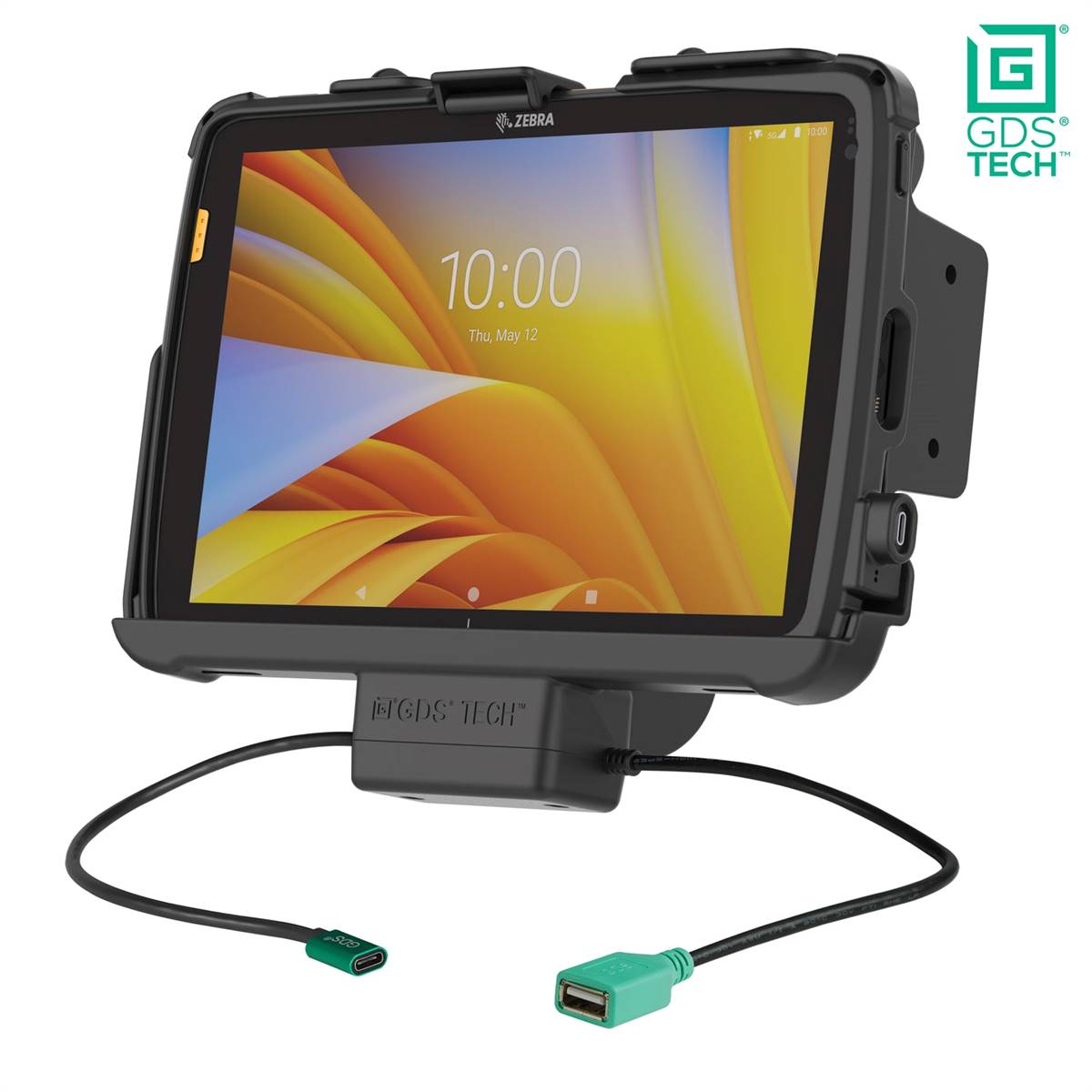

Featuring GDS Technology for data and charging capabilities, the GDS Vehicle Dock for Zebra ET40 & ET45 10" enterprise tablets with IntelliSkin Next Generation protective sleeve allows you to connect a desired peripheral while keeping the device charged through the pogo pin contacts when the device is docked. Power is provided by connecting to the dock's USB Type-C connector, while peripheral support is provided by the built-in USB Type A cable. The dock also allows the tablet's scanning function to work on the side, as well as tablet add-ons such as the Zebra Expansion Back and PowerPack Battery. This vehicle dock is compatible with C and D size RAM 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm in order to complete your mounting solution. Take the solution a step further by taking advantage of the built-in 2-hole mounting plate compatible with RAM 2-hole diamond base for additional device mounting such as a phone or other handheld device.

FEATURES

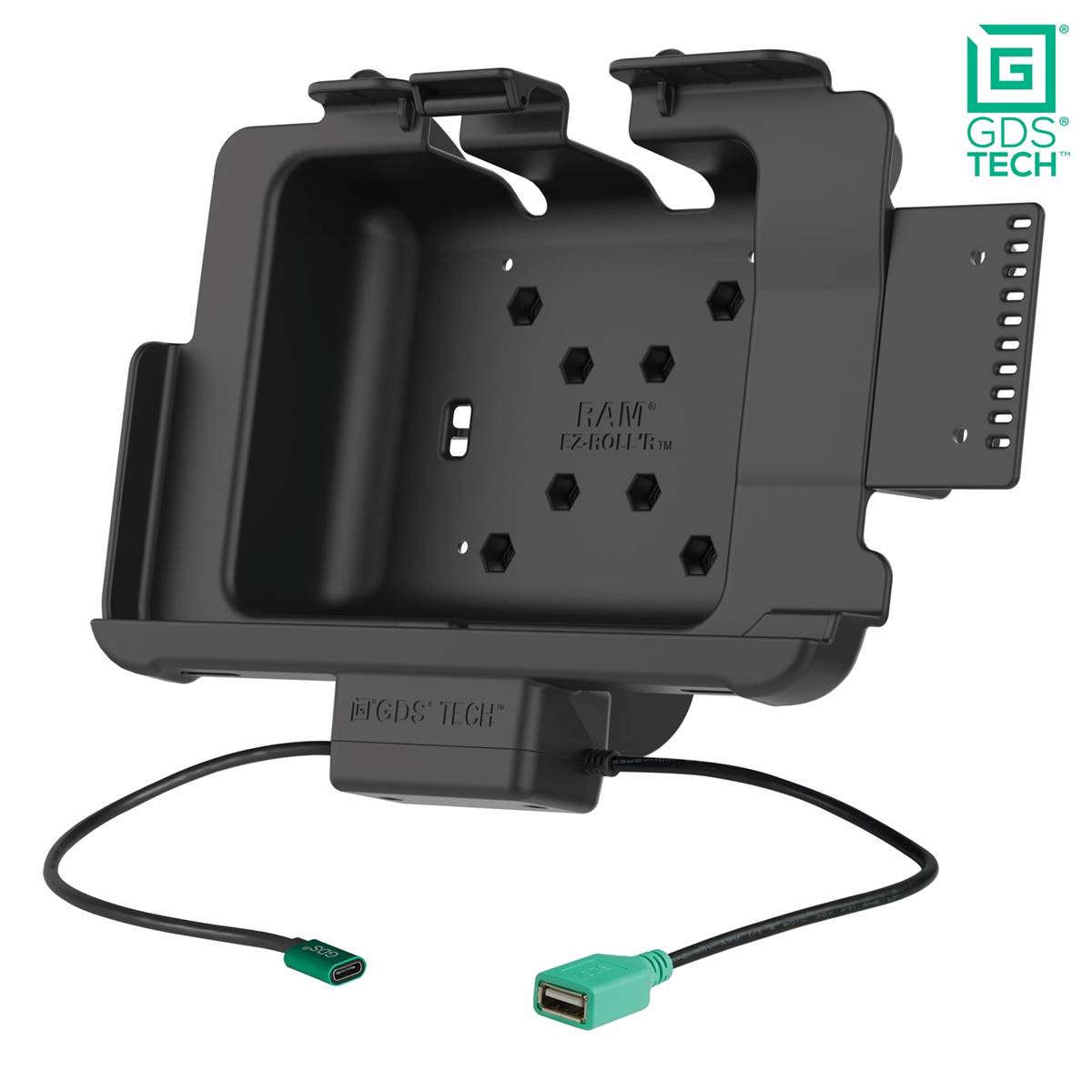

Powered dock featuring GDS Technology and RAM EZ-Roll'r with data and charging capabilities for the Zebra ET40 & ET45 10" enterprise tablets with IntelliSkin Next Generation protective sleeve via USB Type-C for power and USB Type A connector for adding a peripheral; MIL-STD 810G Shock and Vibration tested

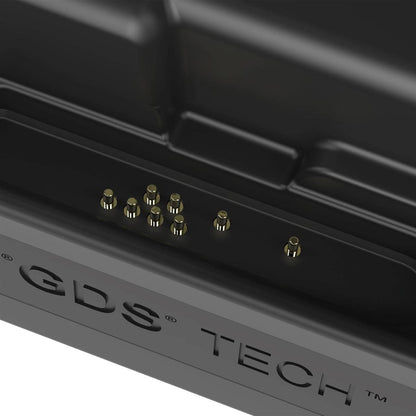

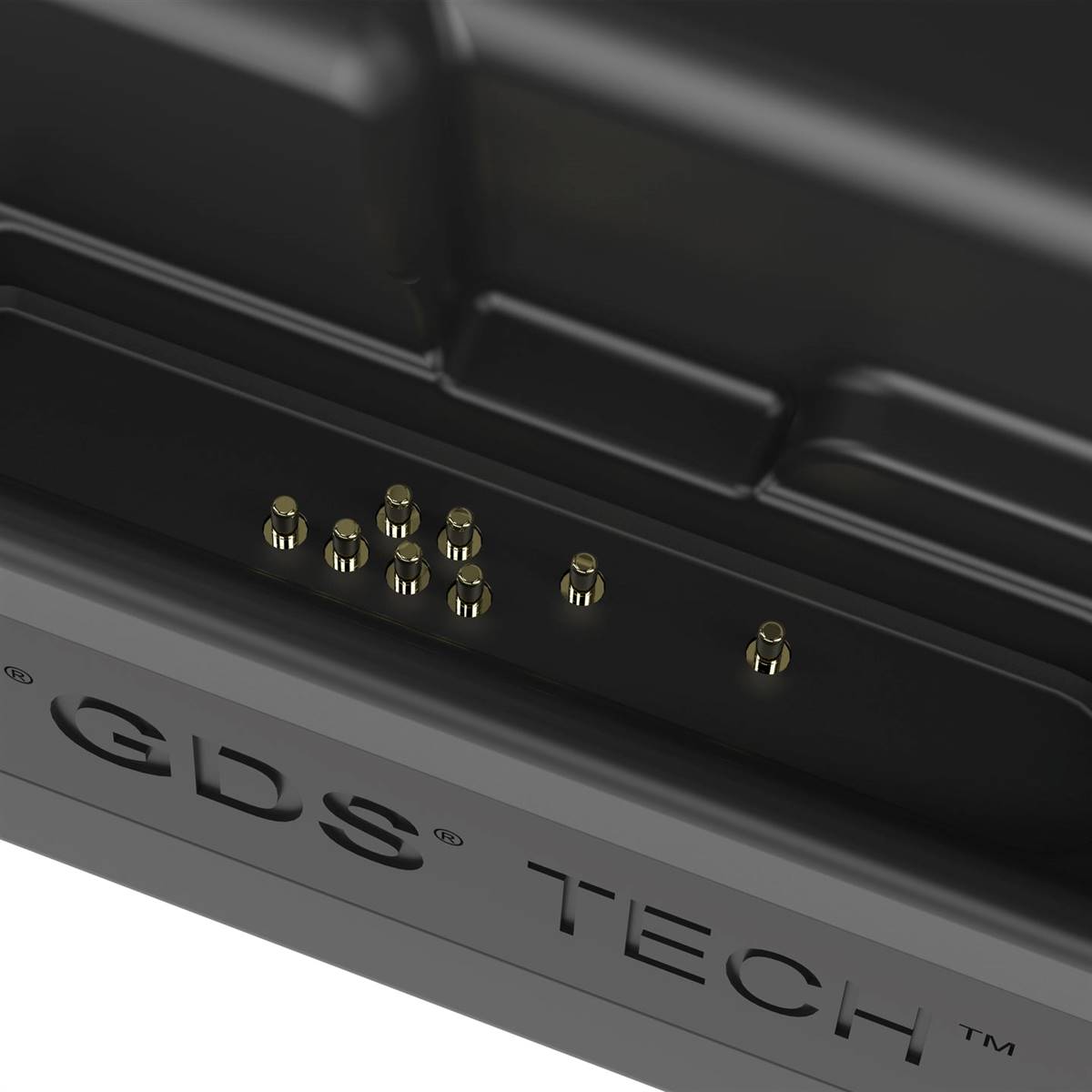

When connected to a power source, integrated pogo pins provide power to the device while docked; Dock accommodates tablet add-ons such as the Expansion Back and PowerPack Battery; tablet scanning works while tablet is docked

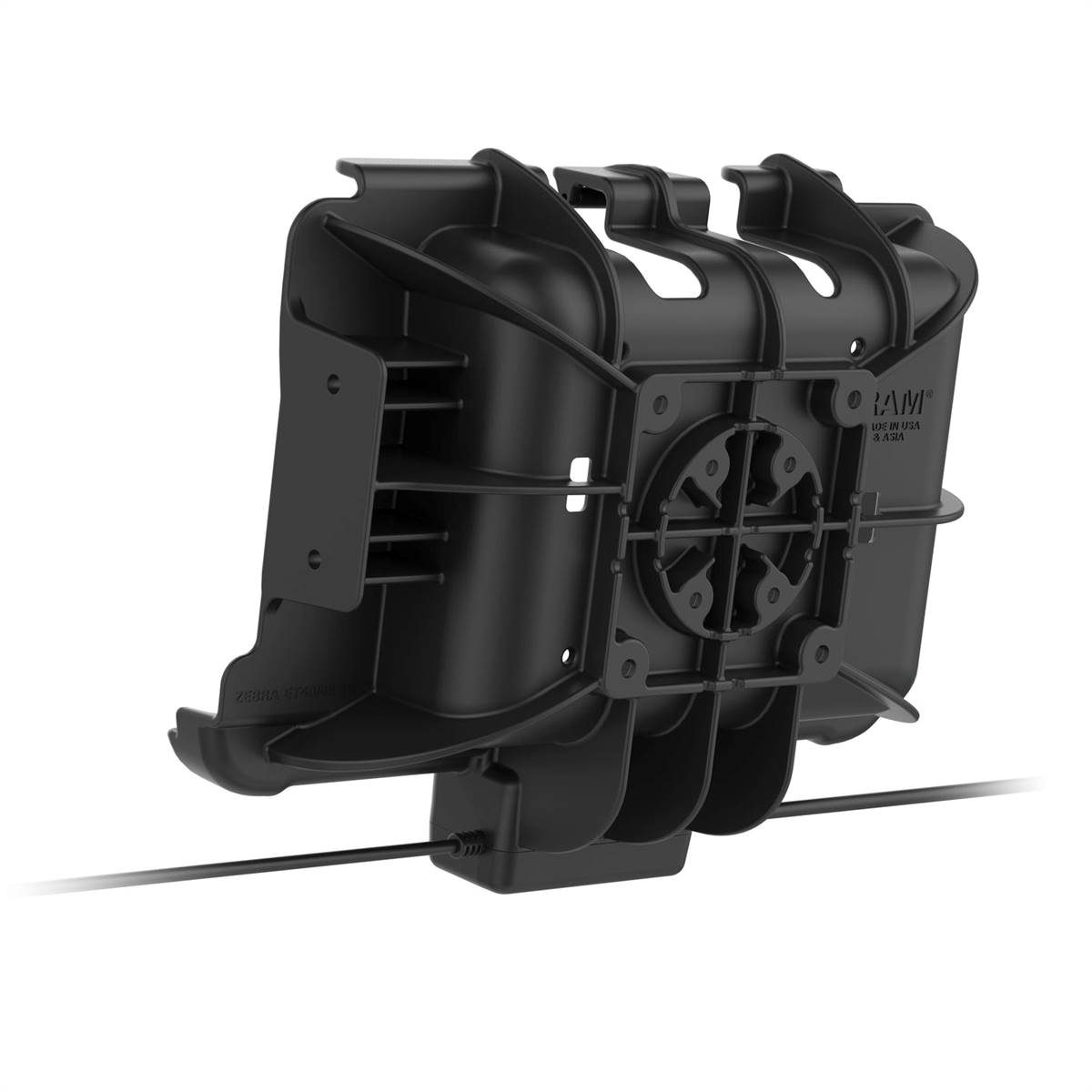

Compatible with C and D size RAM 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability

Built-in 2-hole mounting plate for additional device mounting such as a phone; compatible with RAM 2-hole diamond bases and accessory side bracket

Backed by a 3-year warranty

hardware included
(1) Side bracket for accessory mounting(4) #8-32 x 5/8” Machine Screws(2) #8-32 x 1/2” Machine Screws(6) #8-32 Nylock Nuts(4) #10-24 x 5/8” Machine Screws(2) #10-24 Nylock Nuts(2) Small Cable Ties

hole pattern
75 x 75mm VESA4-Hole AMPS: 1.181" x 1.496"

materials
High strength composite

packaging type
Poly Bag

output voltage
5V - 20V @ 3A

power output
60W

input connector
USB Type-C

input cable length
.21 Meter

output connector
USB 2.0 Type A

output cable length
.24 Meter

transfer speed
12Mbps

certifications
CE Certificatione-Mark CertificationRCM CertificationFCC Certification

Warranty
3 year warranty

Weight
1.48 lb
