Locking GDS Tough-Dock + Dual U

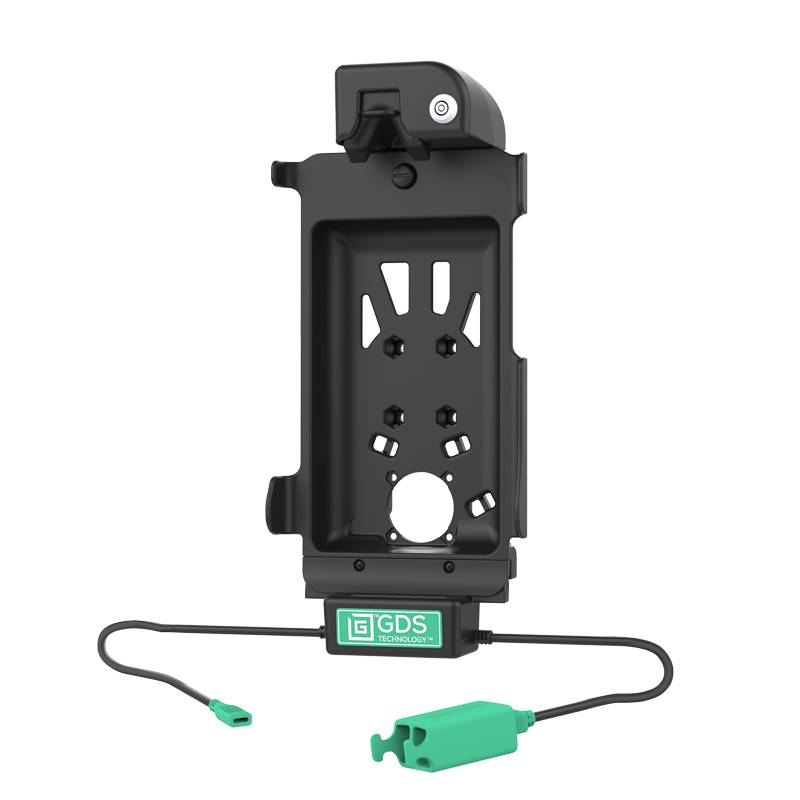

This key-locking GDS Tough-Dock vehicle dock is

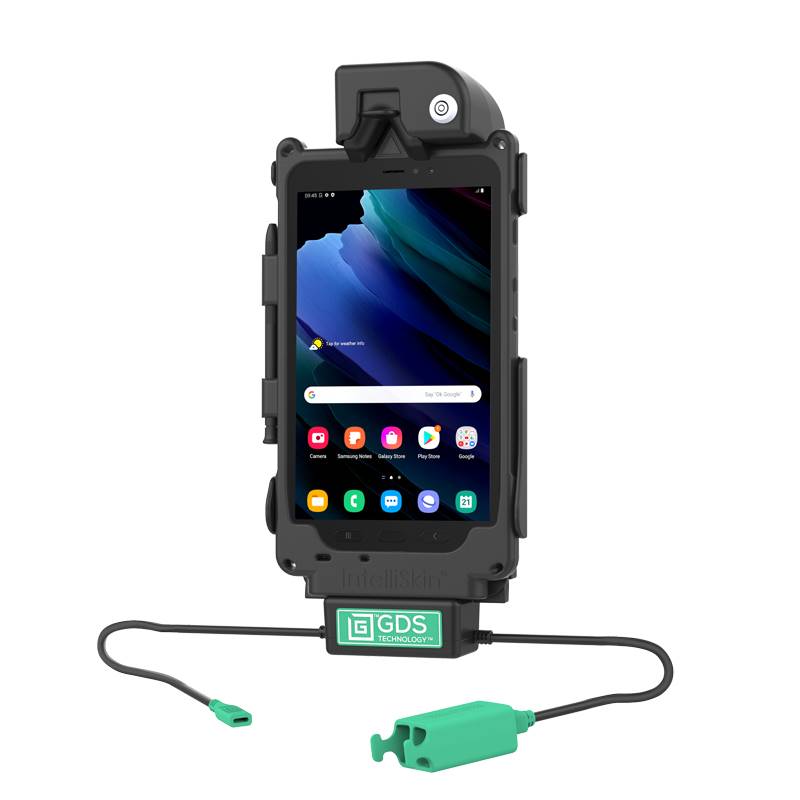

designed to support the Samsung Galaxy Tab Active3 and Tab Active2 in an IntelliSkin Next Gen
protective sleeve for your fleet. While the dock uses a USB Type-C female power connector and integrated
pogo pins to provide power to the device while docked, the GDS Tough-Dock also
includes a USB Type-A connector to support a peripheral add-on such as a keyboard, printer, scanner and
more. The GDS Tough-Dock is compatible with RAM ball and socket
systems using the integrated 4-hole AMPS hole pattern. The GDS Tough-Dock is
backed by a 3-year warranty.

FEATURES

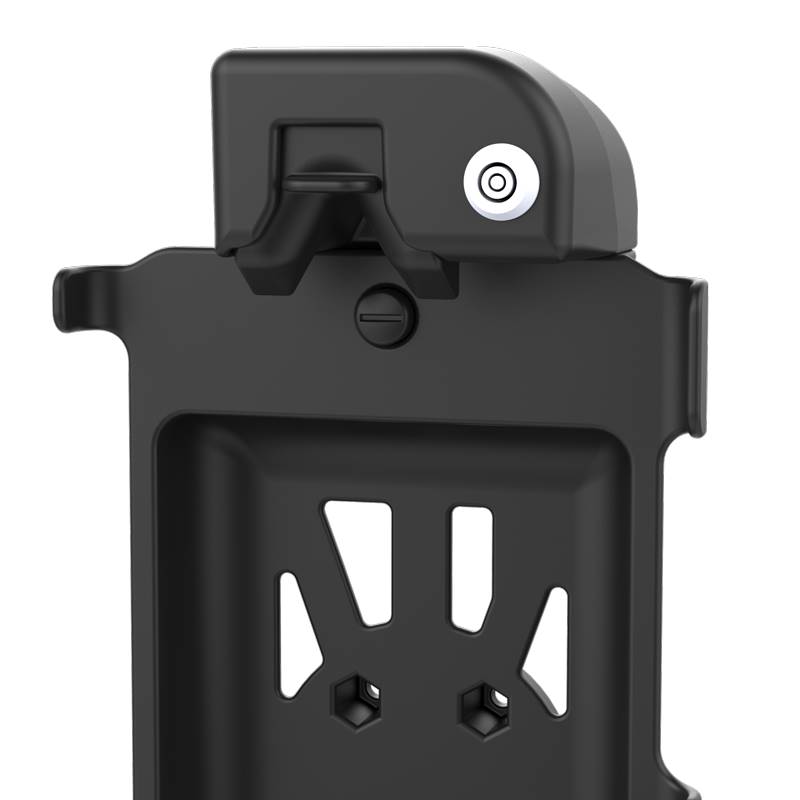

Spring-loaded key-locking vehicle dock featuring GDS Technology uses an integrated pogo pin connector to provide charging and connection to one additional USB peripheral

Designed specifically for the Samsung Galaxy Tab Active3 and Tab Active2 wrapped in an IntelliSkin Next Gen protective sleeve

Incorporated into the bottom docking cup is a USB Type-C Female connector for providing power to the dock and single USB Type-A for peripheral connection

RAM Mounts Compatible and compatible with the GDS Hand-Stand Hand Strap and Kick Stand attachment

Backed by a 3-year warranty

Hardware Included
(4) #8-32 x 5/8 INCHES Machine Screws (4) #8-32 Nylock Nuts (2) Keys

Hole Pattern
4-Hole AMPS: 1.181 INCHES x 1.496 INCHES

Materials
High strength composite

Packaging Type
Poly Bag

Output Voltage
Type-C Tablets: 5V - 12V @ 3A max Peripheral: 5V @ 500mA max

Power Output
15W

Input Connector
USB Type-C USB Type A for 1 Peripheral

Output Cable Length
.21 Meters

Warranty Status
3 year warranty
