RAM-GDS-DOCKL-U5CPU GDS Uni-Conn Powered Locking USB-C Dock with Release Button

RAM-GDS-DOCKL-U5CPU GDS Uni-Conn Powered Locking USB-C Dock with Release Button

Regular price $123.49 USD
Regular price Sale price $123.49 USD
Sale Sold out
UPC:
793442031786
Mfg Part #:
RAM-GDS-DOCKL-U5CPU
Availability:
Out Of Stock
Part Number:
RAM-GDS-DOCKL-U5CPU
Quantity
View full details

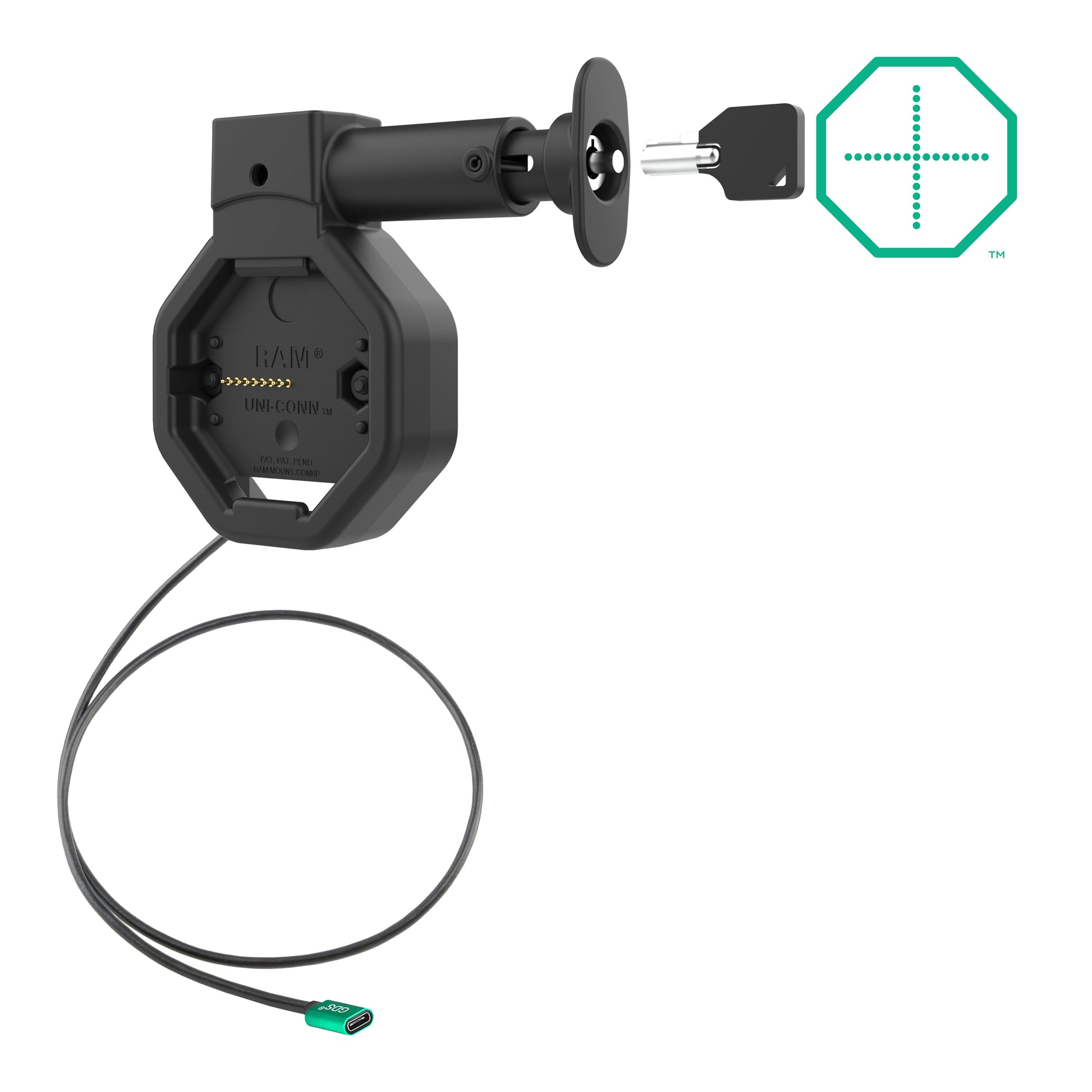

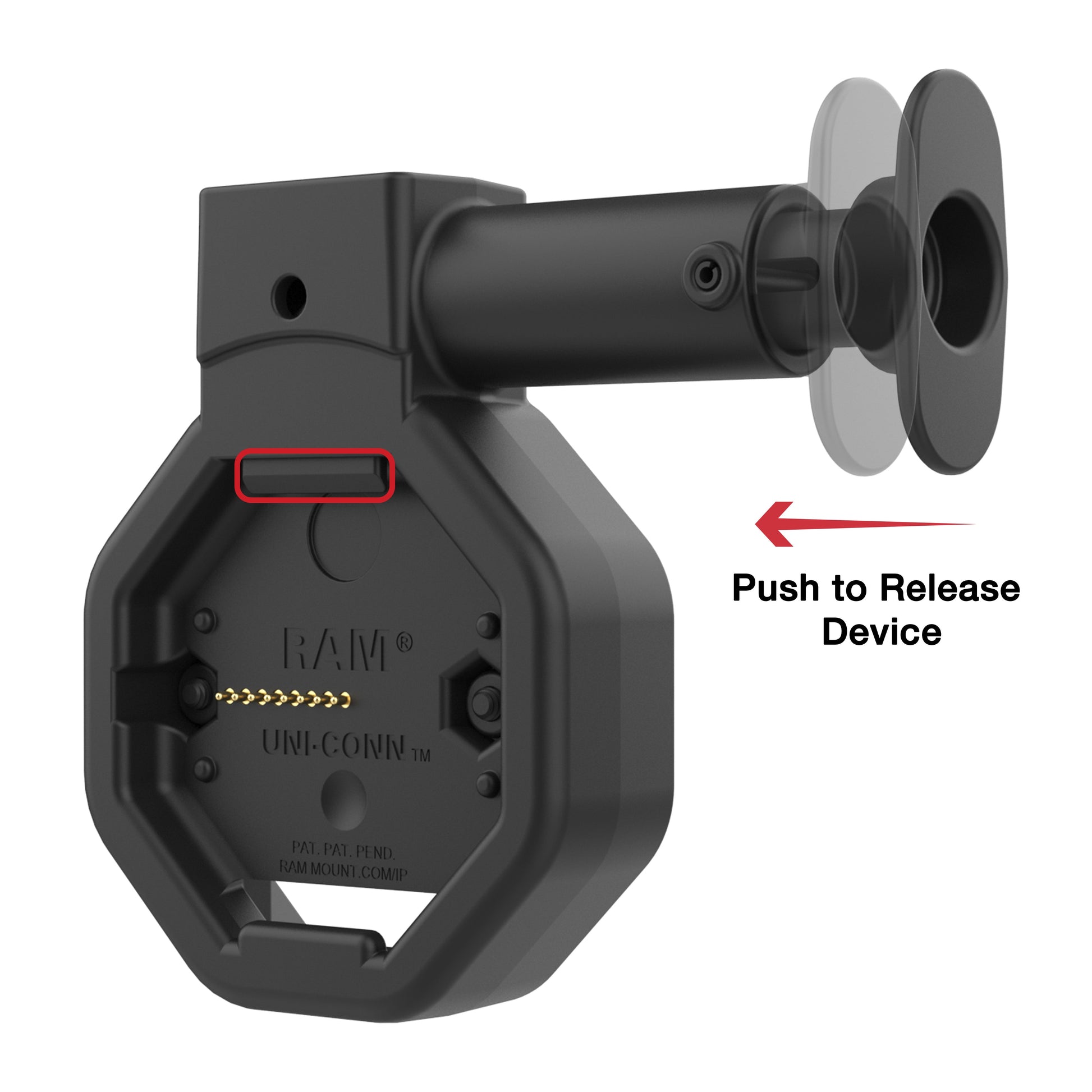

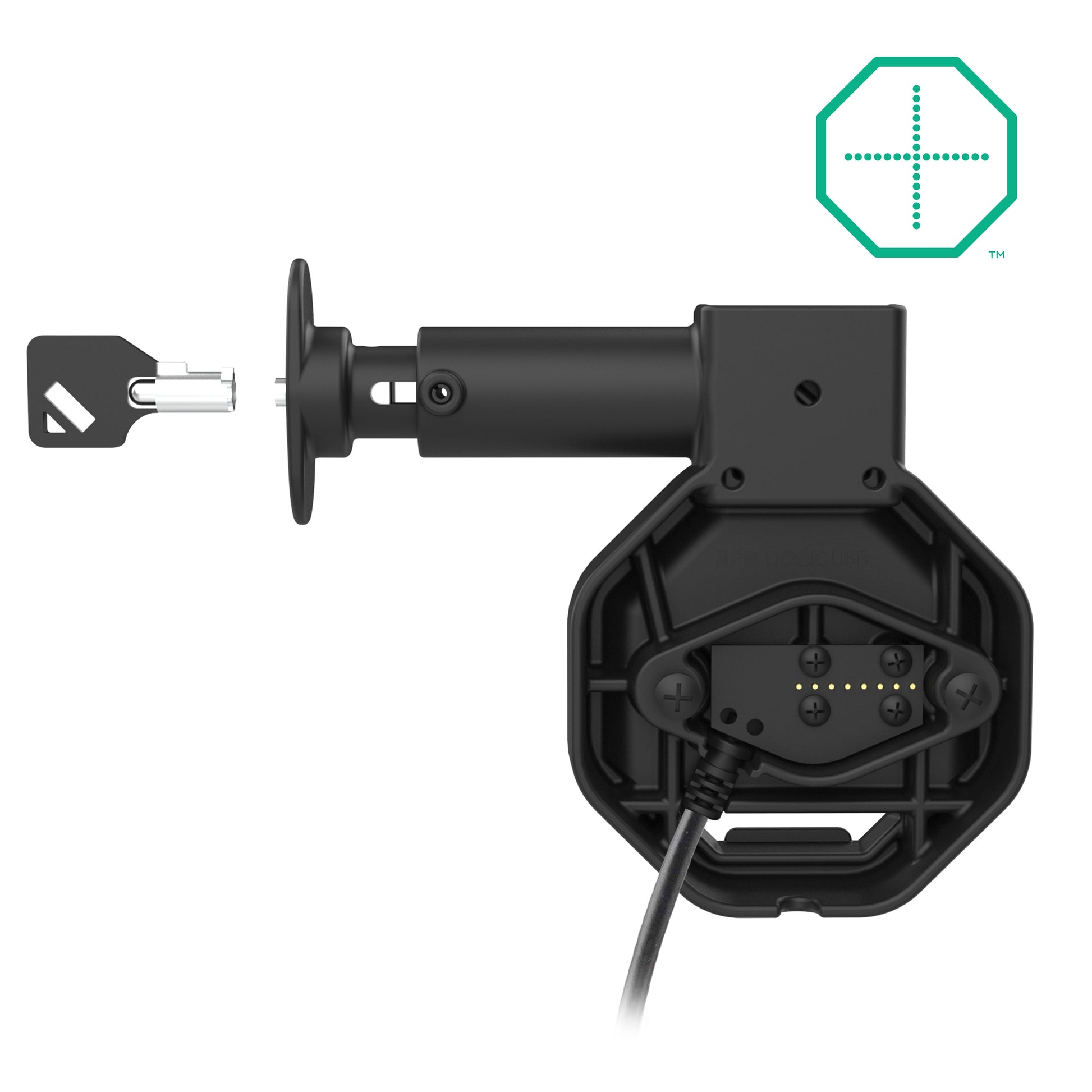

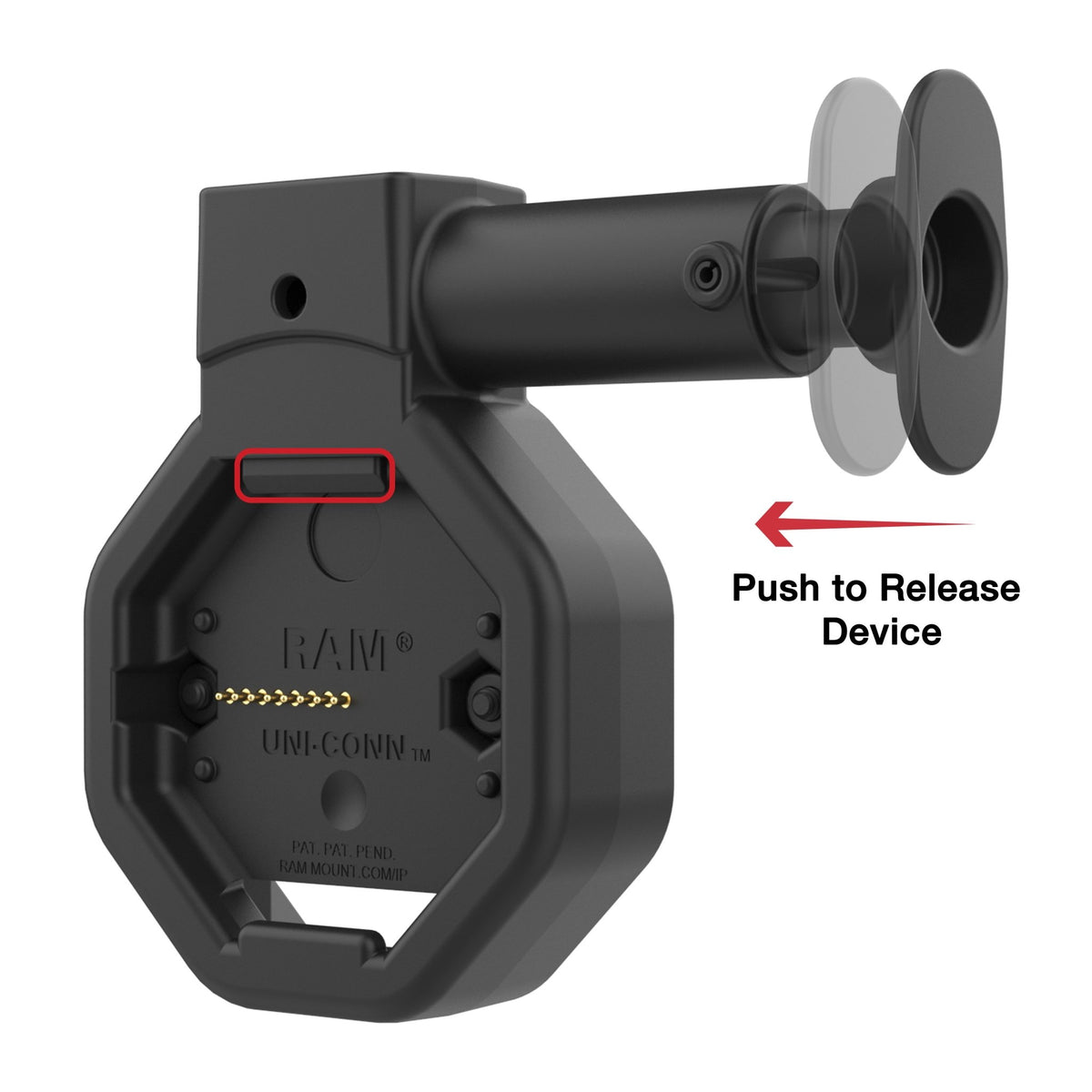

The GDS® Uni-Conn™ Powered Locking USB-C Dock with Release Button (RAM-GDS-DOCKL-U5CPU) is a versatile quick-release docking solution for devices enclosed in an IntelliSkin® with rear pogo pads and includes a key lock for additional theft deterrence. Power is provided to the pogo pins integrated into the GDS® Uni-Conn™ adapter via the USB-C connector. It features an easy docking and undocking process; simply place the IntelliSkin®-wrapped device into the base of the dock and push it to snap into place. When undocking, a simple push of the release button frees the tablet. This dock features a 2-hole AMPS pattern, allowing it to be integrated into the RAM® ball and socket mounting system with a RAM® Diamond or Round Ball Base. The snap-in attachment method makes this dock ideal for rugged environments, including vehicles. The GDS® Uni-conn™ dock is backed by a 3-year warranty. One Dock to Connect Them All™ Always Protected. Always Connected.®

Features

  • Quick-release dock featuring GDS® Technology™ uses an integrated pogo pin connector to provide high-speed charging
  • Designed for devices enclosed in IntelliSkin® with Rear Pogo Pads
  • USB Type-C female connector enables high-speed charging capabilities
  • RAM® Compatible™; complete your solution with a diamond ball adapter, arm, and base of choice
  • Backed by a 3-year warranty

Specifications

Hardware included: (2) Keys, (2) #8-32 x 7/8" Machine Screws, (2) #8-32 Nyloc Nuts

Hole pattern: 2-Hole AMPS: 1.912"

Materials: High strength composite

Packaging type: Poly Bag

Output voltage: USB-C Tablets: 5V - 20V @ 3A Max, mUSB Tablets: 9V @ 1.67A Max

Power output: 60W Max

Input connector: USB Type-C (Female)

Input cable length: 800mm

Warranty: 3 year warranty

Weight: 0.36 lb
