GDS Locking Vehicle Dock for th

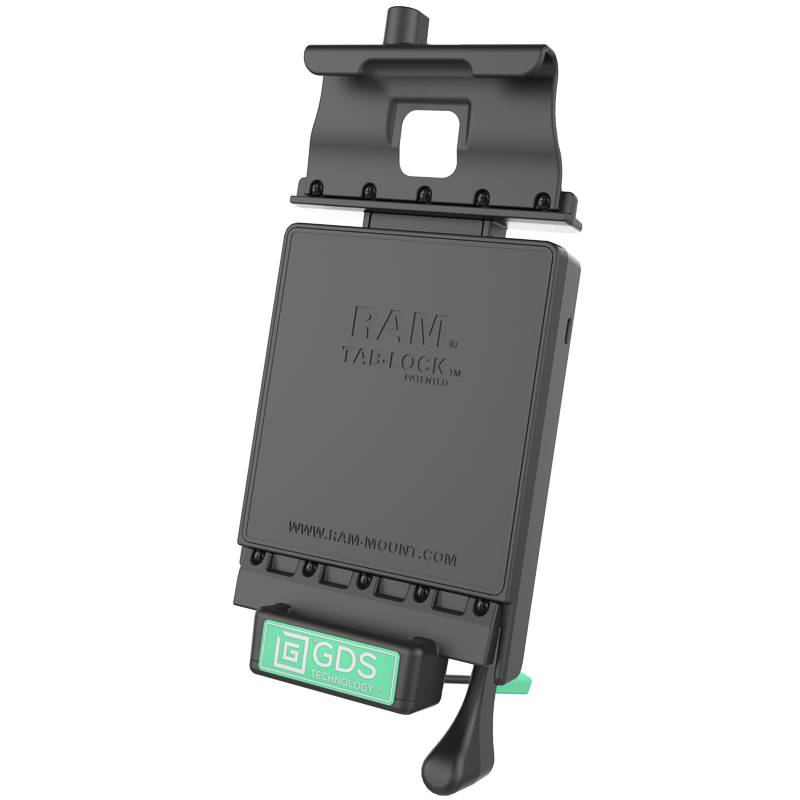

The RAM Locking Vehicle Dock with GDS is a spring loaded, quick release cradle with a keyed lock
that offers a secure fit with easy access to the mounted tablet. This docking station is compatible
with the Samsung Galaxy Tab A 8.0 (2017) with IntelliSkin. The integrated GDS platform enables
data sync and charging capabilities. Without the need to remove the IntelliSkin from the device,
the user can efficiently mount the tablet in the vehicle dock and keep the device charged and locked
in place. This dock is designed to meet the demands of field workers in a variety of applications,
including transportation, field sales, logistics, manufacturing and much more. Compatible Devices:
Samsung Galaxy Tab A 8.0 (2017) with IntelliSkin

HARDWARE INCLUDED
Assembly Hardware
(2) M4 x 32mm Machine Screws
(2) M4 Nylock Nuts
(2) #8 x 5/8" Sheet Metal Screws
(1) Cable Clamp
(2) Keys

HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"

MATERIALS
High strength composite

PACKAGING TYPE
Poly Bag

OUTPUT VOLTAGE
5V - 12V @ 2A

OUTPUT CONNECTOR TYPE
mUSB 2.0

WARRANTY STATUS
3 year warranty

ADDITIONAL INFORMATION
mUSB products supporting USB 2.0/3.0 will have a max current of 1.67A

FEATURES:
GDS Technology offers a universal charging platform for any device wrapped in IntelliSkin

Keyed lock for theft deterrence

Modular design makes upgrading to a new tablet simple and cost effective

Easy, quick release of your tablet for on-the-go applications

Versatility of holder allows for attachment to many RAM mounting solutions


WEIGHT
1.46 lbs.
