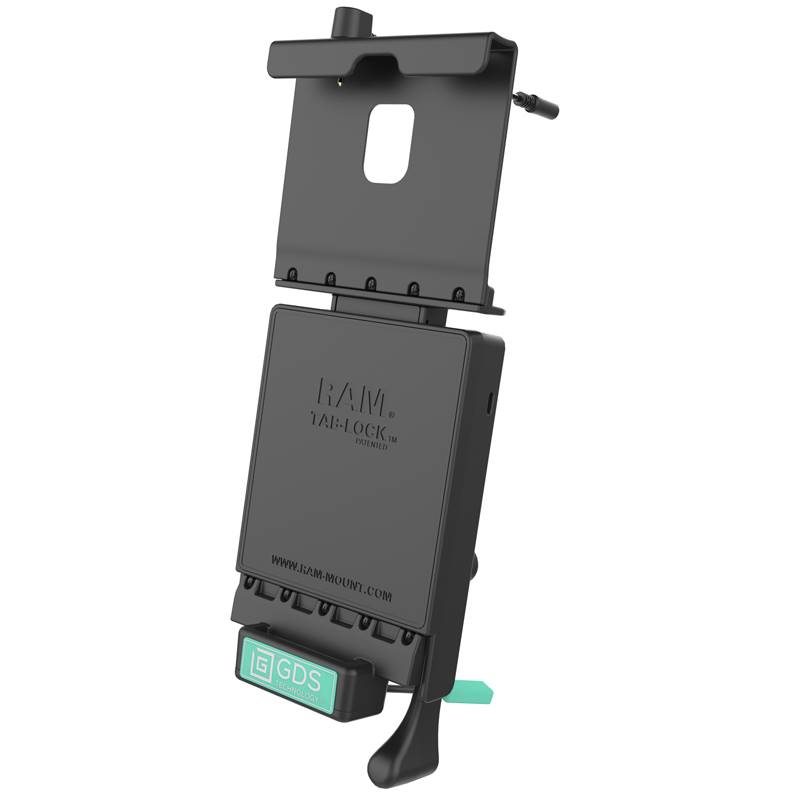

GDS Vehicle Dock with Audi

The RAM Locking Vehicle Dock with GDS is a spring-loaded, quick-release cradle with a keyed lock
that offers a secure fit with easy access to the mounted tablet. This docking station is compatible
with the Samsung Galaxy Tab A 10.5 SM-T590 (Wi-Fi) and SM-T597 (LTE) with IntelliSkin. The
integrated GDS platform enables data sync and charging capabilities. Without the need to remove the
IntelliSkin sleeve from the device, users can quickly and efficiently mount the tablet in the
vehicle dock while keeping the device charged and locked in place. This dock is designed to meet the
demands of field workers in a variety of applications, including transportation, field sales,
logistics, manufacturing, and much more. It features an integrated 90 degree audio jumper cable to
allow for the attachment of an external speaker and microphone. When docked, the tablet can be
connected to a speaker for higher quality audio in a noisy cab or a microphone for push-to-talk
applications. Compatible Devices: Samsung Galaxy Tab A 10.5 with IntelliSkin

HARDWARE INCLUDED
Assembly Hardware
(2) M4 x 32mm Machine Screws
(2) M4 Nylock Nuts
(2) #8 x 5/8" Sheet Metal Screws
(1) Cable Clamp
(2) Keys

HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"

MATERIALS
High strength composite

PACKAGING TYPE
Poly Bag

OUTPUT VOLTAGE
5V - 12V @ 2A

OUTPUT CONNECTOR TYPE
USB Type-C

WARRANTY STATUS
3 year warranty

ADDITIONAL INFORMATION
mUSB products supporting USB 2.0/3.0 will have a max current of 1.67A

FEATURES:
GDS Technology offers a universal charging platform for any device wrapped in IntelliSkin

Keyed lock for theft deterrence

Modular design makes upgrading to a new tablet simple and cost effective

Easy, quick release of your tablet for on-the-go applications

Versatility of holder allows for attachment to many RAM mounting solutions
