GDS Vehicle Dock for the Samsun

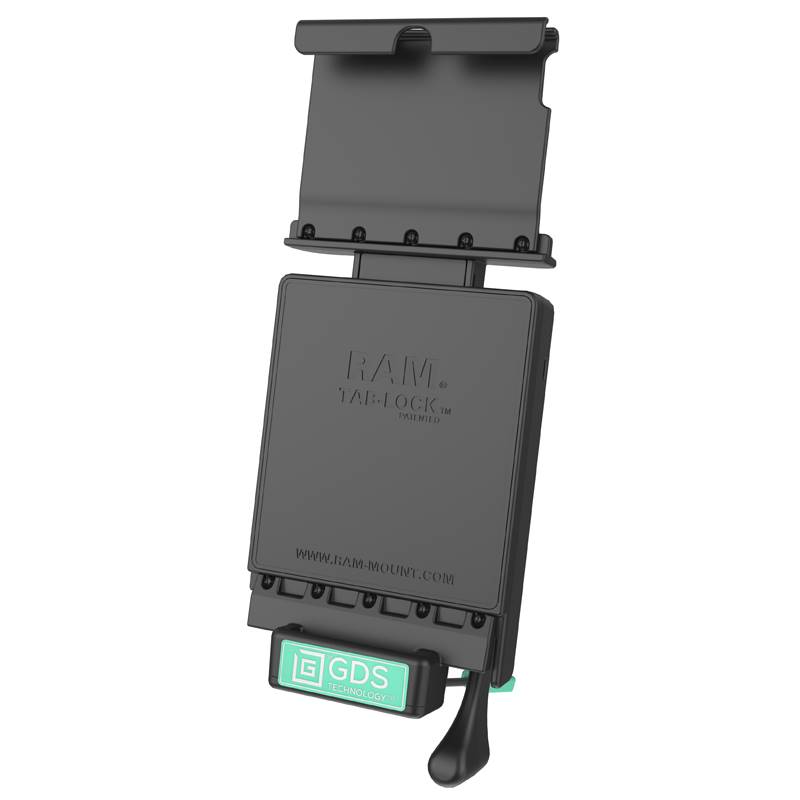

The USB Type-C RAM Locking Vehicle Dock with GDS is a spring-loaded, quick-release cradle with a
keyed lock that offers a secure fit with easy access to the mounted tablet. This docking station is
compatible with the Samsung Galaxy Tab S5e with compatible IntelliSkin, as well as the Samsung
Galaxy Tab A 10.1 (2019) with compatible IntelliSkin. The integrated GDS platform enables data
sync and charging capabilities. Without the need to remove the IntelliSkin sleeve from the device,
users can quickly and efficiently mount the tablet in the vehicle dock while keeping the device
charged and locked in place. This dock is designed to meet the demands of field workers in a variety
of applications, including transportation, field sales, logistics, manufacturing, and much more.
Compatible Devices: Samsung Galaxt Tab S5e SM-T720 & SM-T725 with IntelliSkin Samsung Galaxy Tab
S5e & Tab A 10.1 (2019) SM-T510 & SM-T515 with IntelliSkin

HARDWARE INCLUDED
Assembly Hardware
(2) M4 x 32mm Machine Screws
(2) M4 Nylock Nuts
(2) #8 x 5/8" Sheet Metal Screws
(1) Cable Clamp
(2) Keys

HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"

MATERIALS
High strength composite

PACKAGING TYPE
Poly Bag

OUTPUT VOLTAGE
5V - 12V @ 2A

OUTPUT CONNECTOR TYPE
USB Type-C

WARRANTY STATUS
3 year warranty

FEATURES:
GDS Technology offers a universal charging platform for any device wrapped in IntelliSkin

Keyed lock for theft deterrence

Modular design makes upgrading to a new tablet simple and cost effective

Easy, quick release of your tablet for on-the-go applications

Versatility of holder allows for attachment to many RAM mounting solutions


WEIGHT
1.38 lbs.
