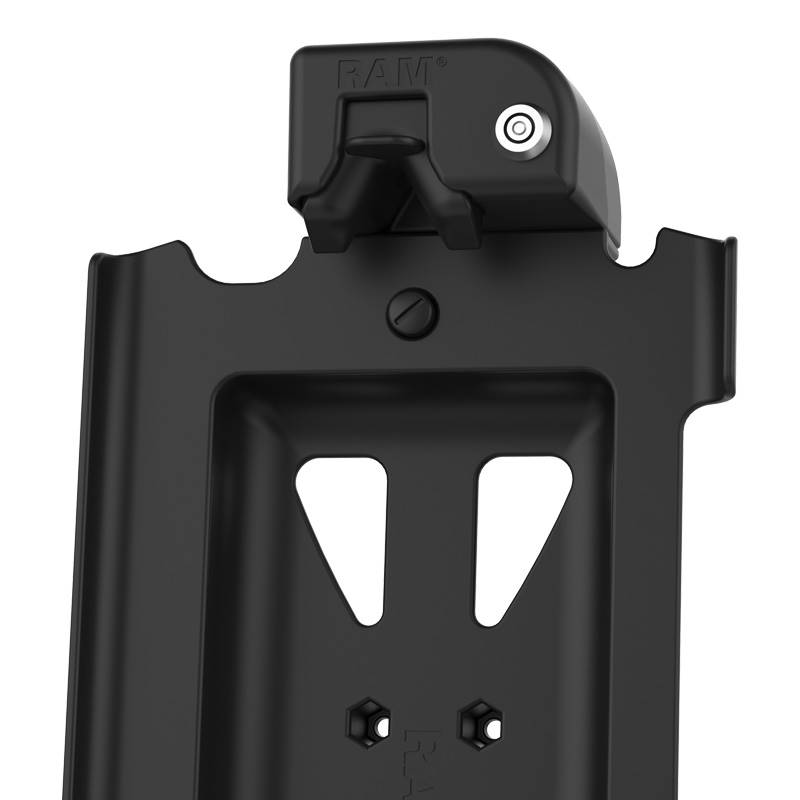

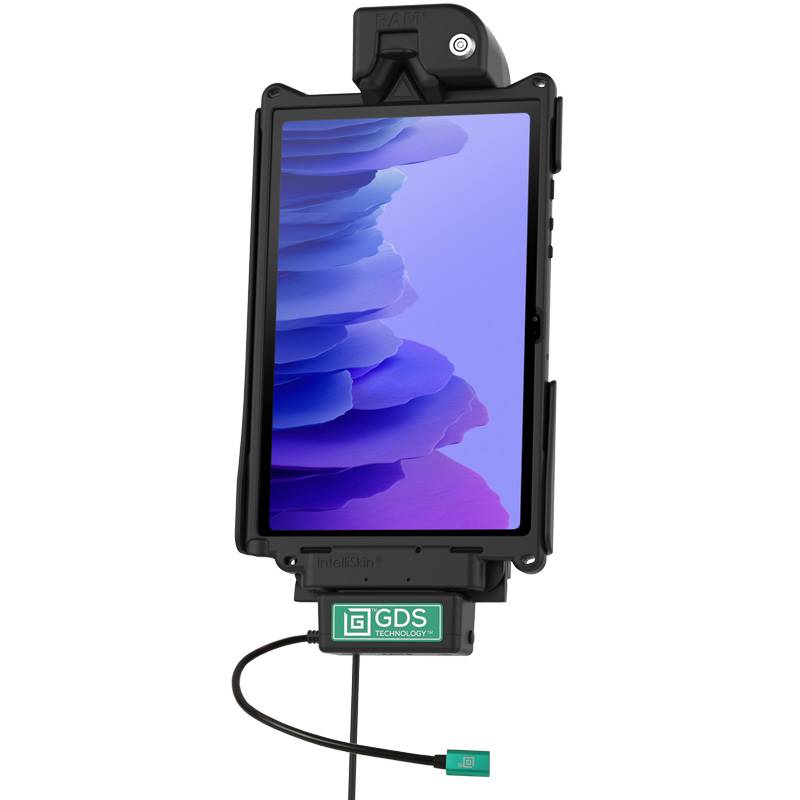

Locking GDS Cool-Dock for Samsu

The GDS Cool-Dock is the upgraded version of the
GDS Tough-Dock including a built-in 12-VDC Axial cooling fan with a 2.2 meter
long hardwire power cord and a keyed locking system. The GDS Cool-Dock is the
turnkey vehicle dock in the GDS Tech line of vehicle docks designed to support
the Samsung Galaxy Tab A7 10.4 (SM-T500 & SM-T505) in a Next Gen IntelliSkin protective
sleeve for your fleet. Using a mUSB power connector, the GDS Cool-Dock supports
data syncing and charging capabilities for the Samsung Galaxy Tab A7 10.4 (SM-T500 & SM-T505). The
GDS Cool-Dock is compatible with RAM ball and socket systems and
requires a 4-hole AMPS pattern ball adapter. The GDS Cool-Dock is backed by a
3-year warranty.

FEATURES

Spring-loaded key locking vehicle dock featuring GDS Technology for charging capabilities; uses mUSB power cord to enable the GDS Cool-Dock

Designed specifically for the Samsung Galaxy Tab A7 10.4 (SM-T500 & SM-T505) in an IntelliSkin Next Gen protective sleeve

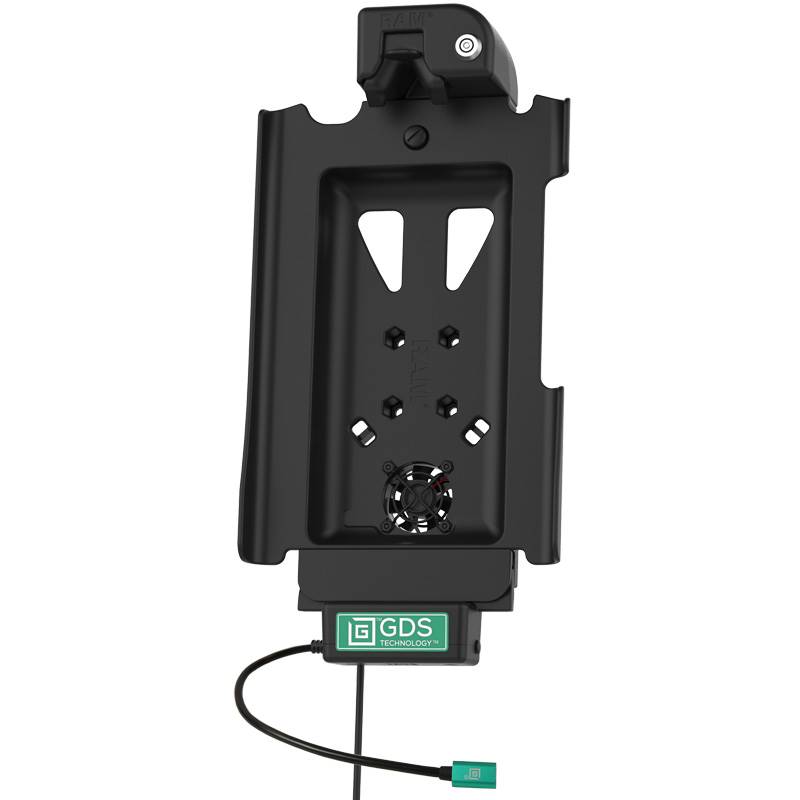

Includes built-in 12-VDC Axial cooling fan with 2.2m long hardwire power cable and SAE quick disconnect for hardwire installation

RAM Mounts Compatible and compatible with the GDS Hand-Stand Hand Strap and Kick Stand attachment

Backed by a 3-year warranty

Hardware Included
(4) #8-32 x 5/8 INCHES Machine Screws (4) #8-32 Nylock Nuts (1) 1.2 Meter mUSB Cable
(1) Cable Clamp (2) Keys

Hole Pattern
4-Hole AMPS: 1.181 INCHES x 1.496 INCHES

Materials
High strength composite

Packaging Type
Poly Bag

Output Voltage
5V - 12V @ 2A

Power Output
15W

Input Connector
mUSB 2.0 Female

Input Cable Length
.35 Meter

Warranty Status
3 year warranty

Additional Information
Note:mUSB products supporting USB 2.0/3.0 will have a max
current of 1.67A.
