GDS® Uni-Conn™ Locking PTT Remote Speaker Mic Bundle for Zello
GDS® Uni-Conn™ Locking PTT Remote Speaker Mic Bundle for Zello
Couldn't load pickup availability
Share
- Description
COMING SOON Approx. NOV 2026
Pricing will be updated.

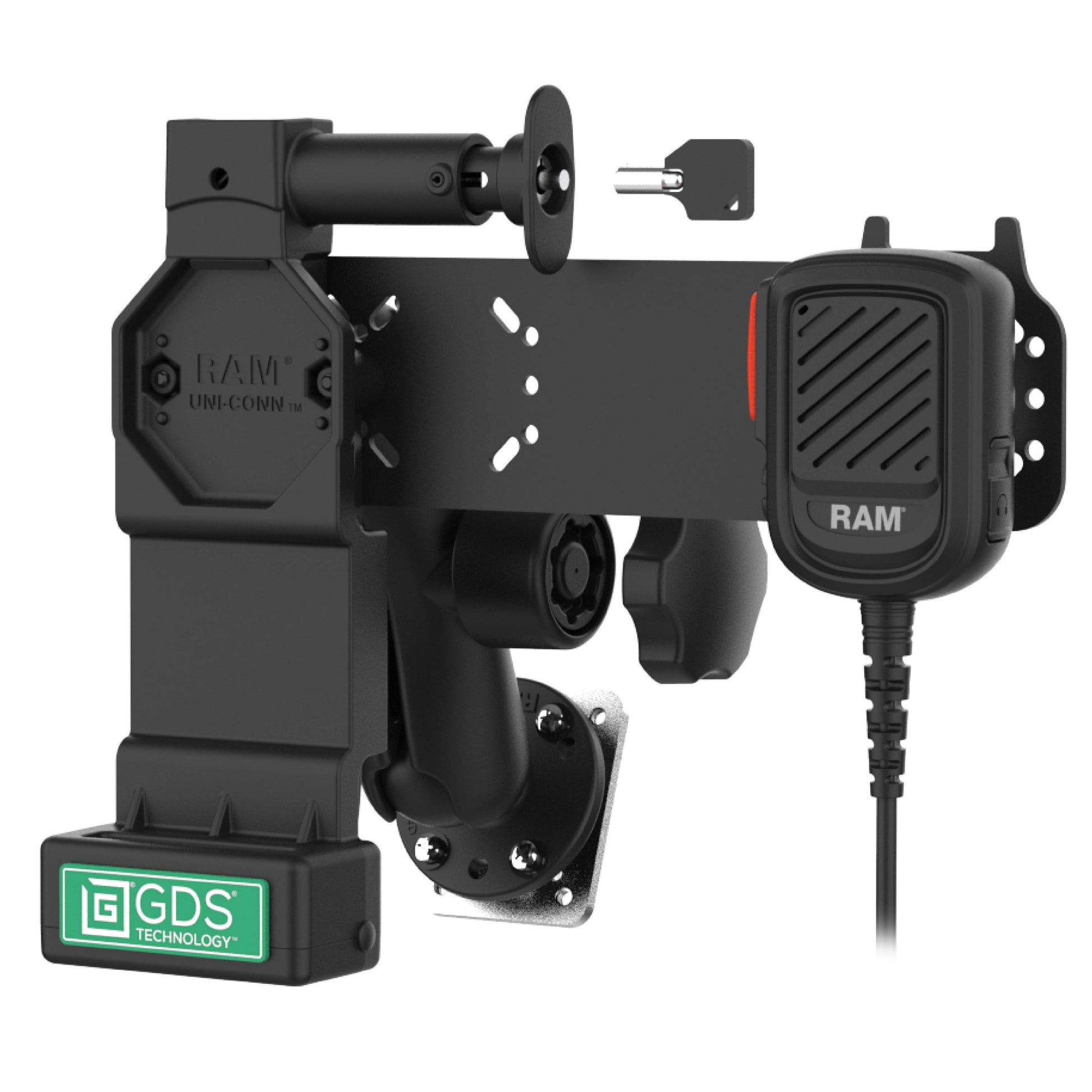

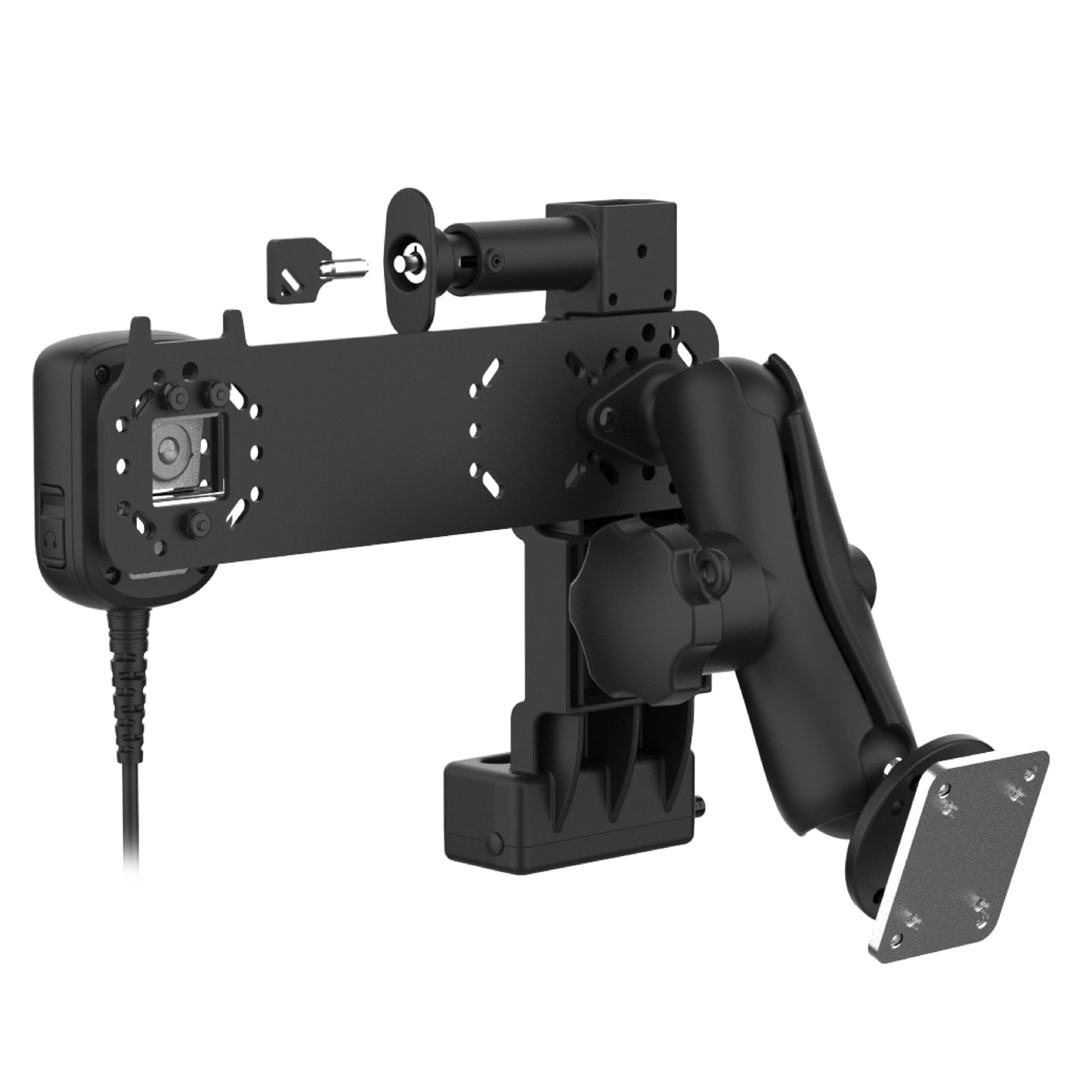

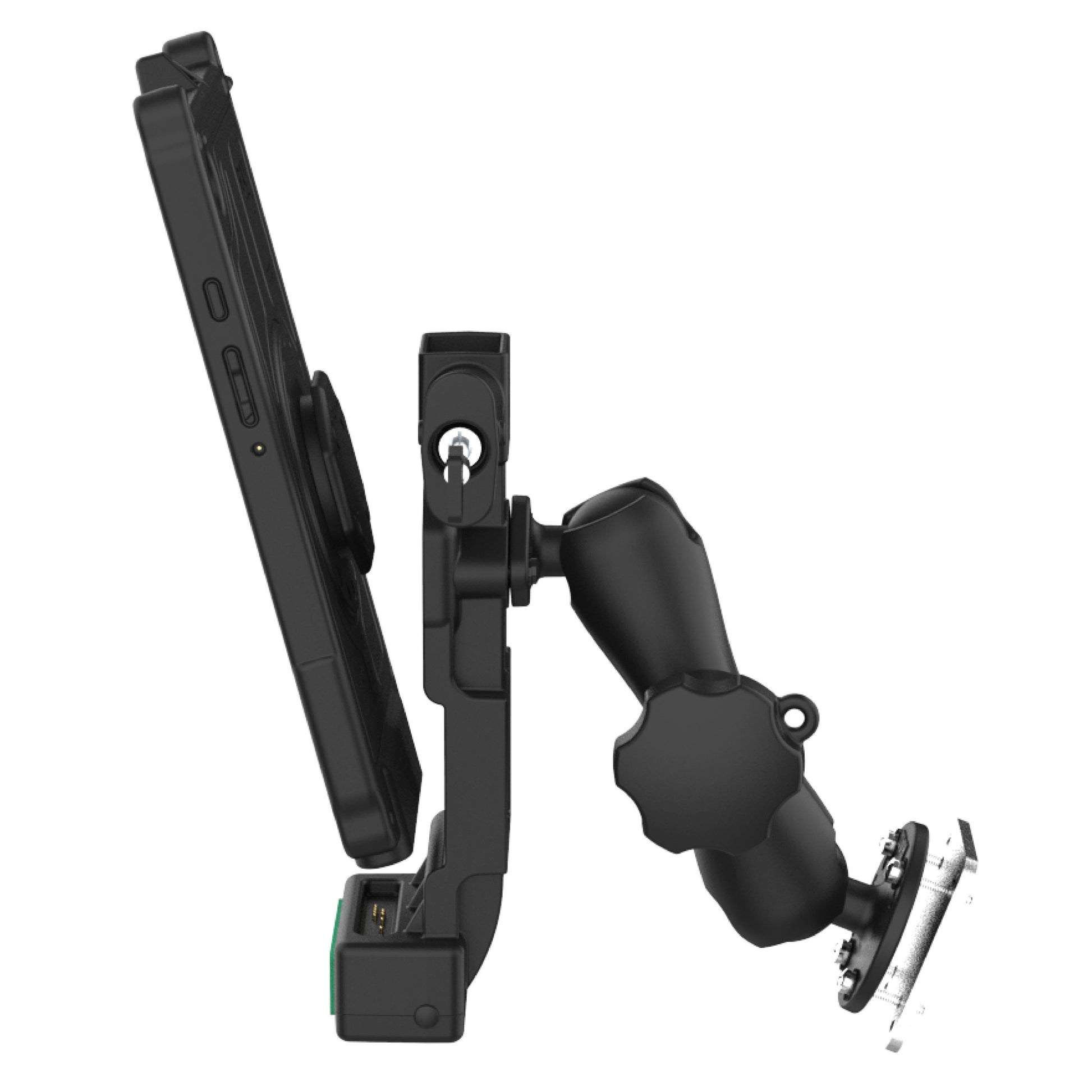

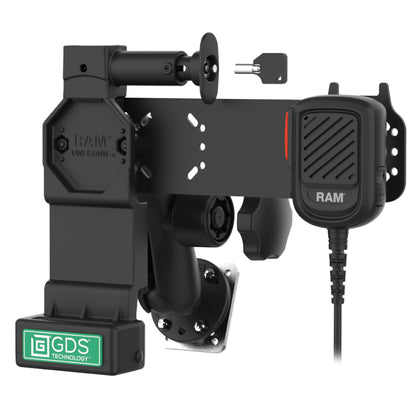

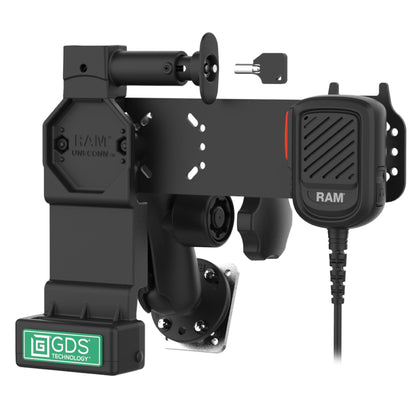

The GDS® Uni-Conn™ Locking PTT Remote Speaker Mic Bundle for Zello (RAM-GDS-U4L-RSM-A07) delivers everything you need to enable reliable Push-to-Talk over Cellular (PoC) in your fleet. This bundle does not include an IntelliSkin®, ideal for organizations already using IntelliSkin® device sleeves or deploying a mixed-device fleet within the GDS® Ecosystem™. It includes the universal Uni-Conn™ locking dock with side release button, drill-down base with backing plate, microphone bracket, microphone clip, and a rugged USB-C Remote Speaker Microphone (RSM). Compatible with Zello, the RSM ensures clear, instant communication for fleets, first responders, logistics teams, and mobile workforces. Plus, with locking knobs for theft deterrence, your hardware stays protected in the field.
Features

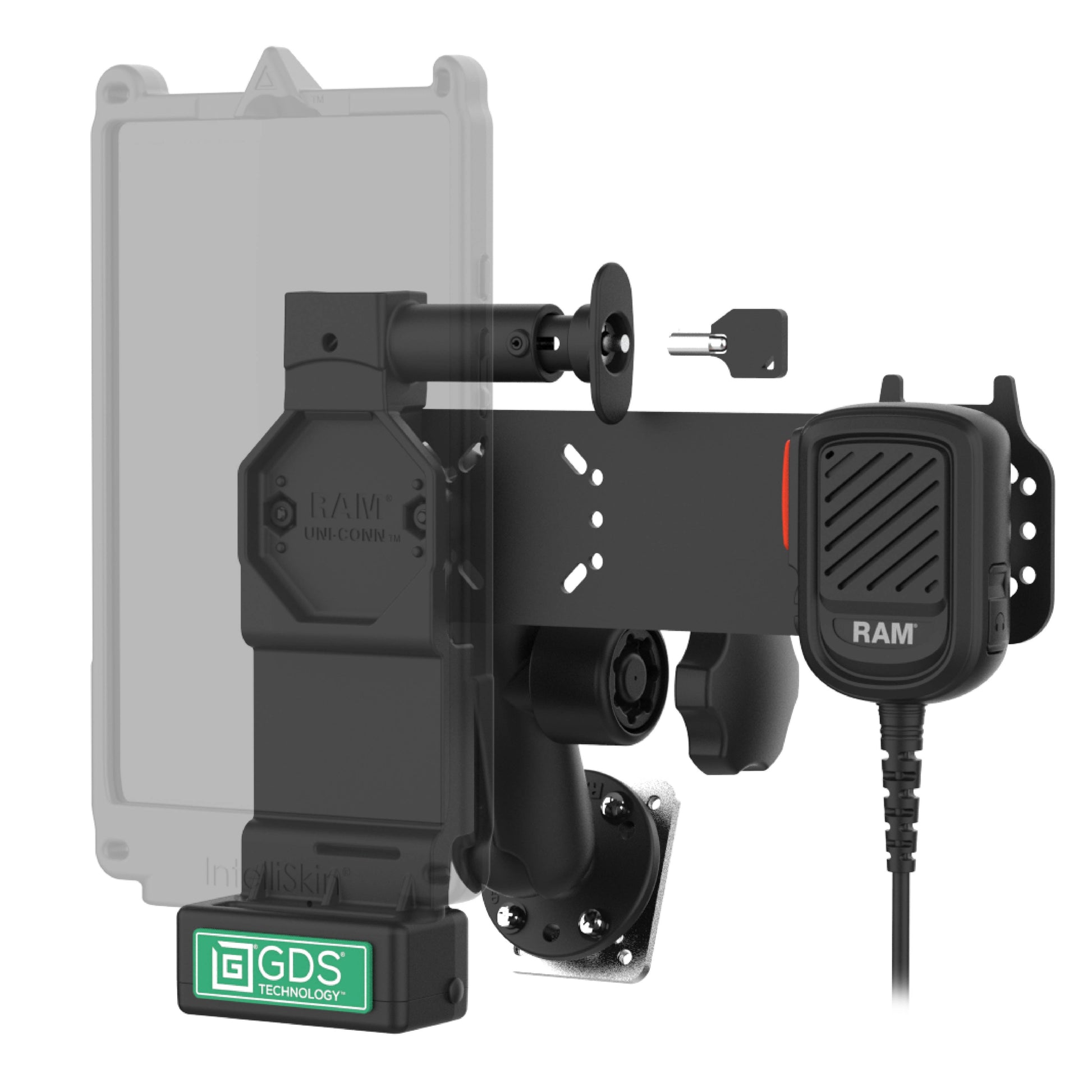

- GDS® Uni-Conn™ Push-to-Talk mounting bundle designed for devices wrapped in an IntelliSkin® protective sleeve with GDS® Uni-Conn™ Adapter installed (sold separately)
- Uses a USB-C connector for reliable push-to-talk (PTT) or PTT over Cellular (PoC) when paired with a RAM® tablet or phone dock
- Uni-Conn™ dock featuring GDS® Technology™ uses an integrated pogo pin connector to provide high-speed charging

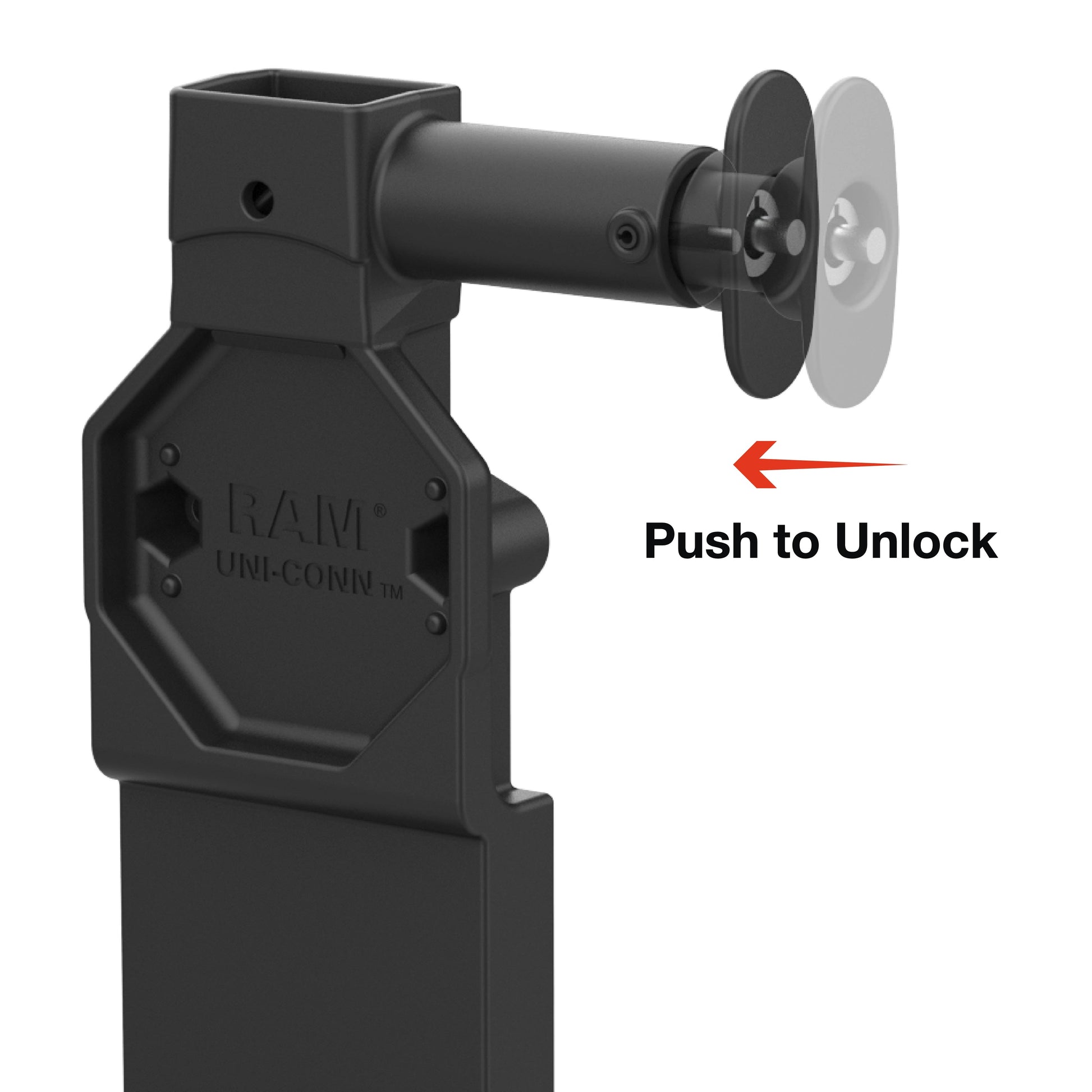

- Locking dock and knob provide theft deterrence for added security
- Mounting components backed by a lifetime warranty; electronics backed by a 3-year warranty
Specifications

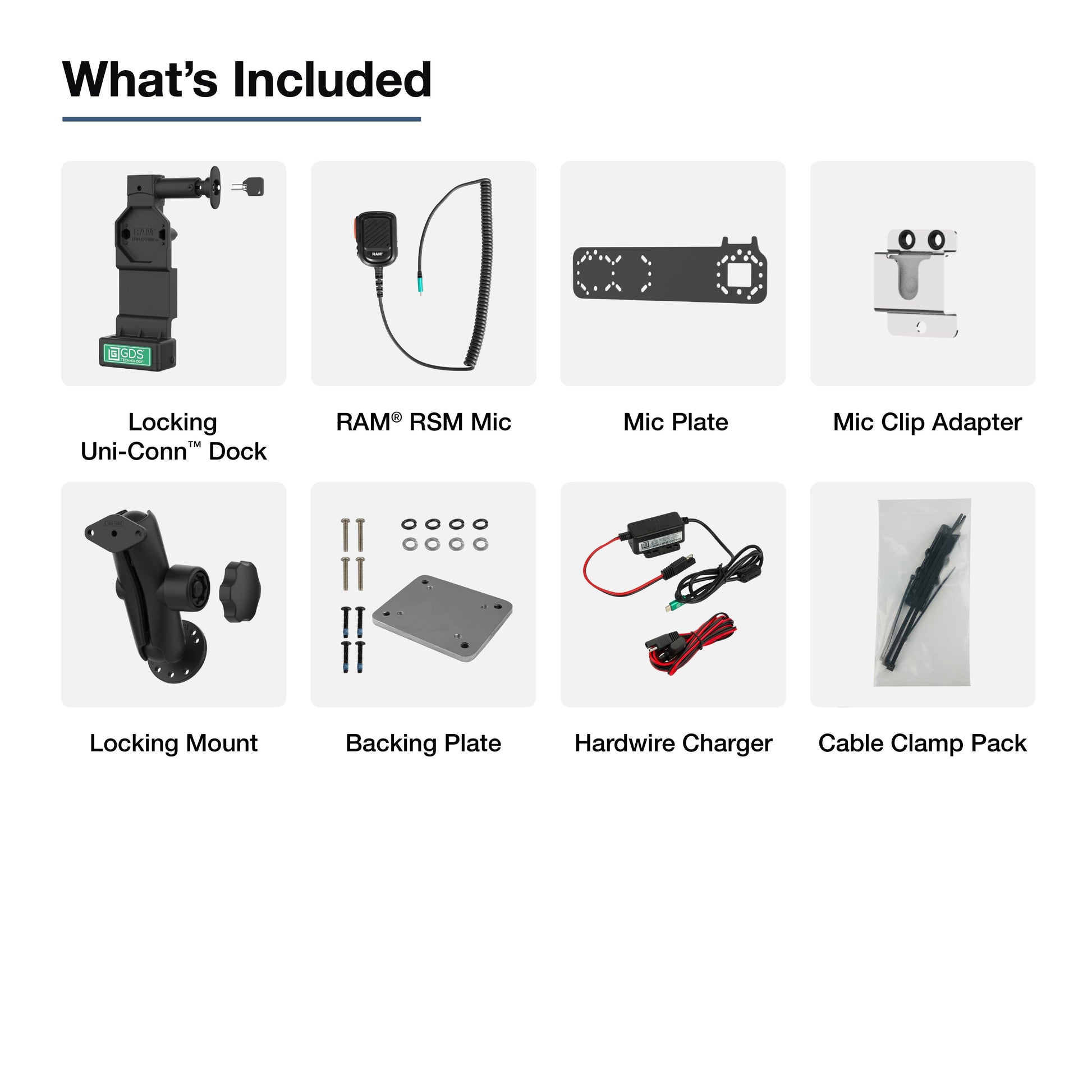

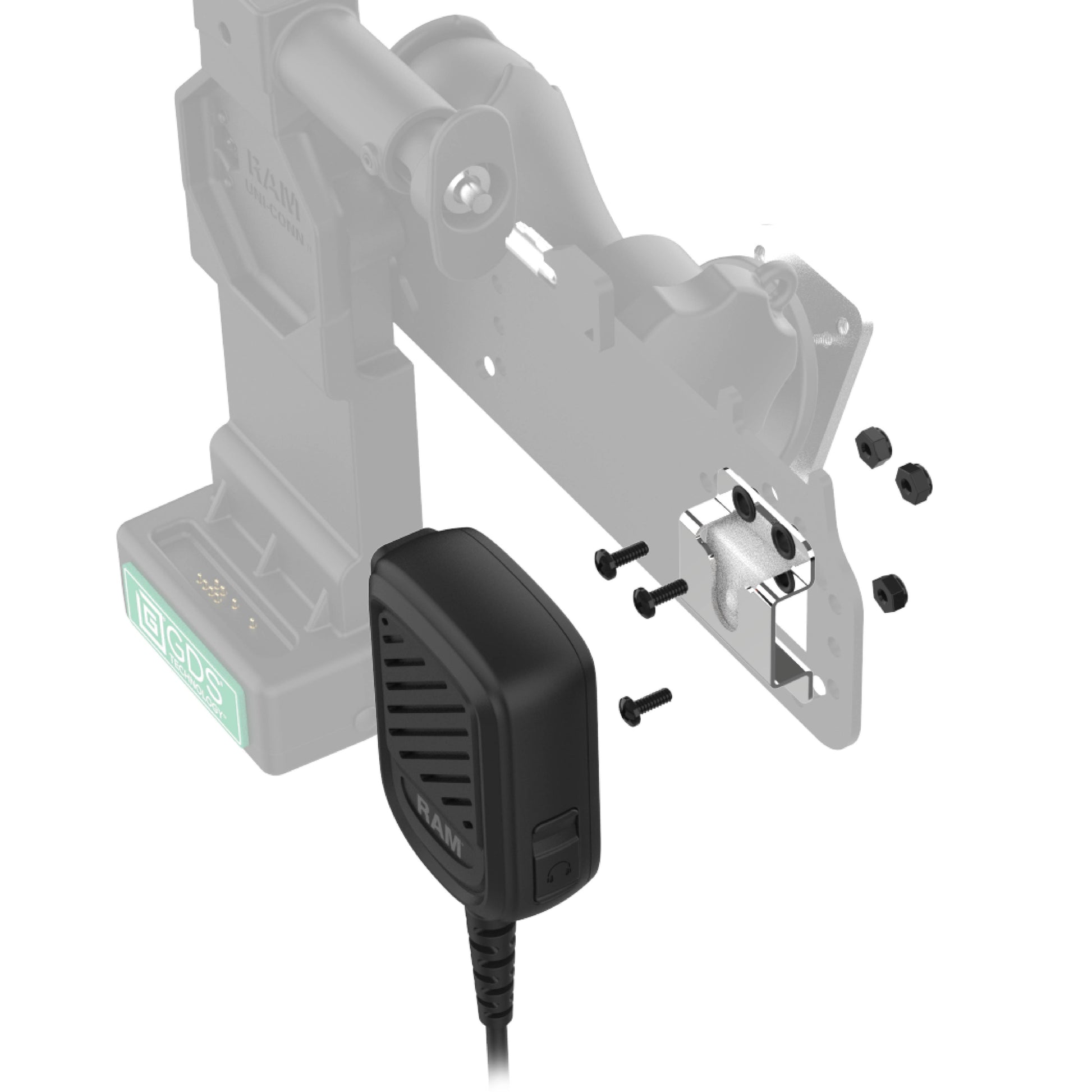

- Hardware included: (1) Remote Speaker Mic, (1) Uni-Conn™ Dock (Locking), (1) Mic Bracket, (1) Mic Clip Receiver, (1) Double Ball Mount with Backing Plate, (1) Hardwire Charger, (2) Cable Clamp Kits
- Socket to socket length: 4.66"
- Hole pattern: 4-Hole AMPS: 1.181" x 1.496", 3-Hole 120-Degree: 1.812" Diameter
- Ball size: C Size (1.5")
- Materials: Steel, Marine-grade aluminum, High strength composite
- Packaging type: Box
- Power specifications: Remote Speaker Mic: Operating Voltage: 1.2VDC - 5VDC, Current Consumption 100UA - 500UA, Output Impedance @ 1KHZ Max 2.2K Ohms, Signal to Noise Ratio: 1KHZ 60+ DB, Max Input SPL 110DB, Moisture Ingress Rating IP67
- Input voltage: 10-30VDC
- Output voltage: 12VDC
- Power output: 25W
- Input connector: USB Type-C, USB Type-C for 1 Peripheral
- Input cable length: 215mm
- Output cable length: 215mm
- Peripheral output: 500mA
