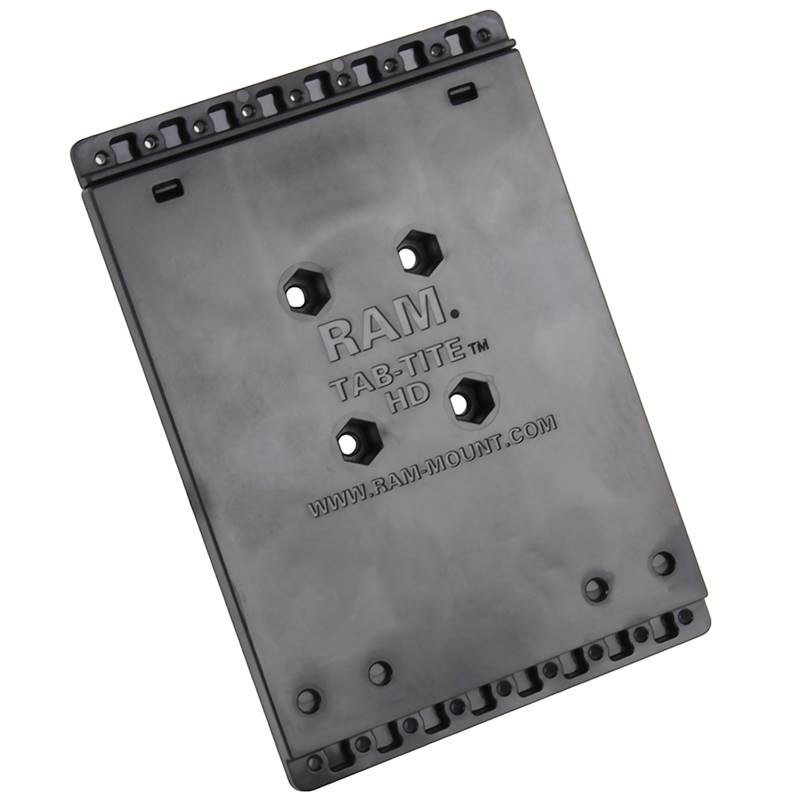

RAM Tab-Tite Backplate with Fixed Mounting

The RAM Tab-Tite HD spring loaded backing plate is known for providing quick and easy insertion
and removal of a tablet but sometimes you want to leave your device where it’s at. The RAM-HOL-ACNU
is an alternative configuration that allows the user to fix their tablet in place. This
configuration is ideal for high vibration environments or use cases where the tablet needs to remain
fixed in the vehicle with a low profile mount for a low cost. During the assembly process, two nuts
are inserted into the slots on the back of the Tab-Tite HD. The included Phillips screws are
attached to the nuts and tightened, fixing the spring adjustment feature in place. The RAM Tab-
Tite HD is compatible with over 40 sets of end cups to accommodate a wide range of tablets, with or
without a case. The Tab-Tite HD is compatible with GDS end cups allowing you to charge and secure
your device.

HARDWARE INCLUDED
(2) #4-40 x 3/8" Machine Screws
(2) #6 Fender Washers
(10) #4 x 3/8" Sheet Metal Screws
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts

HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"

MATERIALS
High strength composite

PACKAGING TYPE
Poly Bag

FEATURES:
Compatible with all RAM Tab-Tite and GDS end cups to support tablets for various sizes

Low profile fixed mounting option

Includes Phillips screws to fix your tablet in place

Easily upgrade to new devices by switching the end cups


WEIGHT
0.35 lbs.
