RAM Power + Data Dock for Honeywell RT1
RAM Power + Data Dock for Honeywell RT1
Regular price
$190.99 USD
Regular price
Sale price
$190.99 USD
We have new inventory arriving weekly, If you see low or no inventory it may change tomorrow. Please call us at 1.800.789.0087 or email us at sales@custommounts.com for current inventory status.
UPC:
793442015373
Mfg Part #:
RAM-HOL-HON9PDU
Availability:
Out Of Stock
Part Number:
RAM-HOL-HON9PDU
Quantity
Couldn't load pickup availability
Share
- Description

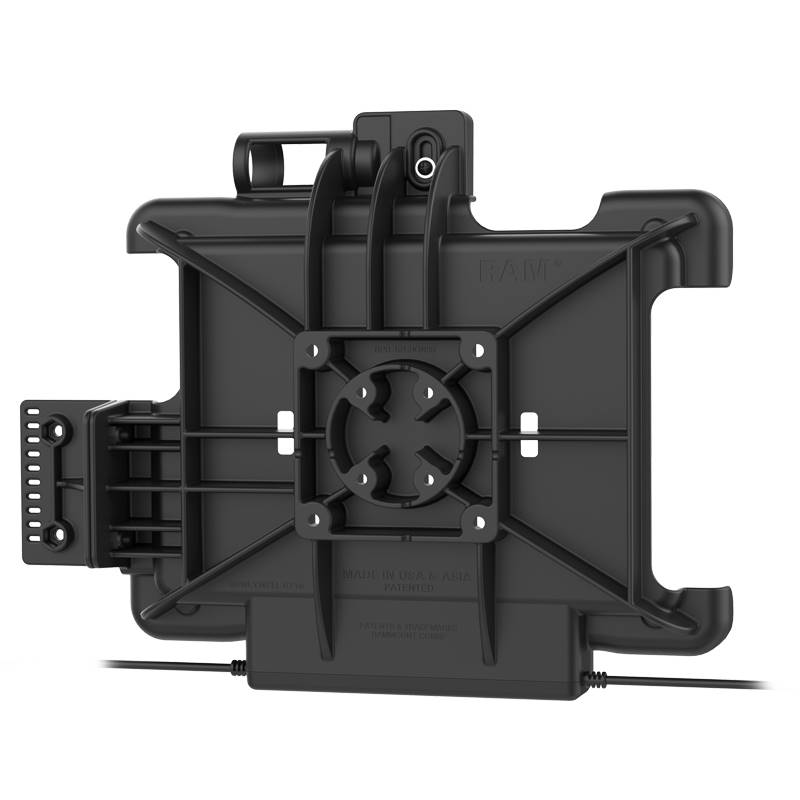

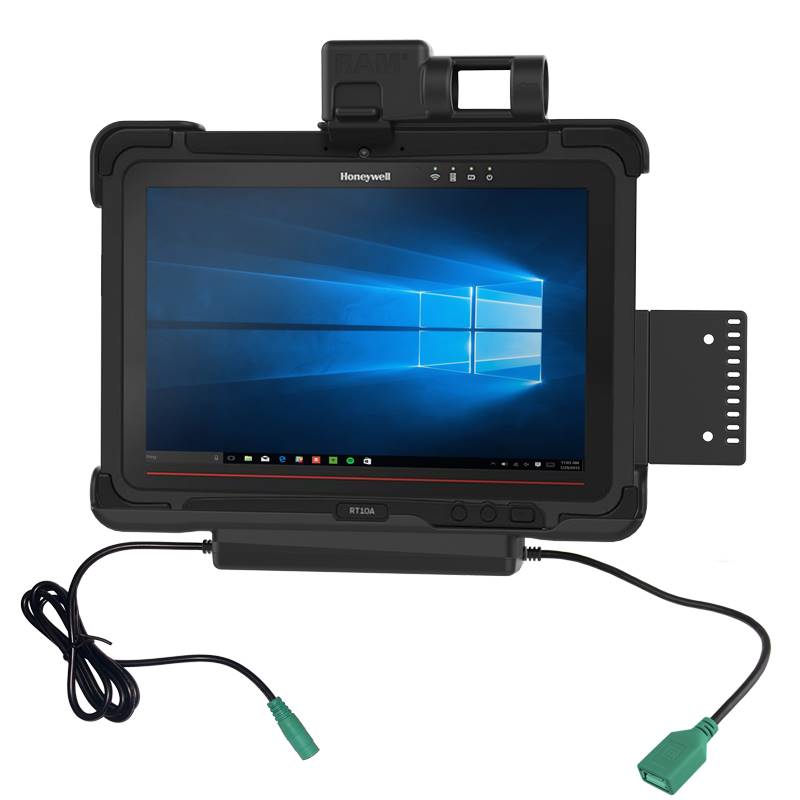

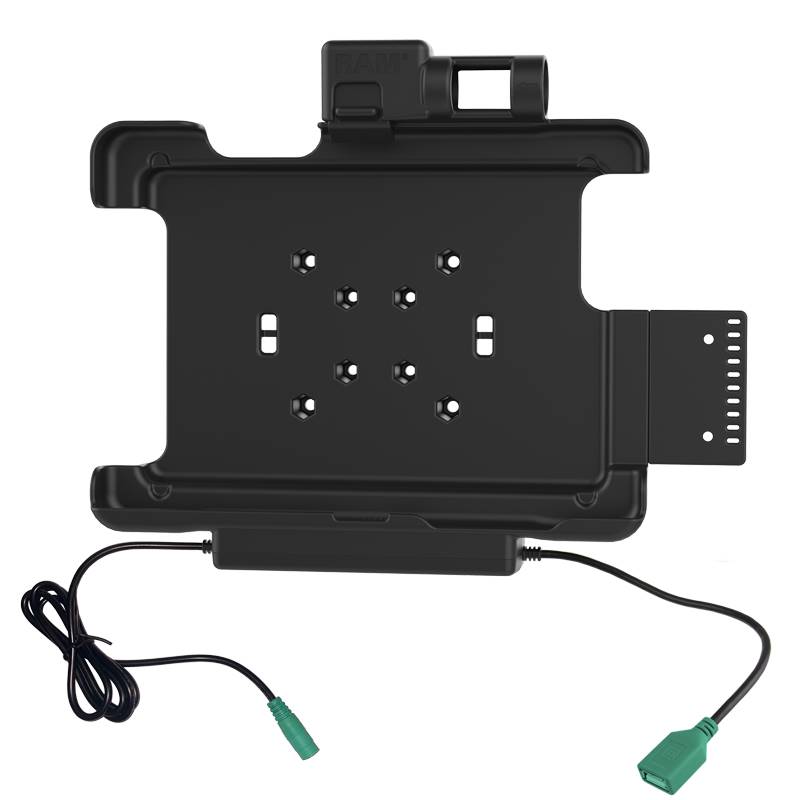

Featuring a key lock for theft deterrence, the RAM Vehicle
Dock for the Honeywell RT10 rugged tablet allows you to keep the device charged through the pogo pin
contacts when the device is docked—power is provided by connecting to the dock's 5.5mm DC power jack.
The dock also allows the tablet's scanning function to work through the cutout on the back which also
accommodates tablet add-ons such as scanner, hand strap, and extended battery pack. This vehicle dock is
compatible with C and D size RAM 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching
a double socket arm in order to complete your mounting solution. Take the solution a step further by
taking advantage of the built-in 2-hole mounting plate compatible with RAM 2-hole diamond
base for additional device mounting such as a phone, or other handheld device. An included optional
accessory bracket will allow you to connect RAM 2-hole diamond bases for device mounting and
features a cable management system.
FEATURES
Key locking powered dock provides charging capabilities for the Honeywell RT10 rugged tablet via DC 5.5mm power jack
When connected to a power source, integrated pogo pins provide power to the device while docked; Dock accommodates tablet add-ons such as scanner, hand strap, and extended battery pack; tablet scanning works while tablet is docked
Compatible with RAM 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
Built-in 2-hole mounting plate for additional device mounting such as a phone; compatible with RAM 2-hole diamond bases and accessory side bracket
Backed by a 3-year warranty
Hardware Included
(2) Keys (1) Side bracket for accessory mounting and strain relief (4) #8-32 x
5/8” Machine Screws (2) #8-32 x 1/2” Machine Screws (6) #8-32 Nylock Nuts (4) #10-24 x 5/8”
Machine Screws (4) #10-24 Nylock Nuts (4) Small Cable Ties
Hole Pattern
75 x 75mm VESA 4-Hole AMPS: 1.181 INCHES x 1.496 INCHES
Materials
High strength composite
Packaging Type
Poly Bag
Input Connector
5.5mm DC Connector
Weight
1.85 lbs.
Warranty Status
3 year warranty
