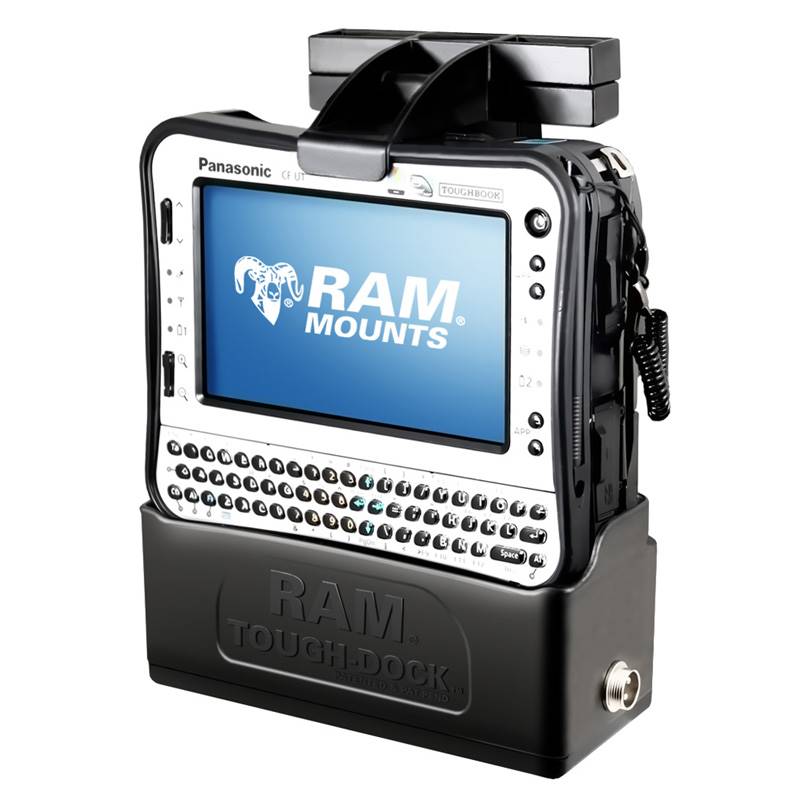

RAM-HOL-PAN4PU RAM Tough-Dock for Panasonic Toughbook C

You already know the Panasonic CF-U1 is designed to survive a four-foot drop, but why put it in a
situation where that can happen? RAM is your number one source for mounting solutions custom
tailored to Panasonic Laptops, Tablets, and of course, UMPC’s. Our new cradles for the CF-U1 are
everything you’d expect from RAM; an amazing design, simple to use, and as rugged as the CF-U1
itself. With RAM, you have universal mounts, vehicle specific, as well as the freedom to build what
you want for a custom solution. No matter where the road, trail, or sky takes you, RAM has the
perfect mounting solution that is everything you need, and nothing you don’t. You’ve chosen the
Panasonic U1 for the freedom it provides. Don’t restrict it by choosing a mounting system that isn’t
up to the task. Choose wisely, choose RAM! Included is a set of four nuts and bolts to connect the
cradle to any RAM components or mounts that contain the universal AMPs hole pattern.

HARDWARE INCLUDED
Assembly Hardware

HOLE PATTERN
75 x 75mm VESA

MATERIALS
High strength composite

PACKAGING TYPE
Poly Bag

PORTS
(5) USB Type A Ports
(1) DB9 Port
(1) VGA Output
(1) RJ45 LAN Connector
(1) DC Input

WARRANTY STATUS
3 year warranty

ADDITIONAL INFORMATION
Regulatory Approvals: CE FCC TUV-CB e-Mark

WEIGHT
2.75 lbs.
