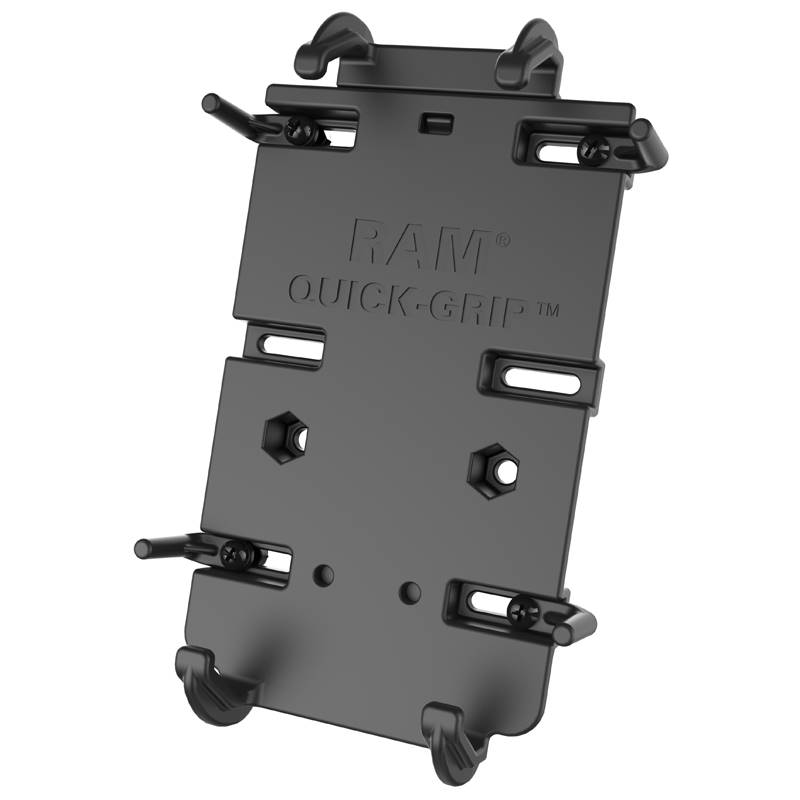

RAM-HOL-PD4U_RAM Quick-Grip XL Large Phone Holder

This version of the spring-loaded RAM Quick-Grip holder provides a secure fit for a variety of
large phones and other devices. The adjustable side keepers ensure that devices like GPS units and
Bluetooth speakers within the listed compatible dimensions will also fit in the holder. Included is
a set of two nuts and bolts to attach the cradle to any RAM components that contain the universal
AMPS hole pattern, including RAM diamond ball bases. Cradle Clamping Dimensions: Height Range:
5.75" - 7.25" Width Range: 2.625" - 3.625" Max Depth: 0.72"

HARDWARE INCLUDED
Assembly Hardware
(2) #8-32 x 1/2" Machine Screws
(2) #8-32 x 5/8" Machine Screws
(2) #8-32 x 3/4" Machine Screws
(2) #8-32 Nylock Nuts

HOLDER DIMENSIONS
Height Range: 5.75" - 8.25"
Width Range: 2.625" - 3.625"
Max Depth: .72"

HOLE PATTERN
2-Hole AMPS: 1.912"

MATERIALS
High strength composite

PACKAGING TYPE
Poly Bag

FEATURES:
Spring-loaded holder features adjustable side supports that provide a secure fit for a variety of
large phones and other devices

Easily insert and remove your phone with one hand

Compatible with RAM diamond ball bases for attaching to double socket arms and mounting bases

Backed by a lifetime warranty


WEIGHT
0.25 lbs.
