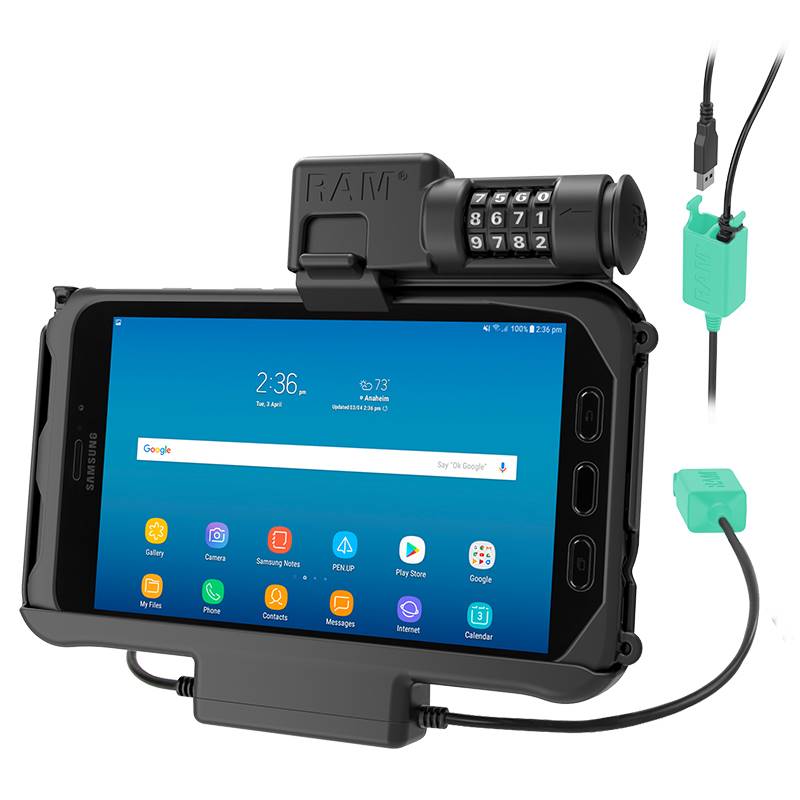

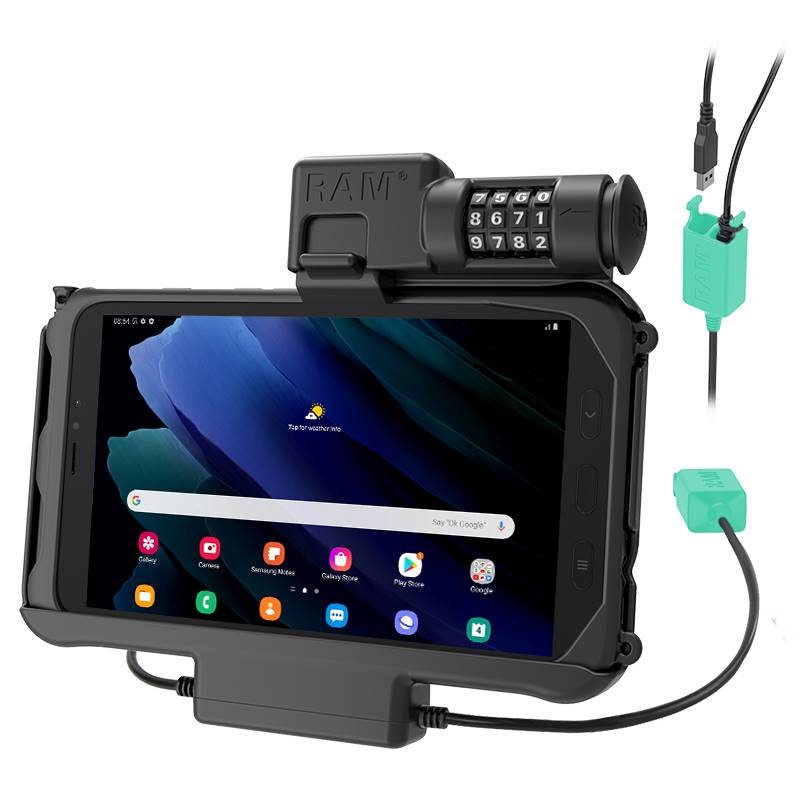

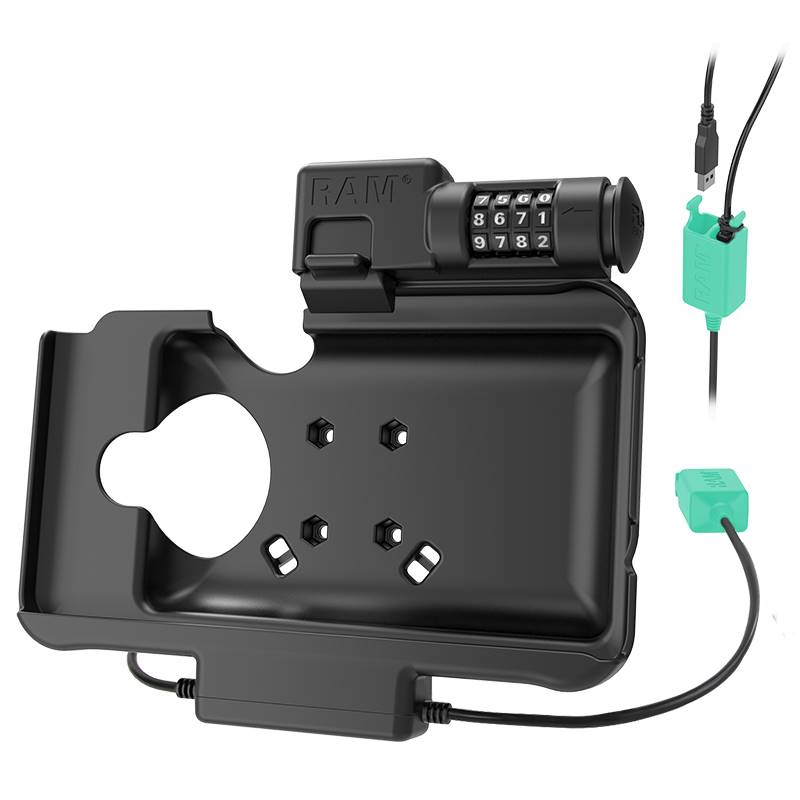

RAM Combo Locking Power + Dual USB

This RAM EZ-Roll’r power cradle for the Samsung
Tab Active3 and Tab Active2 has been designed to meet the demands of field workers in a variety of
applications including transportation, field sales, logistics, manufacturing, and much more. Power and
data sync capabilities are provided to the device through GDS pogo pins while taking
advantage of this cradle's dual USB-A port supporting up to two peripherals making this the ideal,
compact mounting solution for your mobile workstation. For security and theft deterrence, this powered
cradle features a key lock. Access to the stylus remains while the device is docked. Included is a set
of four nuts and bolts to connect the cradle to any RAM components containing the universal
4-hole AMPS pattern. This cradle also contains space in the back allowing for a GDS
Hand-Stand attachment so you can easily take your Tab Active2 from your vehicle, to your
person, to your desk with zero hassle.

FEATURES

Key locking powered cradle provides charging and data transfer capabilities for the Samsung Galaxy Tab Active3 and Tab Active2 through integrated pogo pin connector

Dual USB-A port supports up to two peripherals; mUSB port for power

Extra space in the back of the cradle allows for GDS Hand-Stand compatibility; contains 4-hole AMPS hole pattern for RAM ball components

Access to speakers, mics, and headphone jack remain while device is docked; allows access to the GDS shoulder strap loops on RAM Skin

Backed by a 3-year warranty

Hardware Included
Assembly Hardware (4) #8-32 x 5/8 INCHES Machine Screws (4) #8-32 Nylock Nuts
(1) GDS Genuine USB 2.0 Straight Cable (1) Optional Cable Clamp Housing (4) Large Cable Ties
(6) Small Cable Ties

Product Dimensions
Width: 9.25 INCHES Height: 7.75 INCHES Depth: 3 INCHES

Hole Pattern
4-Hole AMPS: 1.181 INCHES x 1.496 INCHES

Materials
High strength composite

Packaging Type
Poly Bag

Input Voltage
4.4VDC - 5.4VDC (USB power source dependent)

Output Voltage
4.4VDC-5.4VDC (USB power source dependent)

Power Output
500mA per USB port

Input Connector
mUSB 2.0 Female

Input Cable Length
.22 Meter

Output Connector
(2) USB 1.1 Type A

Output Cable Length
.22 Meter

Transfer Speed
12Mbps

Weight
1.25 lbs.

Warranty Status
3 year warranty

Additional Information
This product will not support IntelliSkin Mount using a round ball base (RAM-202U
recommended) Device speakers and mics exposed Device headphone jack exposed Zip tie
locations for cable retention Includes dual USB Type A cable and cable clamp with zip ties
mUSB female pigtail for power
