RAM-HOL-SAM61PD2U_RAM Power + Dual USB Dock for Tab Act

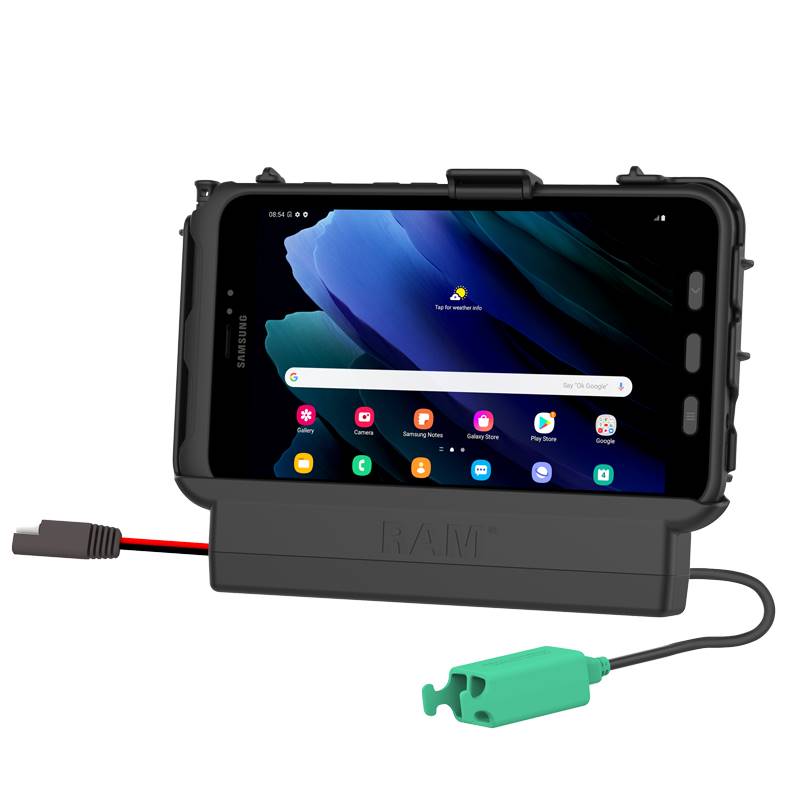

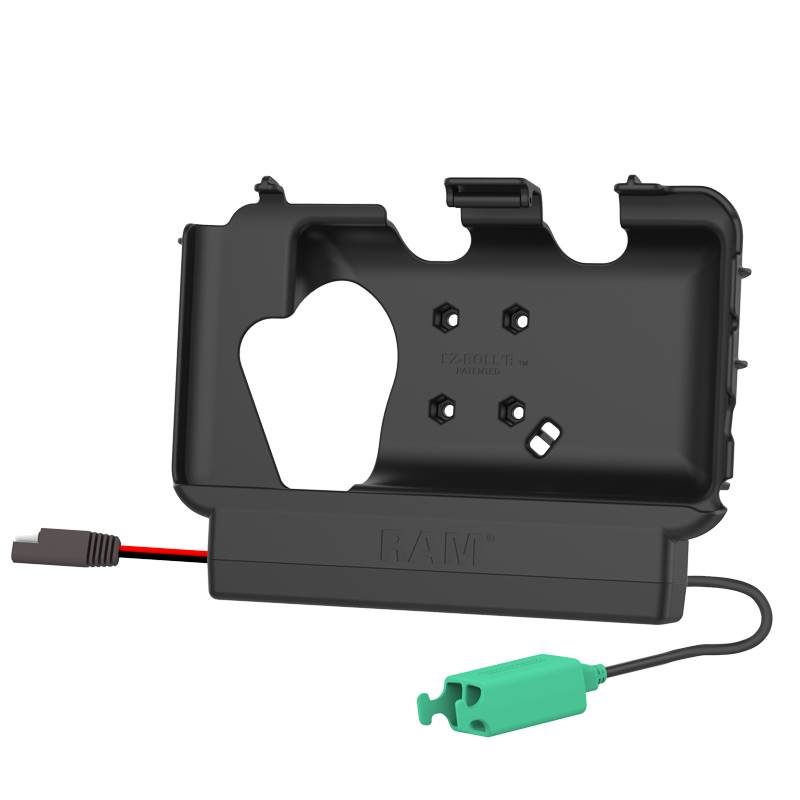

This powered dock for the Samsung Tab Active3 and Tab Active2 retains
all the same capabilities as the other RAM EZ-Roll'r powered docks for the Tab
Active3/2, with an added dual speaker integrated into the bottom of the dock for amplified audio while
on the road. Power and data sync capabilities are provided to the device through GDS pogo
pins while taking advantage of this cradle's USB-A port to support an additional peripheral making this

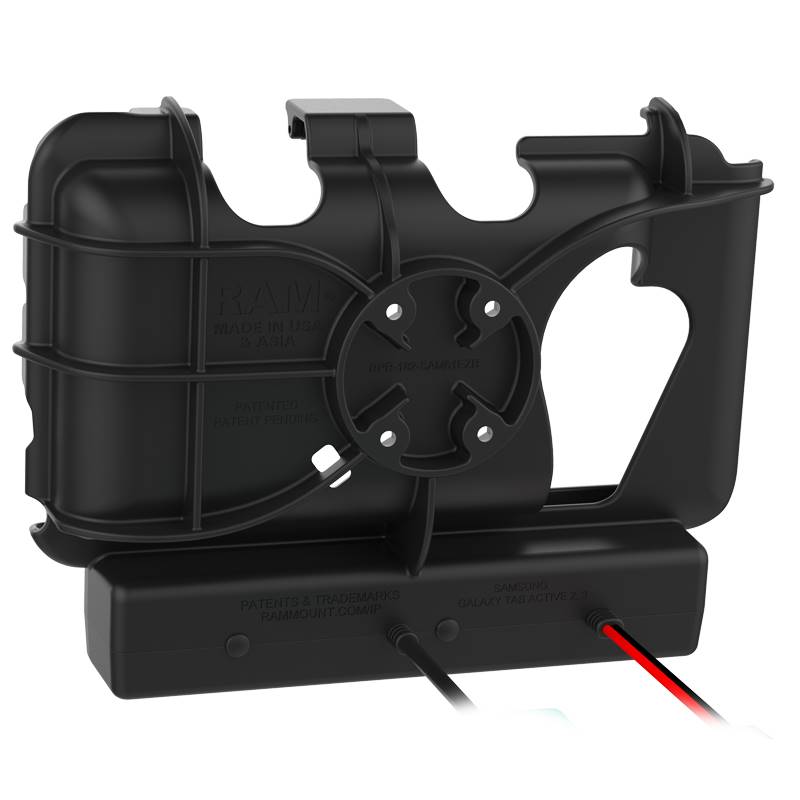

the ideal, compact mounting solution for your mobile workstation. Additional cavity in the back of the
dock allows room for the GDS Hand-Stand and shoulder strap accessories. Access to
the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the
dock to any RAM components containing the universal AMPS hole pattern.

FEATURES

RAM EZ-Roll'r form-fit powered dock for the Samsung Galaxy Tab Active3 and Tab Active2 provides charging and connects one additional USB peripheral through an integrated pogo pin connector

Integrated dual speakers on the bottom of the dock for amplified audio

Access to speakers, mics, NFC reader and headphone jack remain while device is docked

Compatible with B and C size RAM 4-hole AMPS pattern bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability

Backed by a 3-year warranty

Hardware Included
(4) #8-32 x 5/8 INCHES Machine Screws (4) #8-32 Nylock Nuts (2) Large Cable Ties
(6) Small Cable Ties

Speaker Specifications
Max volume level: 103dB @ 100mm

Hole Pattern
4-Hole AMPS: 1.181 INCHES x 1.496 INCHES

Materials
High strength composite

Packaging Type
Poly Bag

Input Voltage
10-28V DC

Input Connector
Power: Hardwire Charger with SAE Connector Data: (1) USB Type A Female

Input Cable Length
1.9 Meters

Output Connector
USB 1.1 Type A

Output Cable Length
.2 Meter

Transfer Speed
12Mbps

Compliance
SAE J-1113, Integrated Short Circuit Protection

Certifications
FCC, CE, RoHS, WEEE, e-Mark

Warranty Status
3 year warranty

Additional Information
This product will not support IntelliSkin. Mount using a round ball base (RAM-202U
recommended) Device speakers and mics exposed Device headphone jack exposed Zip tie
locations for cable retention Includes mUSB male to Type-A male cable and cable clamp with zip
ties mUSB female pigtail for power
