RAM Powered Dock for Samsung XCover Fie

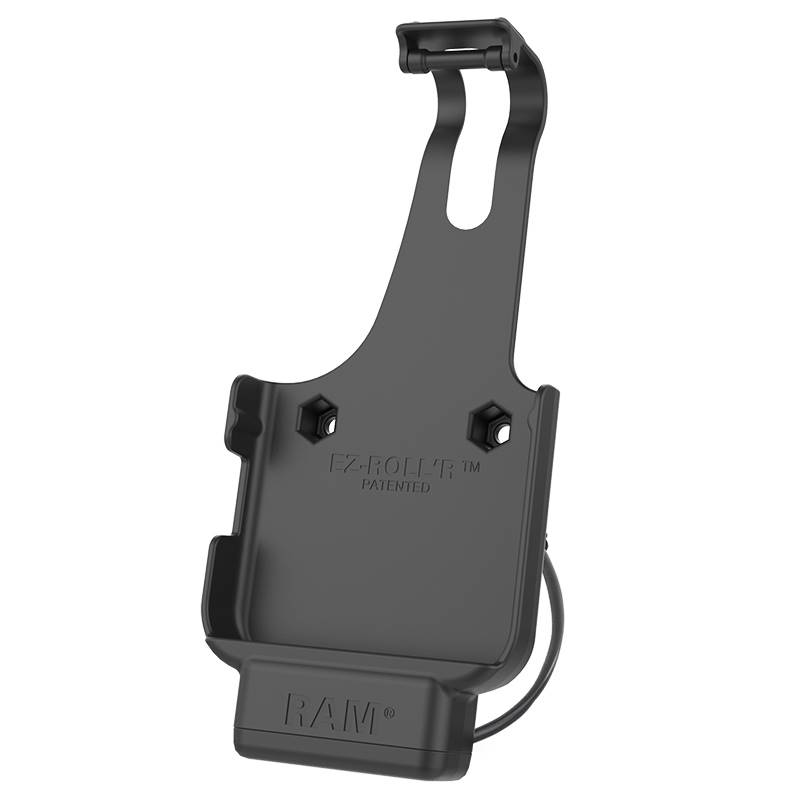

This RAM EZ-Roll’r powered cradle for the
Samsung Tab Active2 supports simultaneous data syncing, and has been designed to meet the demands of
field workers in a variety of applications including transportation, field sales, logistics,

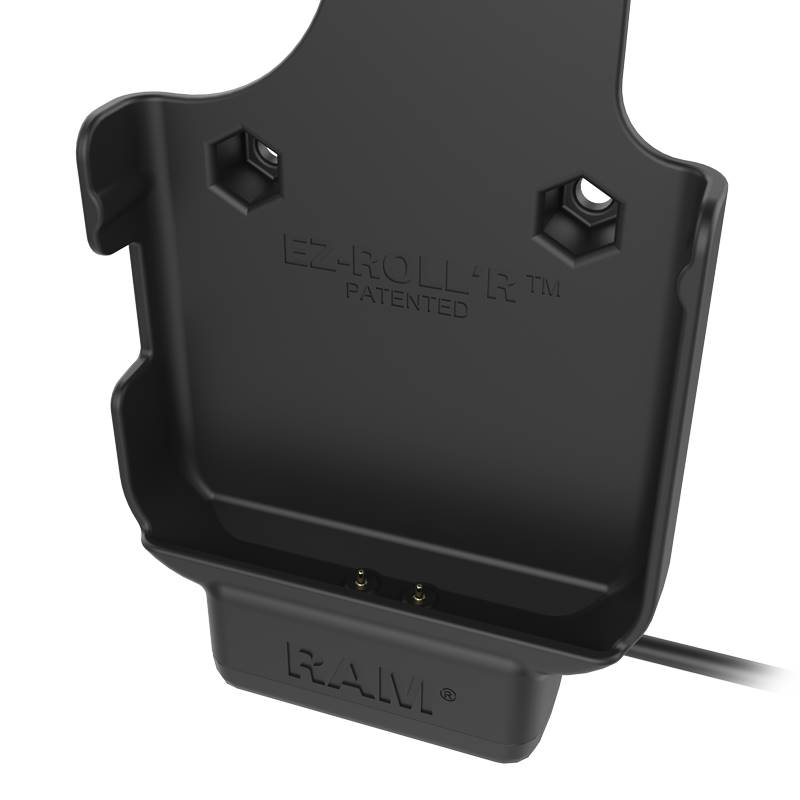

manufacturing, and much more. Power and data sync capabilities are provided to the device through seven
GDS pogo pins, and you can easily rotate the device for use in portrait or landscape mode.
For security and theft deterrence, the RAM-HOL-SAM7PCL2-V7B1U features a patent pending dial combination
lock. Unique features include access to the NFC reader while in the cradle for scanning NFC tags as well
as the stylus. Included is a set of four nuts and bolts to connect the cradle to any
RAM components containing the universal AMPS hole pattern. Also included is the
GDS modular hardwire charger, GDS genuine USB 2.0 straight cable, 200mm cable with
mUSB female connector for power, and 200mm cable with USB Type-A female connector to attach any USB 1.1
peripherals, 500mA max.

FEATURES

Dial combination locking mechanism for theft deterrence

Access for camera use, stylus and NFC reader while docked

Ultra-low cost with one handed operation

No need to lock the latch for shock and vibration applications

Works with the protective sleeve attached

Hardware Included
(4) #8-32 x 5/8 INCHES Machine Screws (4) #8-32 Nylock Nuts (1) 4 INCHES Cable Tie

Hole Pattern
4-Hole AMPS: 1.181 INCHES x 1.496 INCHES

Materials
High strength composite

Packaging Type
Poly Bag

Input Voltage
10V - 30V DC

Output Voltage
5-9VDC

Output Current
2.5A max

Input Connector
90° DC Plug

Input Cable Length
.21 Meter

Output Connector
USB 1.1 Type A

Output Cable Length
.21 Meter

Transfer Speed
12Mbps

Operating Temperature
-10°C to +70°C

Storage Temperature
-40°C to +70°C

Compliance
Over Voltage Protection Short Circuit Protection Reverse Polarity Protection
RoHS Compliance WEEE Compliance SAE J-1113-5 Load Dump (Transient Voltage) Moisture
Resistant

Certifications
CE Certification e-Mark Certification RCM Certification FCC Certification

Weight
1.1 lbs.

Warranty Status
3 year warranty

Additional Information
This product will not support the RAM Skin or IntelliSkin.
Type-A port does not support USB peripheral charging (USB 2.0 BC1.2)
