RAM EZ-Roll'r Locking Cradle for Sonim X

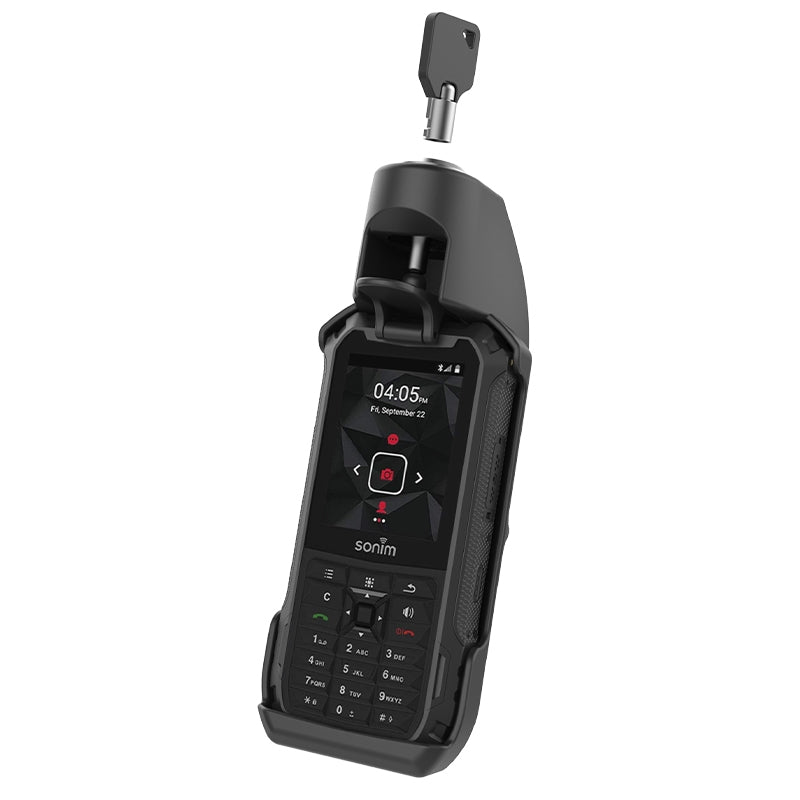

The RAM EZ-Roll'r Powered Cradle for Sonim XP5s secures your device in a form-fit holder while
keeping the entire screen and buttons visible and accessible. This powered cradle features two
integrated pogo pins that provide charging capabilities to the device through male USB Type A
connector. Single-handed operation makes it easy to dock and remove the Sonim XP5s�simply lift the
top lever and pull out the device, or place bottom portion of the device in first and push in to
lock in place. Compatible with RAM two-hole AMPS pattern bases and RAM microphone brackets, this
RAM form-fit cradle easily connects to B and C size ball mounts for use in a wide variety of
applications.

HARDWARE INCLUDED
(2) #8-32 x 1/2" Machine Screws
(2) #8-32 x 5/8" Machine Screws
(2) #8-32 x 3/4" Machine Screws
(2) #8-32 Nylock Nuts
(2) Keys

HOLE PATTERN
2-Hole AMPS: 1.912"

MATERIALS
High strength composite

PACKAGING TYPE
Poly Bag

COMPLIANCE
Made from ABS-V0 that conforms to UL 94-V0 flammability tests

WARRANTY STATUS
3 year warranty

FEATURES:
Spring-loaded, key locking RAM EZ-Roll�r style form-fit cradle for the Sonim XP5s provides a
perfect fit for your device without a case

Single-handed docking and removal of device

Compatible with B and C size RAM diamond bases for attaching a double socket arm; ball and socket
technology allows for near-infinite adjustability

Backed by a lifetime warranty
