RAM Tab-Tite Holder with Cup Ends for

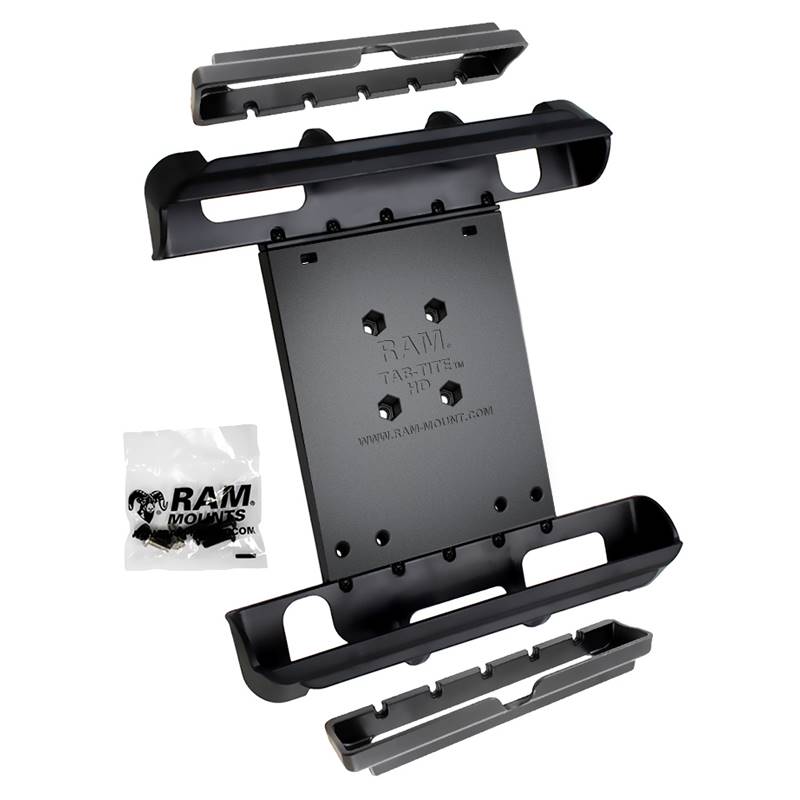

Get the most out of your tablet with the RAM Tab-Tite universal clamping cradle. With 2 sets of
interchangeable cup ends, ranging from different sizes and features, you can fit the cradle to your
tablet for a near custom fit. This spring loaded design makes it easy to load and unload your
tablet, along with keeping it secure while on the go. Cup ends are designed to optimize the
functionality of your tablet, allowing access to audio jacks, usb, power, and other ports, your
tablet can be used just as it was intended. Perfect for stationary or on the go applications, this
new RAM product is just what you need to get the most out of your mobile device. Included is a set
of four nuts and bolts to connect the cradle to any RAM components or mounts that contain the
universal AMPs hole pattern. Cradle Dimensions for the iPad mini: Maximum Width = 8.31" Height
Range = 8.5" to 10.5" Maximum Depth = 1.12"

HARDWARE INCLUDED
Assembly Hardware
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 x 1/2" Machine Screws
(4) #8-32 Nylock Nuts

HOLDER DIMENSIONS
Height Range: 8.5" - 10.5"
Width Range: 8.31" max
Depth Range: 1.12" max

HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"

MATERIALS
High strength composite

PACKAGING TYPE
Poly Bag

WEIGHT
0.63 lbs.
