RAM-HOL-TAB-SM2U_RAM Tab-Tite Universal Spring Loaded H

Now that you’ve got the right tablet for the job, you are going to need the right mounting system.

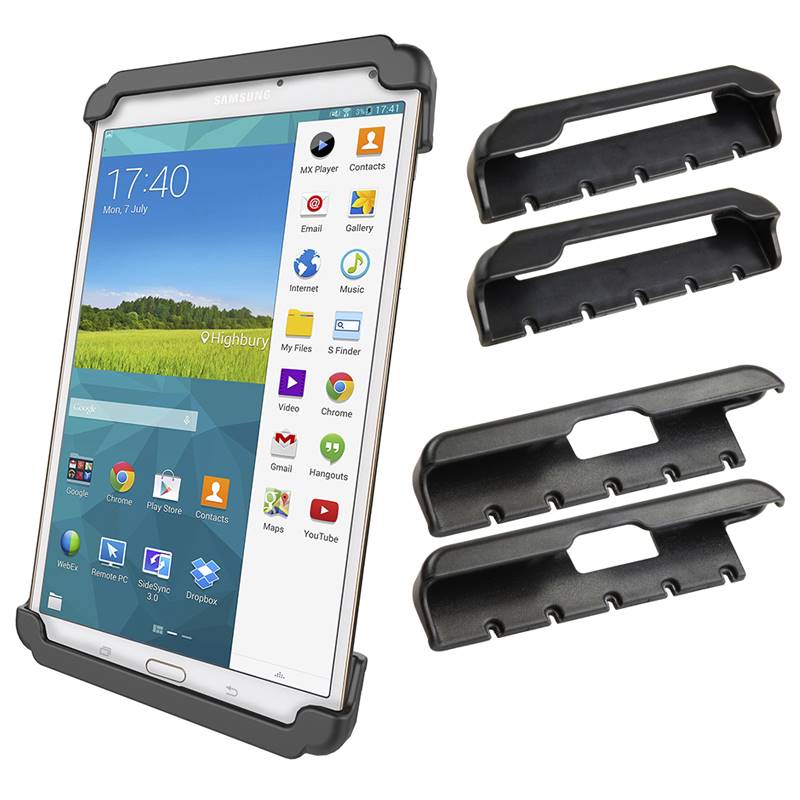

Get the most out of your tablet with the Universal RAM Tab-Tite cradle. With 3 sets of
interchangeable end cups, ranging from different sizes and features, you can fit the cradle to your
tablet for a near custom fit. This spring loaded design makes it easy to load and unload your
tablet, along with keeping it secure while on the go. The end cups are designed to optimize the
functionality of your tablet, allowing access to audio jacks, usb, power, and other ports. Perfect
for stationary or on the go applications, this new RAM product is just what you need to get the most
out of your mobile device. Included is a set of four nuts and bolts to connect the cradle to any RAM
components or mounts that contain the universal AMPs hole pattern. For off-road environments and
extreme use, we recommended the use of a tether to assist in retaining your device. The Tab-Tite
cradle is compatible with any tablet that will fit the dimensions listed below. It is important to
verify the dimensions of your tablet when determining the overall size.

HARDWARE INCLUDED
Assembly Hardware
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 x 1/2" Machine Screws
(4) #8-32 Nylock Nuts

HOLDER DIMENSIONS
Height Range: 8.08" - 11"
Width Range: 3.77" - 5.88"
Depth Range: .13" - .67"

HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"

MATERIALS
High strength composite

PACKAGING TYPE
Poly Bag

WEIGHT
0.9 lbs.
