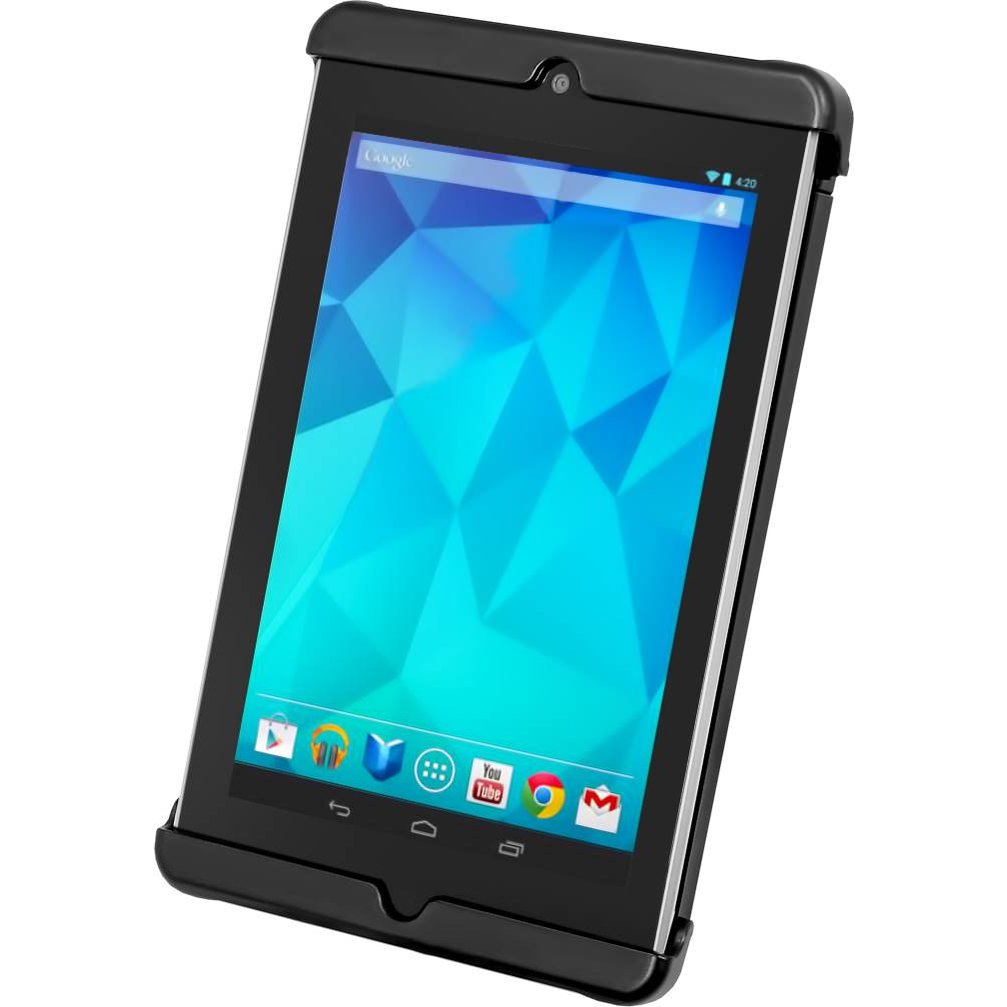

RAM Tab-Tite Universal Spring Loaded Hol

The RAM-HOL-TAB18U consists of a spring loaded back plate and custom support cups for the Google
Nexus 7 and the LG G Pad 7.0 WITH OR WITHOUT LIGHT DUTY SLEEVE. The spring loaded design makes it
easy to load and unload your tablet, along with keeping it secure while on the go. Interchangeable
cup ends are designed to optimize the functionality of your tablet, allowing access to audio jacks,
usb, power, and other ports, your tablet can be used just as it was intended. Perfect for stationary
or on the go applications, the RAM-HOL-TAB18U is just what you need to get the most out of your
tablet. Included is a set of four nuts and bolts to connect the cradle to any RAM components or
mounts that contain the universal AMPs hole pattern. For off-road environments and extreme use, we
recommended the use of a tether to assist in retaining your device. The Tab-Tite cradle is
compatible with any tablet that will fit the dimensions listed below. It is important to verify the
dimensions of your tablet when determining the overall size. Cradle Dimensions: Height: 7.5" to
10.125" Width: 3.75" to 4.7" Depth: 0.13" to 0.43" Note: Product consists of holder only. Case
not included.

HARDWARE INCLUDED
Assembly Hardware
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 x 1/2" Machine Screws
(4) #8-32 Nylock Nuts

HOLDER DIMENSIONS
Height Range: 7.5" - 10.125"
Width Range: 3.75" - 4.7"
Depth Range: .13" - .43"

HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"

MATERIALS
High strength composite

PACKAGING TYPE
Poly Bag

FEATURES:
Spring-loaded holder secures small tablets; interchangeable end cups allow you to modify the holder
when upgrading devices

Compatible with B and C size RAM round ball bases for attaching a double socket arm; ball and
socket technology allows for near-infinite adjustability

Made of high-strength composites for durability and reliability in the most demanding environments

Backed by a lifetime warranty


WEIGHT
0.4 lbs.
