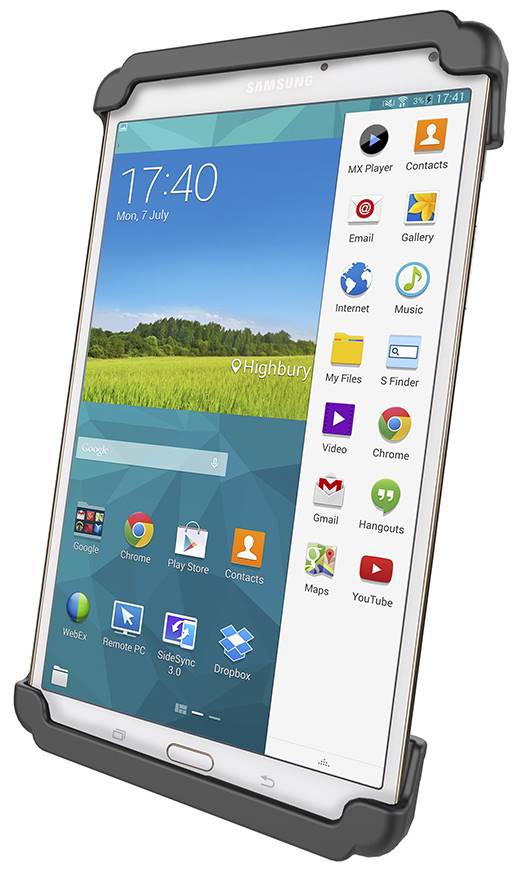

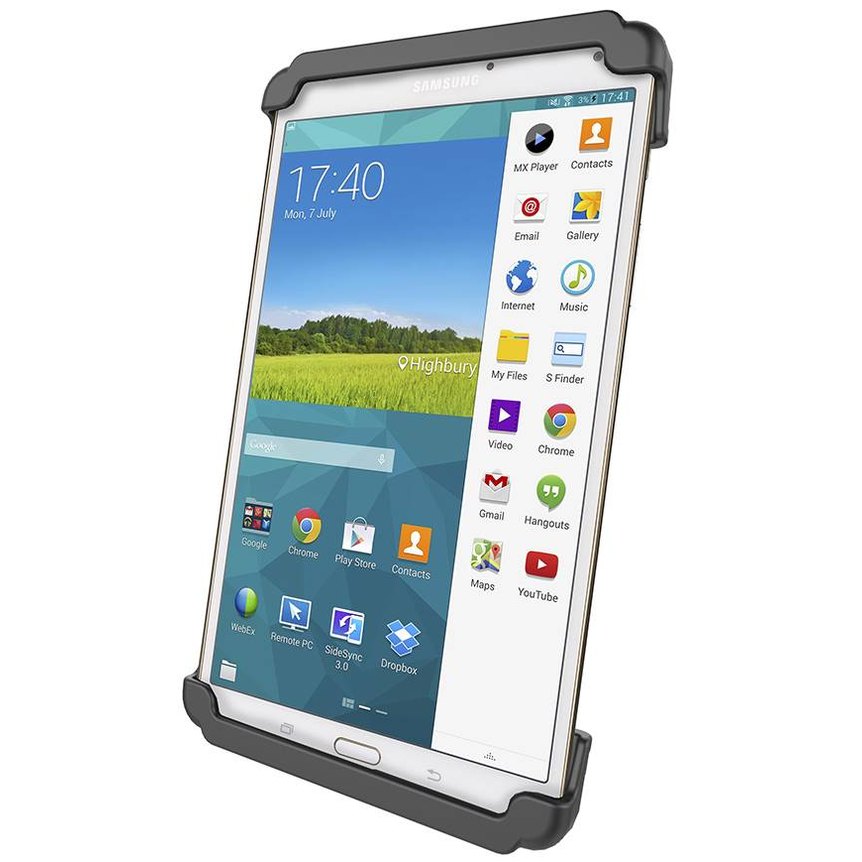

RAM-HOL-TAB24U_RAM Tab-Tite Spring Loaded Holder for 8"

The RAM Tab-Tite spring loaded, quick release cradle offers a secure fit with easy access to the
mounted tablet. The interchangeable cup ends are designed specifically for the Samsung Galaxy Tab 4
8.0, Tab S 8.4, Tab E 8.0 and Tab A 8.0 (2017). The spring loaded design makes it easy to insert and
remove your tablet, along with keeping it secure in mobile applications. The custom end cups are
designed to optimize the functionality of your tablet, enabling access to all ports and tablet
functions. The included back plate is interchangeable with various size support cups, making it
compatible with numerous tablet models. New detachable support cups are the only components needed
for purchase, attach to the back plate for support of your new tablet. Included is a set of four
nuts and bolts to connect the cradle to any RAM components or mounts that contain the universal AMPs
hole pattern. For off-road environments and extreme use, we recommended the use of a tether to
assist in retaining your device. The Tab-Tite cradle is compatible with any tablet that will fit
the dimensions listed below. It is important to verify the dimensions of your tablet when
determining the overall size. Cradle Dimensions: Length: 8.08" to 10.69" Width: 3.77" to 4.96"
Depth: 0.13" to 0.36"

HARDWARE INCLUDED
Assembly Hardware
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 x 1/2" Machine Screws
(4) #8-32 Nylock Nuts

HOLDER DIMENSIONS
Height Range: 8.08" - 10.69"
Width Range: 3.77" - 4.96"
Depth Range: .13" - .36"

HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"

MATERIALS
High strength composite

PACKAGING TYPE
Poly Bag

FEATURES:
Spring-loaded holder secures most 8" tablets; interchangeable end cups allow you to modify the
holder when upgrading devices

Compatible with B and C size RAM round ball bases for attaching a double socket arm; ball and
socket technology allows for near-infinite adjustability

Made of high-strength composites for durability and reliability in the most demanding environments

Backed by a lifetime warranty


WEIGHT
0.5 lbs.
