RAM-HOL-TABL-SM2U_RAM Tab-Lock Universal Spring Loaded

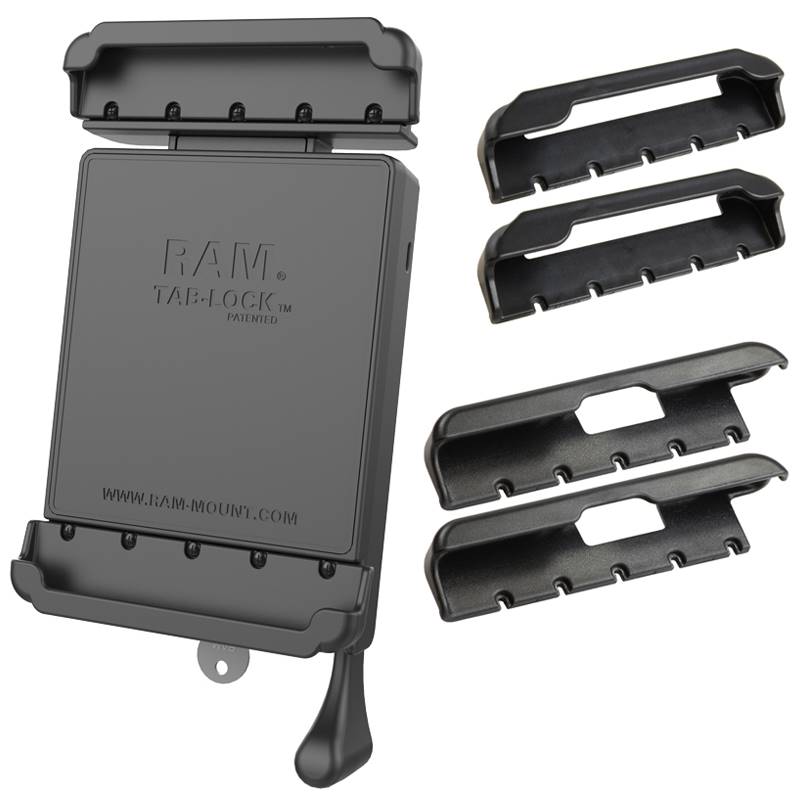

The RAM Tab-Lock is a spring-loaded, quick release holder with a keyed lock that offers a secure
fit with easy access to the mounted tablet. The keyed lock ensures theft deterrence and unwanted
tampering, while interchangeable end cups are designed to hold small 7”-8” tablets. The spring-
loaded design makes it easy to insert and remove your tablet, and keeps your device secure in a
range of applications. Included is a set of four nuts and bolts to connect the cradle to any RAM
components or mounts that contain the universal AMPS hole pattern.

HARDWARE INCLUDED
Assembly Hardware
(2) #8 x 5/8" Sheet Metal Screws
(2) M4 x 32mm Machine Screws
(2) M4 Nylock Nuts
(2) Keys

HOLDER DIMENSIONS
Height Range: 8.08" - 11"
Width Range: 3.77" - 5.88"
Depth Range: .13" - .67"

HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"

MATERIALS
High strength composite

PACKAGING TYPE
Poly Bag

FEATURES:
Spring-loaded, key locking holder secures small tablets; interchangeable end cups allow you to
modify the holder when upgrading devices

Compatible with B and C size RAM round ball bases for attaching a double socket arm; ball and
socket technology allows for near-infinite adjustability

Made of high-strength composites for durability and reliability in the most demanding environments

Backed by a lifetime warranty
