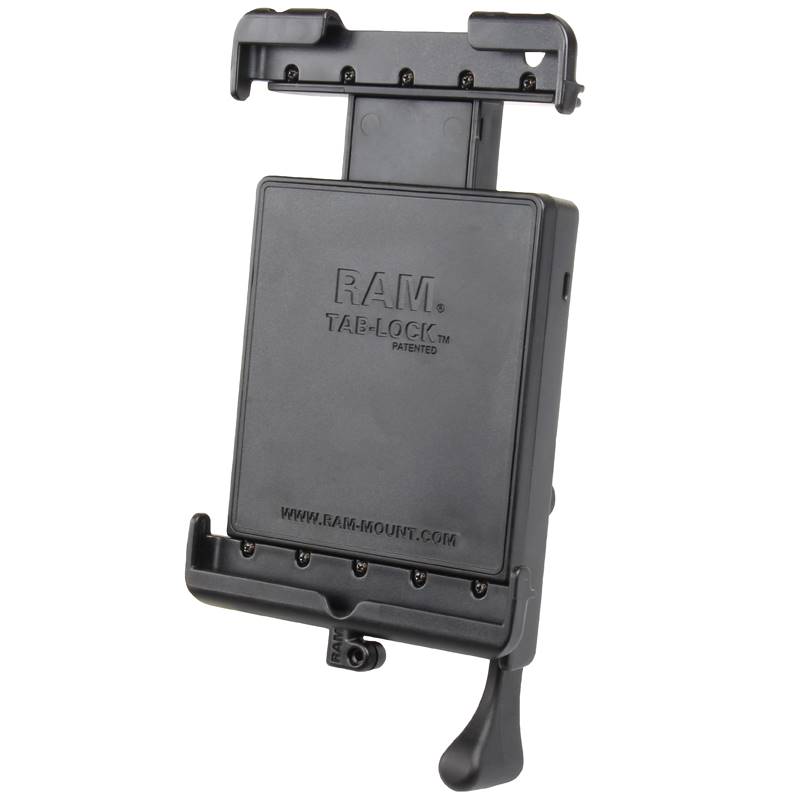

RAM Tab-Lock Tablet Holder for iPad min

The RAM-HOL-TABL11U consists of a spring loaded backplate, custom support cups and locking mechanism
for the iPad mini WITHOUT skin, sleeve or case. This spring loaded design makes it easy to load and
unload your iPad mini, along with keeping it secure while on the go. Cup ends are designed to
optimize the functionality of your tablet, allowing access to audio jacks, usb, power, and other
ports, your iPad mini can be used just as it was intended. Quickly lock the cradle, keeping your
iPad mini secure and safe from theft. Included is a set of four nuts and bolts to connect the cradle
to any RAM components or mounts that contain the universal AMPs hole pattern. The included back
plate is interchangeable with various size support cups, making it compatible with numerous tablet
models. New detachable support cups are the only components needed for purchase, attach to the back
plate for support of your new tablet. The TAB DOCK-N-LOCK cradle is compatible with any tablet
that will fit the dimensions listed below. It is important to verify the dimensions of your tablet
when determining the overall size.

HARDWARE INCLUDED
Assembly Hardware
(2) #8 x 5/8" Sheet Metal Screws
(2) M4 x 32mm Machine Screws
(2) M4 Nylock Nuts
(2) Keys
(1) #4-40 x 3/8" Machine Screw
(1) #4-40 Nylock Nut

HOLDER DIMENSIONS
Height Range: 6.8" - 10.55"
Width Range: 5.06" - 5.31"
Depth Range: .13" - .56"

HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"

MATERIALS
High strength composite

PACKAGING TYPE
Poly Bag

FEATURES:
Locking mechanism for theft deterrence

Support cups contain open slots to accomodate for tablets of various sizes

Back plate can support various size support cups

Spring loaded tension provides secure support and quick release for your tablet

Backed by a lifetime warranty


WEIGHT
1.15 lbs.
