RAM Tab-Lock Universal Spring Loaded Ho

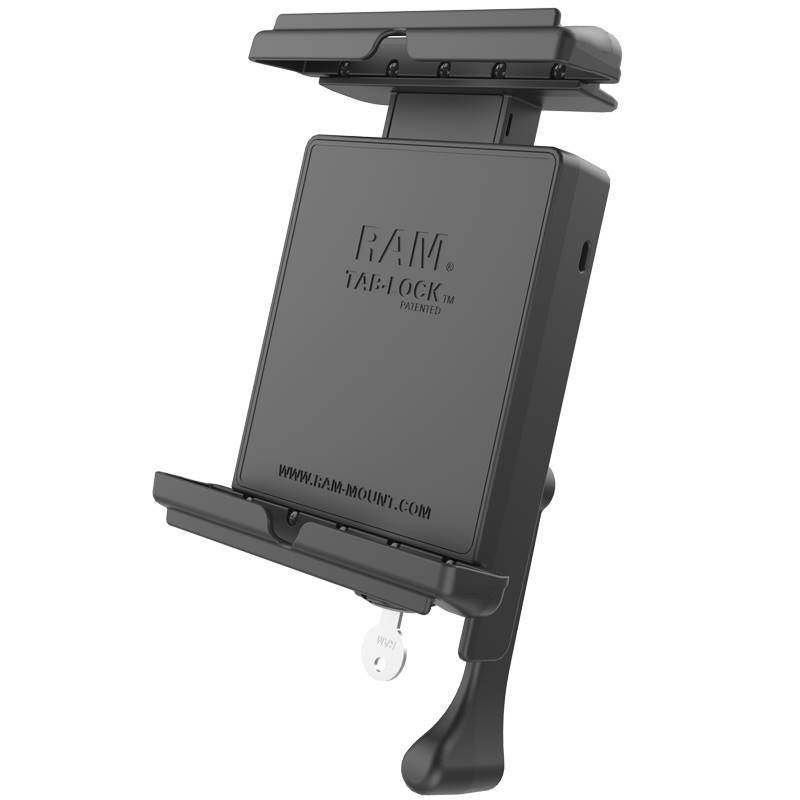

The RAM-HOL-TABL12U consists of a spring loaded backplate, custom support cups and locking mechanism
for the iPad mini WITH skin, sleeve or case. This spring loaded design makes it easy to load and
unload your iPad mini, along with keeping it secure while on the go. Cup ends are designed to
optimize the functionality of your tablet, allowing access to audio jacks, usb, power, and other
ports, your iPad mini can be used just as it was intended. Quickly lock the cradle, keeping your
iPad mini secure and safe from theft. Included is a set of four nuts and bolts to connect the cradle
to any RAM components or mounts that contain the universal AMPs hole pattern. The included back
plate is interchangeable with various size support cups, making it compatible with numerous tablet
models. New detachable support cups are the only components needed for purchase, attach to the back
plate for support of your new tablet. The Tab-Lock cradle is compatible with any tablet that will
fit the dimensions listed below. It is important to verify the dimensions of your tablet when
determining the overall size. Note: Product consists of holder only. Case not included.

HARDWARE INCLUDED
Assembly Hardware
(2) #8 x 5/8" Sheet Metal Screws
(2) M4 x 32mm Machine Screws
(2) M4 Nylock Nuts
(2) Keys

HOLDER DIMENSIONS
Height Range: 6.75" - 8.75"
Width Range: 5.06" - 5.68"
Depth Range: .13" - 1"

HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"

MATERIALS
High strength composite

PACKAGING TYPE
Poly Bag

ADDITIONAL INFORMATION
Note: This product is not compatible with the iPad mini 1-3 with LifeProof case.

FEATURES:
Spring-loaded, key locking holder secures most 8" tablets with cases; interchangeable end cups allow
you to modify the holder when upgrading devices

Compatible with B and C size RAM round ball bases for attaching a double socket arm; ball and
socket technology allows for near-infinite adjustability

Made of high-strength composites for durability and reliability in the most demanding environments

Backed by a lifetime warranty


WEIGHT
1.15 lbs.
