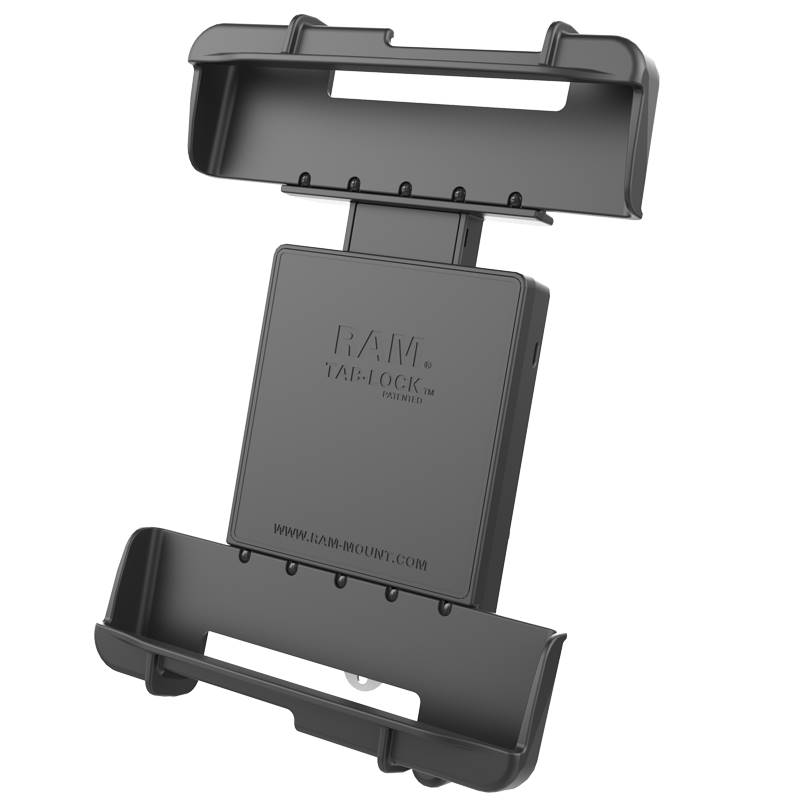

RAM Tab-Lock Holder for 10”-11” Rugged

The RAM-HOL-TABL19U consists of a spring loaded back plate, custom support cups and locking
mechanism. This spring loaded design makes it easy to load and unload your tablet, along with
keeping it secure while on the go. Cup ends are designed to optimize the functionality of your
tablet, allowing access to audio jacks, usb, power, and other ports, your tablet can be used just as
it was intended. Quickly lock the cradle, keeping your tablet secure and safe from theft. The
included back plate is interchangeable with various size support cups, making it compatible with
numerous tablet models. New detachable support cups are the only components needed for purchase,
attach to the back plate for support of your new tablet. Note: If your tablet has an extended
battery or handstrap integrated in the back, a set of risers (RAM-HOL-TAB-RISER1U or RAM-HOL-TAB-
RISER2U) may be required to offset the cups to accomodate the added thickness. The Tab-Lock cradle
is compatible with any tablet that will fit the dimensions listed below. It is important to verify
the dimensions of your tablet when determining the overall size.

HARDWARE INCLUDED
Assembly Hardware
(2) #8 x 5/8" Sheet Metal Screws
(2) M4 x 32mm Machine Screws
(2) M4 Nylock Nuts
(2) Keys

HOLDER DIMENSIONS
Height Range: 10.75" - 13.375"
Width Range: 6.5" - 7.75"
Depth Range: .13" - .93"

HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"

MATERIALS
High strength composite

PACKAGING TYPE
Poly Bag

FEATURES:
Locking mechanism for theft deterrence

Support cups contain open slots to accomodate for tablets of various sizes

Back plate can support various size support cups

Spring loaded tension provides secure support and quick release for your tablet

Backed by a lifetime warranty


WEIGHT
1.36 lbs.
