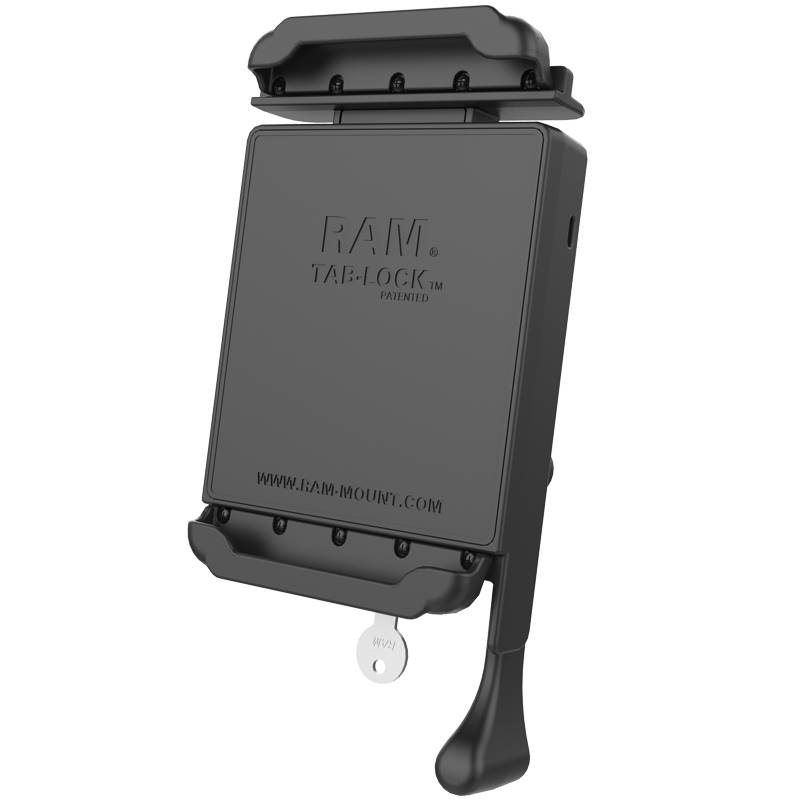

RAM Tab-Lock Tablet Holder for Samsung

The RAM Tab-Lock spring loaded, quick release cradle with a keyed lock offers a secure fit with
easy access to the mounted tablet. The keyed lock offers theft deterrence and unwanted tampering in
public settings. The interchangeable cup ends are designed specifically for the Samsung Galaxy Tab 4
7.0. The spring loaded design makes it easy to insert and remove your tablet, along with keeping it
secure in mobile applications. The custom end cups are designed to optimize the functionality of
your tablet, enabling access to all ports and tablet functions. The included back plate is
interchangeable with various size support cups, making it compatible with numerous tablet models.
New detachable support cups are the only components needed for purchase, attach to the back plate
for support of your new tablet. Included is a set of four nuts and bolts to connect the cradle to
any RAM components or mounts that contain the universal AMPs hole pattern. The Tab-Lock cradle is
compatible with any tablet that will fit the dimensions listed below. It is important to verify the
dimensions of your tablet when determining the overall size.

HARDWARE INCLUDED
Assembly Hardware
(2) #8 x 5/8" Sheet Metal Screws
(2) M4 x 32mm Machine Screws
(2) M4 Nylock Nuts
(2) Keys

HOLDER DIMENSIONS
Height Range: 7.38" - 9.99"
Width Range: 3" - 4.25"
Depth Range: .13" - .4"

HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"

MATERIALS
High strength composite

PACKAGING TYPE
Poly Bag

FEATURES:
Locking mechanism for theft deterrence

Support cups contain open slots to accomodate for tablets of various sizes

Back plate can support various size support cups

Spring loaded tension provides secure support and quick release for your tablet

Backed by a lifetime warranty


WEIGHT
1.31 lbs.
