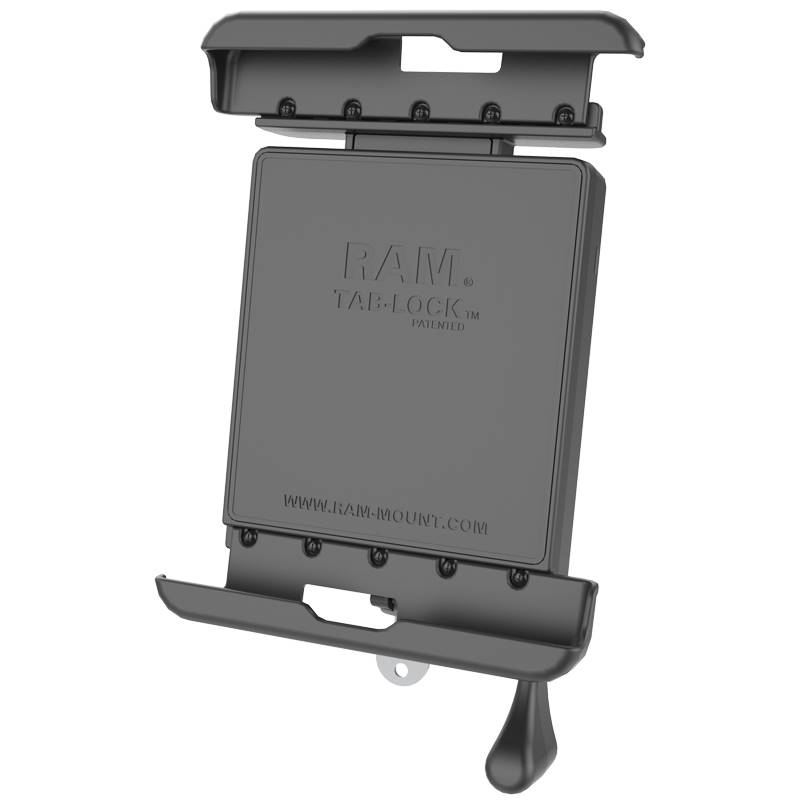

RAM Tab-LockLocking Holder for 8" Table

The RAM Tab-Lock spring loaded, quick release holder with a keyed lock offers a secure fit with
easy access to the mounted tablet. The keyed lock offers theft deterrence and unwanted tampering in
public settings. The interchangeable cup ends are designed specifically for the Samsung Galaxy Tab A
8.0, 8.0 with S Pen and Galaxy Tab S2 8.0 with Otterbox Defender case. The spring loaded design
makes it easy to insert and remove your tablet, along with keeping it secure in mobile applications.
The custom end cups are designed to optimize the functionality of your tablet, enabling access to
all ports and tablet functions. Included is a set of four nuts and bolts to connect the cradle to
any RAM components or mounts that contain the universal AMPs hole pattern. The Tab-Lock cradle is
compatible with any tablet that will fit the dimensions listed below. It is important to verify the
dimensions of your tablet when determining the overall size. Note: Product consists of holder only.
Case not included.

HARDWARE INCLUDED
Assembly Hardware
(2) #8 x 5/8" Sheet Metal Screws
(2) M4 x 32mm Machine Screws
(2) M4 Nylock Nuts
(2) Keys

HOLDER DIMENSIONS
Height Range: 8.25" - 11"
Width Range: 5" - 5.88"
Depth Range: .3" - .67"

HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"

MATERIALS
High strength composite

PACKAGING TYPE
Poly Bag

FEATURES:
Spring-loaded, key locking holder secures most 8" tablets with cases; interchangeable end cups allow
you to modify the holder when upgrading devices

Compatible with B and C size RAM round ball bases for attaching a double socket arm; ball and
socket technology allows for near-infinite adjustability

Made of high-strength composites for durability and reliability in the most demanding environments

Backed by a lifetime warranty


WEIGHT
1.15 lbs.
