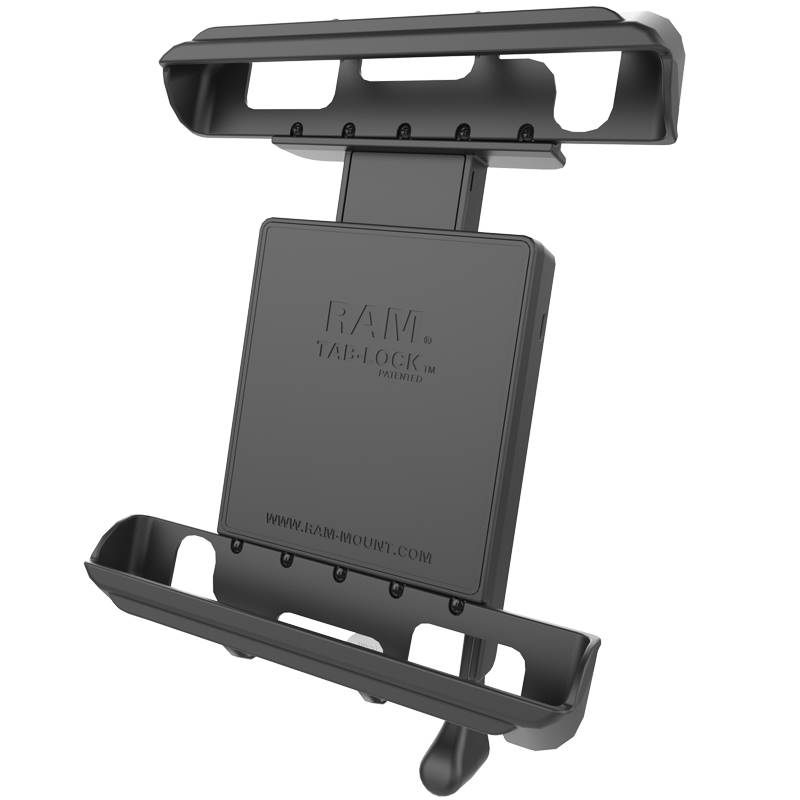

RAM-HOL-TABL8U_RAM Tab-Lock Tablet Holder for Apple iPa

The RAM-HOL-TABL8U consists of a spring loaded back plate, custom support cups and locking
mechanism. This spring loaded design makes it easy to load and unload your tablet, along with
keeping it secure while on the go. Cup ends are designed to optimize the functionality of your
tablet, allowing access to audio jacks, usb, power, and other ports, your tablet can be used just as
it was intended. Quickly lock the cradle, keeping your tablet secure and safe from theft. The
included back plate is interchangeable with various size support cups, making it compatible with
numerous tablet models. New detachable support cups are the only components needed for purchase,
attach to the back plate for support of your new tablet. Included is a set of four nuts and bolts to
connect the cradle to any RAM components or mounts that contain the universal AMPs hole pattern.
The included back plate is interchangeable with various size support cups, making it compatible with
numerous tablet models. New detachable support cups are the only components needed for purchase,
attach to the back plate for support of your new tablet. The Tab-Lock cradle is compatible with
any tablet that will fit the dimensions listed below. It is important to verify the dimensions of
your tablet when determining the overall size. Note: Product consists of holder only. Case not
included.

HARDWARE INCLUDED
Assembly Hardware
(2) #8 x 5/8" Sheet Metal Screws
(2) M4 x 32mm Machine Screws
(2) M4 Nylock Nuts
(2) Keys

HOLDER DIMENSIONS
Height Range: 9" - 11.5"
Width Range: 6.38" - 8.31"
Depth Range: .13" - 1.12"

HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"

MATERIALS
High strength composite

PACKAGING TYPE
Poly Bag

FEATURES:
Spring-loaded, key locking holder secures the iPad Pro 9.7 with case and more; interchangeable end
cups allow you to modify the holder when upgrading devices

Compatible with B and C size RAM round ball bases for attaching a double socket arm; ball and
socket technology allows for near-infinite adjustability

Made of high-strength composites for durability and reliability in the most demanding environments

Backed by a lifetime warranty


WEIGHT
1.25 lbs.
