GDS Powered Dock for Zebra ET5x 8.3" & 8

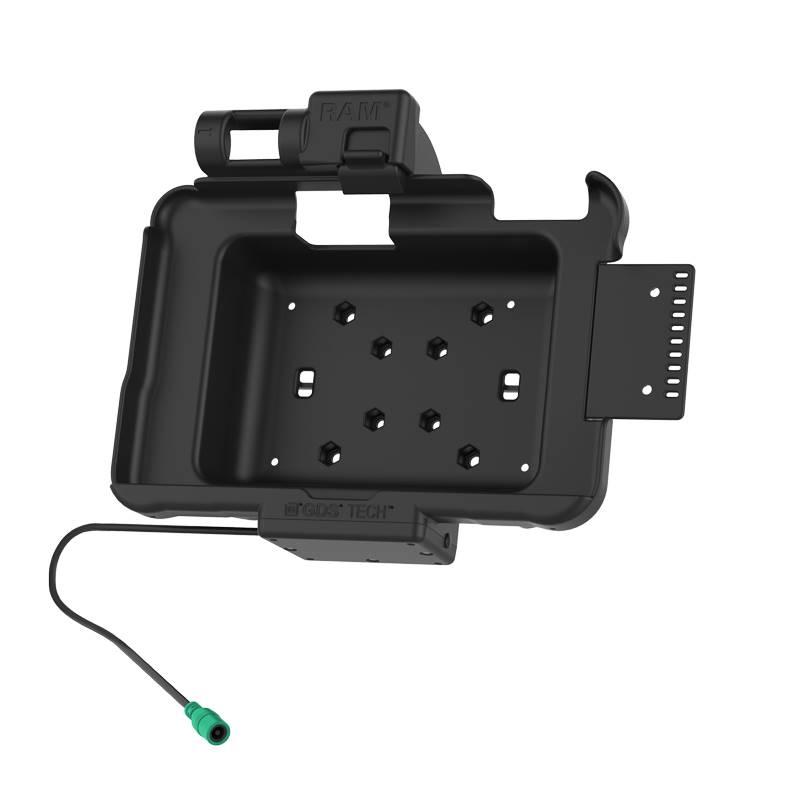

The GDS Vehicle Dock features a form-fit design specifically
for the Zebra ET5x 8.3 INCHES & 8.4 INCHES series tablets, including cutouts leaving all buttons and ports
exposed. The dock also allows the tablet's scanning function to work through the cutout on the back
which also accommodates tablet add-ons such as scanner, hand strap, and PowerPack battery. This vehicle
dock is compatible with C and D size RAM 4-hole AMPS and 75mm x 75mm VESA pattern bases for
attaching a double socket arm in order to complete your mounting solution. Take the solution a step
further by taking advantage of the built-in 2-hole mounting plate compatible with RAM 2-hole
diamond base for additional device mounting such as a phone, or other handheld device. An included
optional accessory bracket will allow you to connect RAM 2-hole diamond bases for device
mounting and features a cable management system.

FEATURES

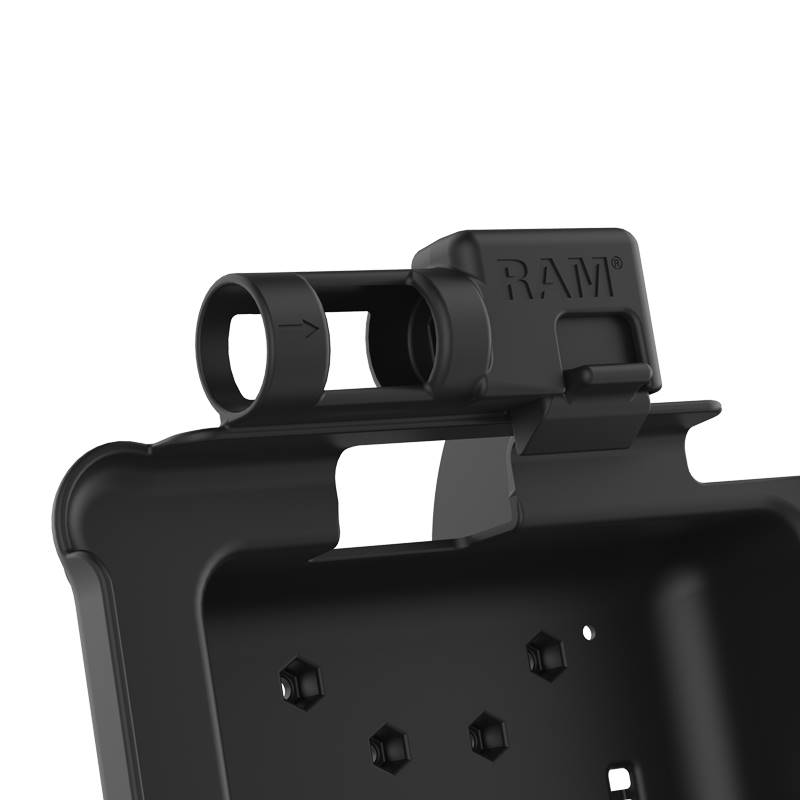

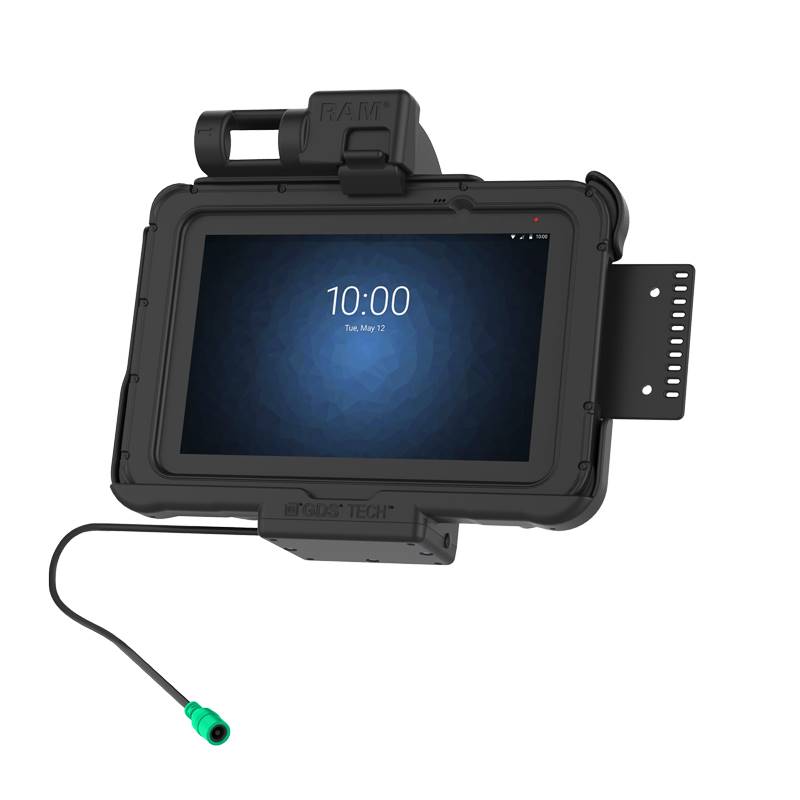

Spring-loaded form-fit holder perfectly secures the Zebra ET5x 8.3 INCHES & 8.4 INCHES series tablets with Rugged Frame

Compatible with C and D size RAM 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability

Built-in 2-hole mounting plate for additional device mounting such as a phone; compatible with RAM 2-hole diamond bases and accessory side bracket

Dock accommodates tablet add-ons such as scanner, hand strap, and PowerPack battery; tablet scanning works while tablet is docked

Backed by a lifetime warranty

Hardware Included
(1) Side bracket for accessory mounting and strain relief (4) #8-32 x 5/8” Machine
Screws (2) #8-32 x 1/2” Machine Screws (6) #8-32 Nylock Nuts (4) #10-24 x 5/8” Machine Screws
(4) #10-24 Nylock Nuts (6) Small Cable Ties

Hole Pattern
75 x 75mm VESA 4-Hole AMPS: 1.181 INCHES x 1.496 INCHES

Materials
High strength composite

Packaging Type
Poly Bag

Weight
1.19 lbs.
