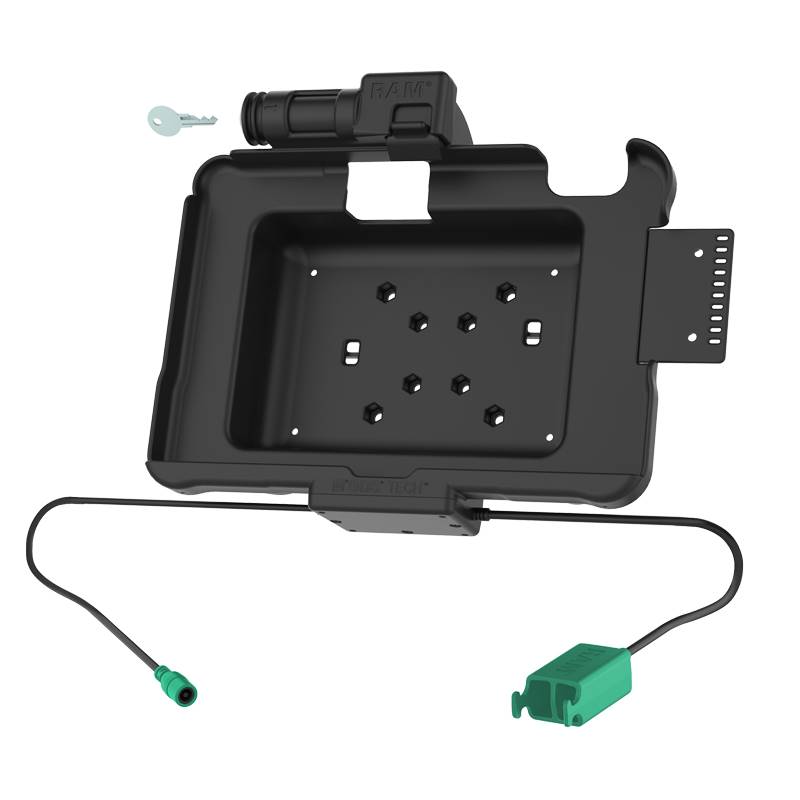

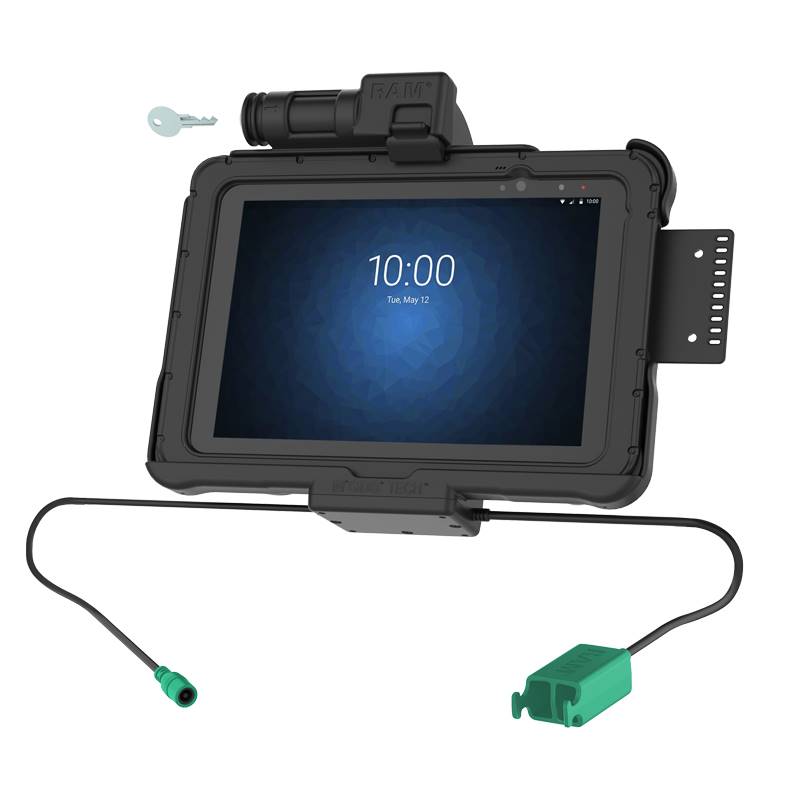

GDS Key Locking Power + Dual USB Doc

Featuring GDS Technology for data and charging
capabilities, the GDS Vehicle Dock for Zebra ET5x 10.1 INCHES series tablets allows you to connect
up to two desired peripherals while keeping the device charged through the pogo pin contacts when the
device is docked. Power is provided by connecting to the dock's 5.5mm DC power jack, while peripheral
support is provided by the built-in dual USB Type A cable. The dock also allows the tablet's scanning
function to work through the cutout on the back which also accommodates tablet add-ons such as scanner,
hand strap, and PowerPack battery. This vehicle dock is compatible with C and D size RAM
4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm in order to complete
your mounting solution. Take the solution a step further by taking advantage of the built-in 2-hole
mounting plate compatible with RAM 2-hole diamond base for additional device mounting such as
a phone, or other handheld device. An included optional accessory bracket will allow you to connect
RAM 2-hole diamond bases for device mounting and features a cable management system.

FEATURES

Spring-loaded powered dock featuring GDS Technology for data and charging capabilities for the Zebra ET5x 10.1 INCHES series tablets with Rugged Frame via DC 5.5mm power jack and dual USB Type A connector for adding up to 2 peripherals

When connected to a power source, integrated pogo pins provide power to the device as well as peripheral connectivity while docked; Dock accommodates tablet add-ons such as scanner, hand strap, and PowerPack battery; tablet scanning works while tablet is docked

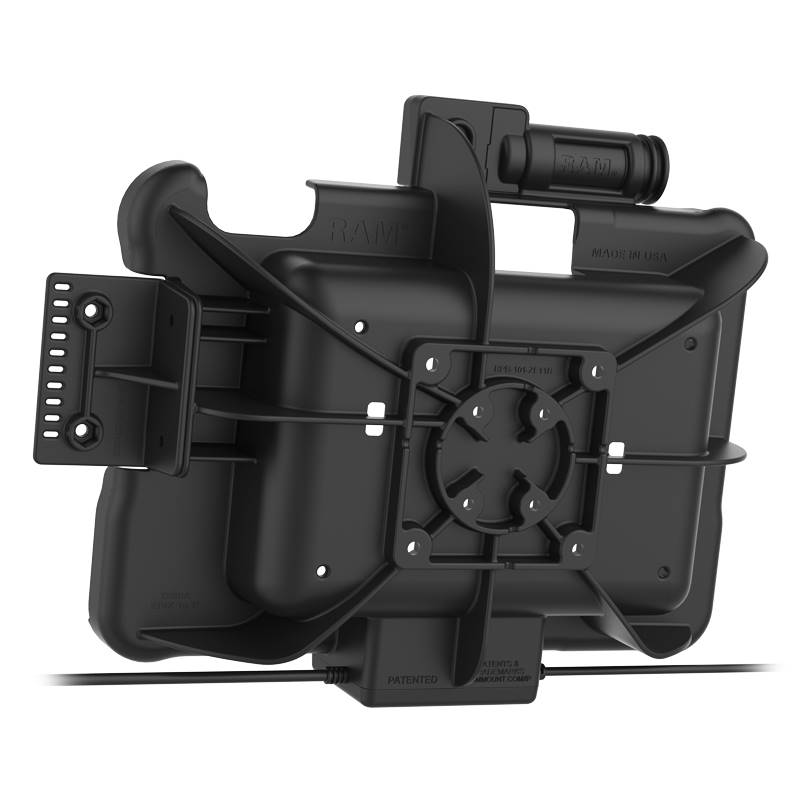

Compatible with C and D size RAM 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability

Built-in 2-hole mounting plate for additional device mounting such as a phone; compatible with RAM 2-hole diamond bases and accessory side bracket

Backed by a 3-year warranty

Hardware Included
(1) Side bracket for accessory mounting and strain relief (4) #8-32 x 5/8” Machine
Screws (2) #8-32 x 1/2” Machine Screws (6) #8-32 Nylock Nuts (4) #10-24 x 5/8” Machine Screws
(4) #10-24 Nylock Nuts (6) Small Cable Ties (2) Large Cable Ties

Hole Pattern
75 x 75mm VESA 4-Hole AMPS: 1.181 INCHES x 1.496 INCHES

Materials
High strength composite

Packaging Type
Poly Bag

Input Connector
5.5mm DC Connector

Output Connector
(2) USB 2.0 Type A

Transfer Speed
12Mbps

Weight
1.85 lbs.

Warranty Status
3 year warranty
