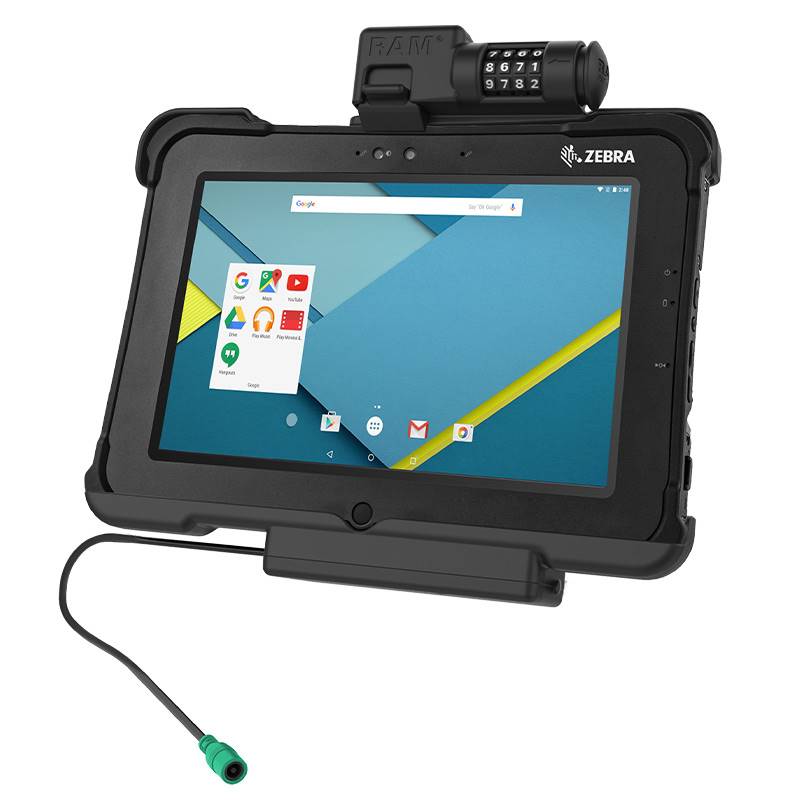

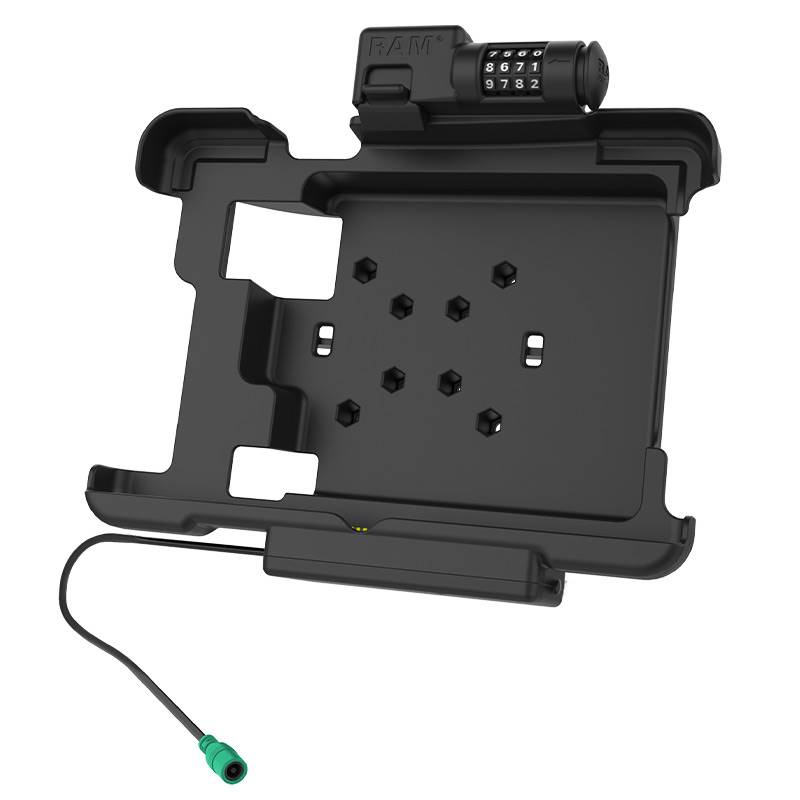

GDS Combo Locking Powered Dock for Zeb

Featuring GDS Technology for data and charging
capabilities and a combination lock for theft deterrence, the GDS Vehicle Dock for the Zebra
XSLATE L10 allows you to connect up to two desired peripherals while keeping the device charged through
the pogo pin contacts when the device is docked. Power is provided by connecting to the dock's 5.5mm DC
power jack, while peripheral support is provided by the built-in dual USB Type A cable. The dock also
allows the tablet's scanning function to work through the cutout on the back which also accommodates
tablet add-ons such as scanner, hand strap, kickstand and extended battery bracket. This vehicle dock is

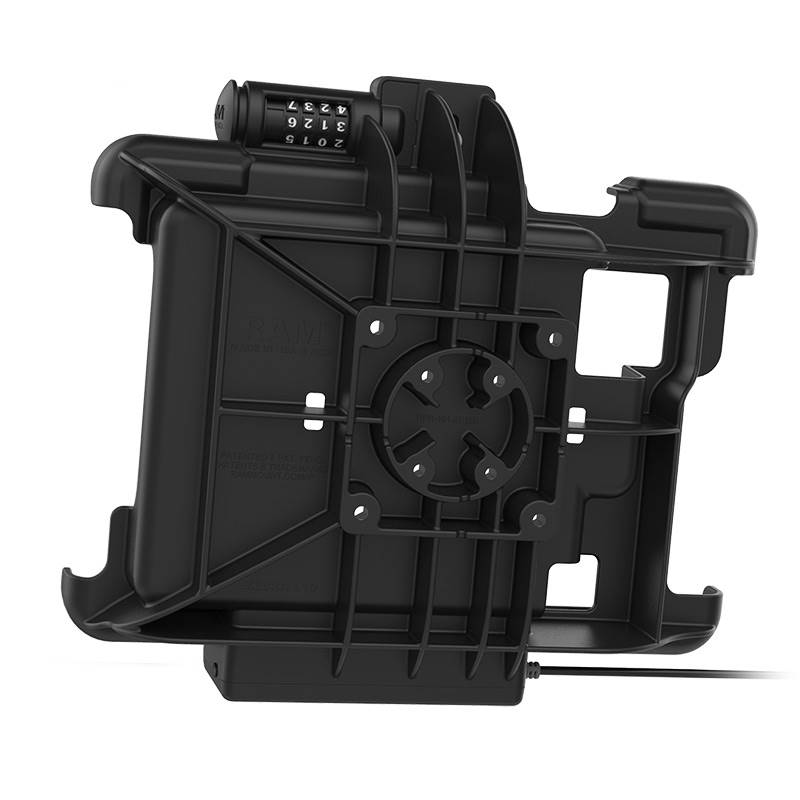

compatible with C and D size RAM 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching
a double socket arm in order to complete your mounting solution. Take the solution a step further by
taking advantage of the built-in 2-hole mounting plate compatible with RAM 2-hole diamond
base for additional device mounting such as a phone, or other handheld device. An included optional
accessory bracket will allow you to connect RAM 2-hole diamond bases for device mounting and
features a cable management system.

FEATURES

Combination locking powered dock featuring GDS Technology for data and charging capabilities for the Zebra XSLATE L10 via DC 5.5mm power jack and dual USB Type A connector for adding up to 2 peripherals

When connected to a power source, integrated pogo pins provide power to the device while docked; Dock accommodates tablet add-ons such as scanner, hand strap, kickstand and extended battery bracket; tablet scanning works while tablet is docked

Compatible with C and D size RAM 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability

Built-in 2-hole mounting plate for additional device mounting such as a phone; compatible with RAM 2-hole diamond bases and accessory side bracket

Backed by a 3-year warranty

Hardware Included
(1) Side bracket for accessory mounting and strain relief (4) #8-32 x 5/8” Machine
Screws (2) #8-32 x 1/2” Machine Screws (6) #8-32 Nylock Nuts (4) #10-24 x 5/8” Machine Screws
(4) #10-24 Nylock Nuts (6) Small Cable Ties (2) Large Cable Ties

Hole Pattern
75 x 75mm VESA 4-Hole AMPS: 1.181 INCHES x 1.496 INCHES

Materials
High strength composite

Packaging Type
Poly Bag

Input Connector
5.5mm DC Connector

Output Connector
(2) USB 2.0 Type A

Transfer Speed
12Mbps

Warranty Status
3 year warranty
