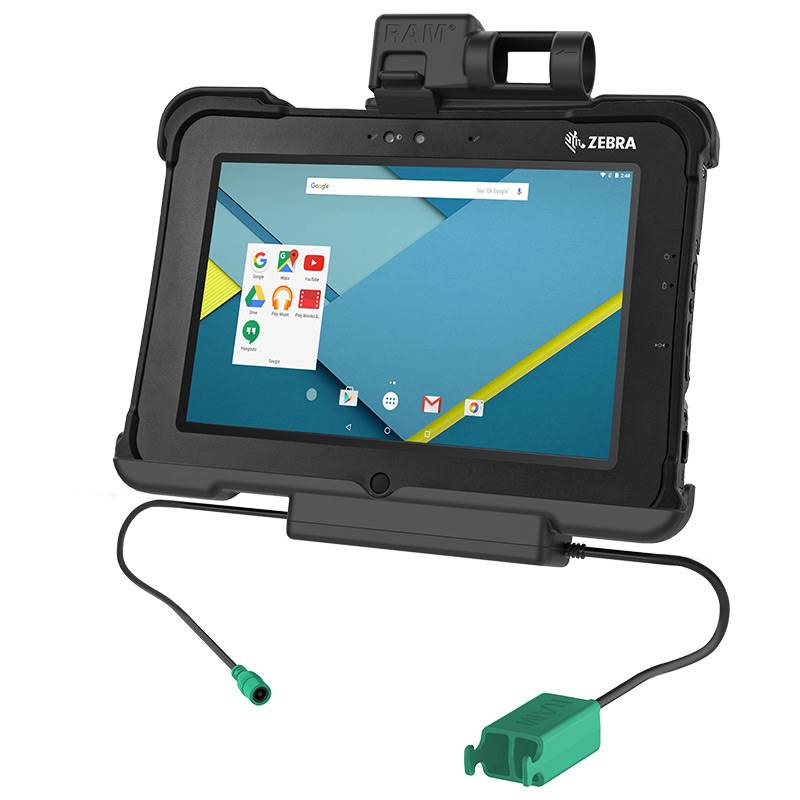

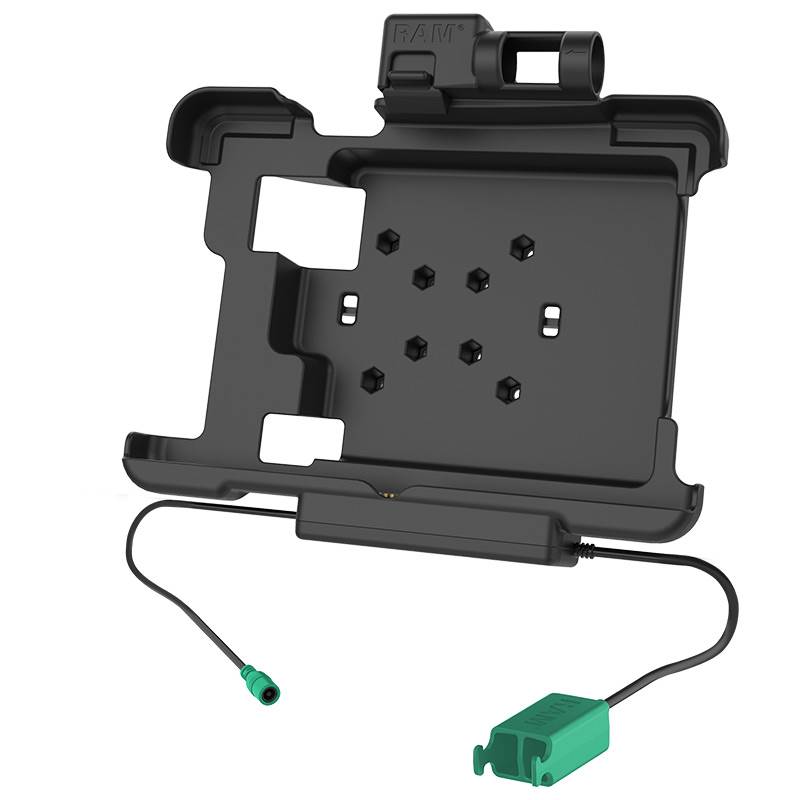

GDS Power + Dual USB Dock for Zebra XS

Featuring GDS Technology for data and charging

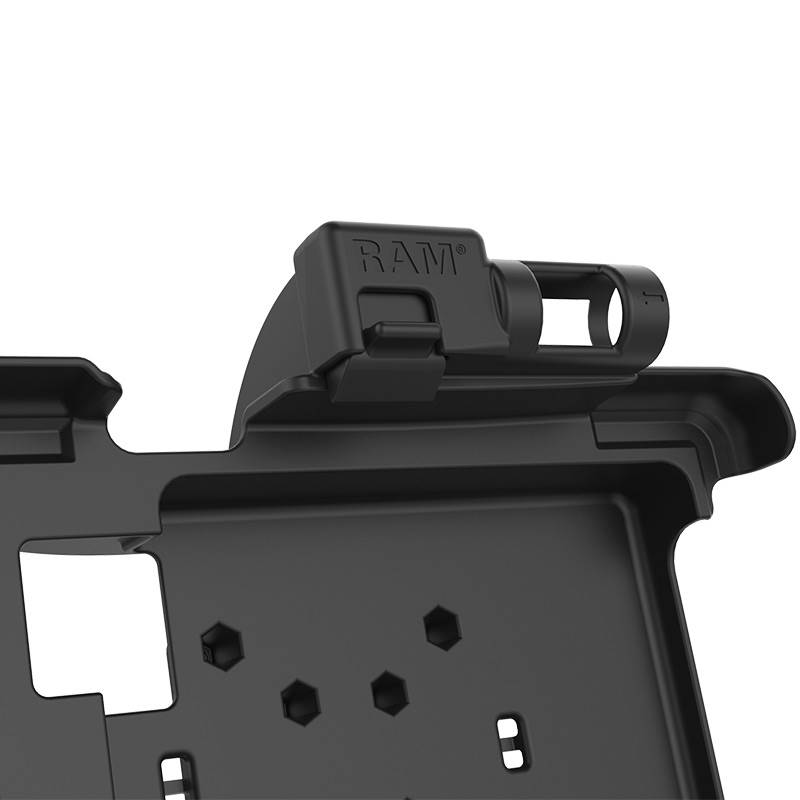

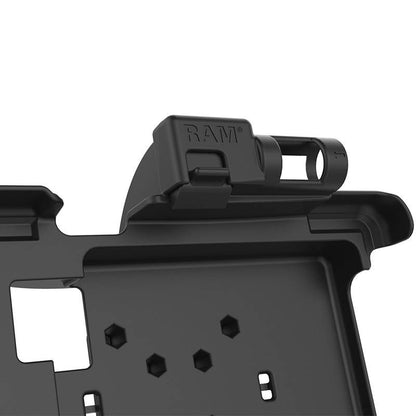

capabilities and a combination lock for theft deterrence, the GDS Vehicle Dock for the Zebra
XSLATE L10 allows you to connect a desired peripheral while keeping the device charged through the pogo
pin contacts when the device is docked. Power is provided by connecting to the dock's 5.5mm DC power
jack, while peripheral support is provided by the built-in USB Type A cable. The dock also allows the
tablets scanning function to work through the cutout on the back which also accommodates tablet add-ons
such as scanner, hand strap, kickstand and extended battery bracket. This vehicle dock is compatible
with C and D size RAM 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double
socket arm in order to complete your mounting solution. Take the solution a step further by taking
advantage of the built-in 2-hole mounting plate compatible with RAM 2-hole diamond base for
additional device mounting such as a phone, or other handheld device. An included optional accessory
bracket will allow you to connect RAM 2-hole diamond bases for device mounting and features a
cable management system.

FEATURES

Combination locking powered dock featuring GDS Technology for data and charging capabilities for the Zebra XSLATE L10 via DC 5.5mm power jack and USB Type A connector for adding a peripheral

When connected to a power source, integrated pogo pins provide power to the device while docked; Dock accommodates tablet add-ons such as scanner, hand strap, kickstand and extended battery bracket; tablet scanning works while tablet is docked

Compatible with C and D size RAM 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability

Built-in 2-hole mounting plate for additional device mounting such as a phone; compatible with RAM 2-hole diamond bases and accessory side bracket

Backed by a 3-year warranty

Hardware Included
(1) Side bracket for accessory mounting and strain relief (4) #8-32 x 5/8” Machine
Screws (2) #8-32 x 1/2” Machine Screws (6) #8-32 Nylock Nuts (4) #10-24 x 5/8” Machine Screws
(4) #10-24 Nylock Nuts (8) Small Cable Ties (2) Large Cable Ties (1) USB Type A Cable
Clamp Housing

Hole Pattern
75 x 75mm VESA 4-Hole AMPS: 1.181 INCHES x 1.496 INCHES

Materials
High strength composite

Packaging Type
Poly Bag

Input Connector
5.5mm DC Connector

Output Connector
USB 2.0 Type A

Transfer Speed
12Mbps

Warranty Status
3 year warranty
